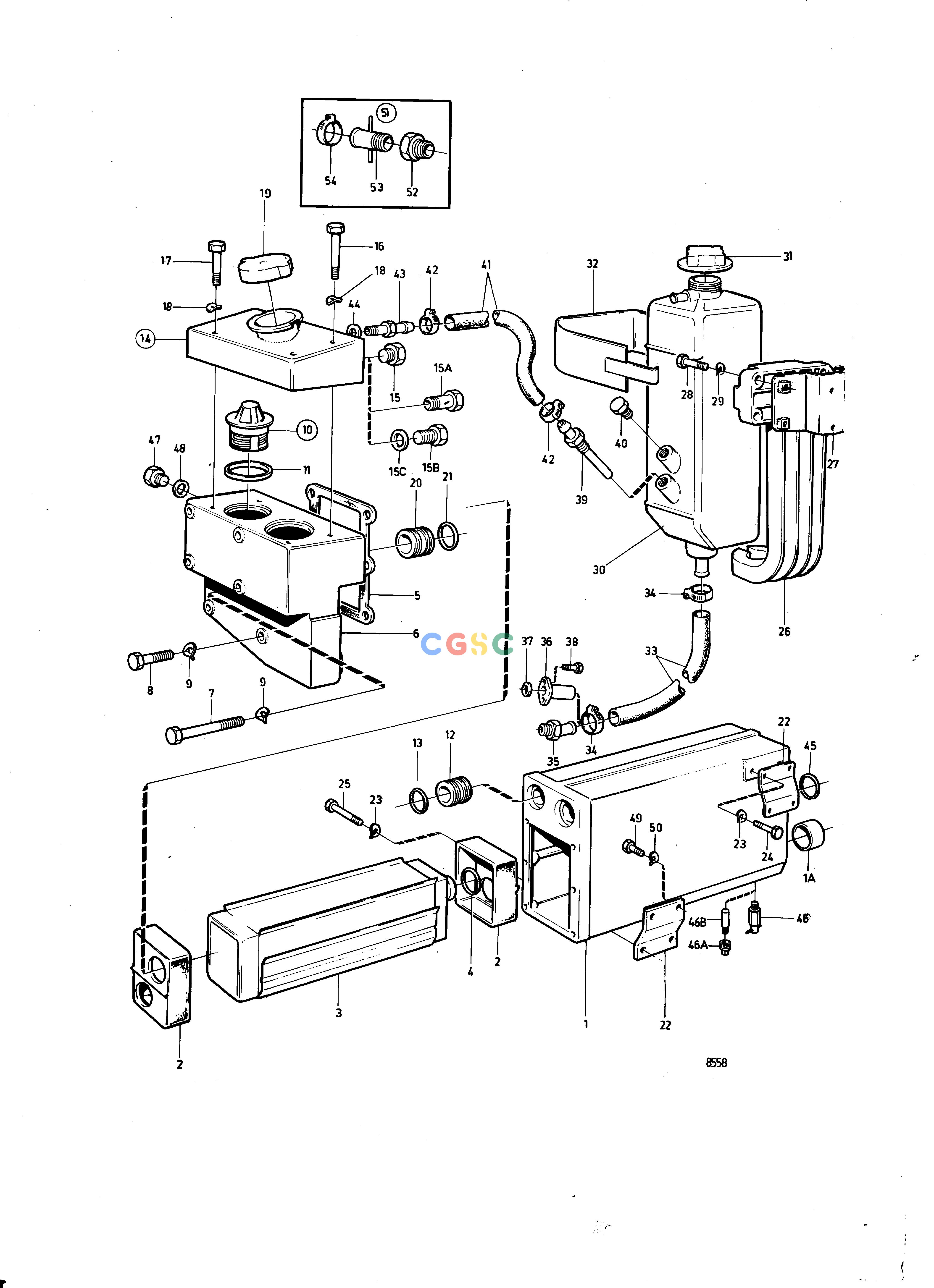

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | MO-25799 | |||
| 1. | 844271 | [1] | Housing | Repl by 846573 |
| 1. | 846573 | [1] | Housing | MO 25800- |
| 1A. | 846584 | [2] | Bushing | MO 25800- |
| 2. | 842695 | [2] | Gaiter | |
| 3. | 842693 | [1] | Insert | |
| 4. | 925062 | [2] | O-ring | |
| 5. | 842669 | [1] | Gasket | |
| 6. | 842683 | [1] | Thermostat housing | |
| 7. | 955309 | [4] | Hexagon screw | |
| 8. | 955306 | [2] | Hexagon screw | |
| 9. | 941907 | [6] | Spring washer | |
| 10. | 875788 | [1] | Thermostat kit | 70C |
| 10. | 875787 | [1] | Thermostat kit | 76C |
| 11. | 416033 | [2] | Sealing ring | (418361) |
| 12. | 842966 | [2] | Pipe seal | |
| 13. | 925063 | [4] | O-ring | |
| 14. | 842687 | [1] | Upper section | |
| 15. | 192154 | [1] | Plug | Early type |
| 15A. | 942806 | [1] | Hollow screw | Late type |
| 16. | 955304 | [2] | Hexagon screw | |
| 17. | 955302 | [2] | Hexagon screw | |
| 18. | 941907 | [4] | Spring washer | |
| 19. | 845587 | [1] | Filler cap | (843390) |
| 20. | 842965 | [2] | Pipe | |
| 21. | 925067 | [4] | O-ring | |
| 22. | 842608 | [1] | Bracket | Late type |
| 22. | 844132 | [1] | Bracket | Late type |
| 23. | 941908 | [4] | Spring washer | |
| 24. | 955317 | [2] | Hexagon screw | Late type, L=25mm |
| 25. | 955324 | [2] | Hexagon screw | MO-6918 L=60mm |
| 25. | 955326 | [2] | Hexagon screw | MO6919- L=70mm |
| 26. | 843260 | [1] | Bracket | |
| 27. | 844122 | [1] | Bracket | Used when expansion tank is mounted on thermostat housing |
| 28. | 955318 | [4] | Hexagon screw | Used when expansion tank is mounted on thermostat housing |
| 29. | 941908 | [4] | Spring washer | Used when expansion tank is mounted on thermostat housing |
| 30. | Replaced by 1pc 843759, 1pc 844624., MO-4256 | |||
| 30. | 843759 | [1] | Expansion tank | MO4257- |
| 31. | 829205 | [1] | Cap | MO-4256 |
| 31. | 844624 | [1] | Pressure cap | MO4257- |
| 32. | 843266 | [1] | Clamp | |
| 33. | 952969 | [1] | Hose | (943368) |
| 34. | 943472 | [2] | Hose clamp | |
| 35. | 941534 | [1] | Elbow nipple, angle nipple | Early type |
| 36. | 844416 | [1] | Coolant pipe | Late type |
| 37. | 418445 | [1] | Sealing ring, gasket | Late type |
| 38. | 955271 | [2] | Hexagon screw | Late type |
| 39. | 843247 | [1] | Connecting pipe | MO-4256 |
| 40. | 836268 | [2] | Plug | |
| 41. | 943366 | [1] | Rubber hose | |
| 42. | 945652 | [2] | Hose clamp | |
| 43. | 843273 | [1] | Hose coupling | Early type |
| 43. | 844419 | [1] | Hose coupling | Late type |
| 44. | 957173 | [1] | Gasket | |
| 45. | 949658 | [2] | O-ring | (925061) |
| 46. | 82745 | [1] | Shut-off cock | MO-13005 |
| 46A. | 800475 | [1] | Plug | Replaced by 1pc plug-838928 and 1pc zincelectrode-838929., MO13006- |
| 46. | 838928 | [1] | Plug | |
| 46B. | 838929 | [1] | Anode | |
| 47. | 944507 | [1] | Plug | MO7054- |
| 48. | 957184 | [1] | Gasket | MO7054- |
| 49. | 955317 | [2] | Hexagon screw | |
| 49. | 955322 | [1] | Hexagon screw | L=120mm |
| 49. | 955332 | [1] | Hexagon screw, screw | L=120mm, early type |
| 49. | 955333 | [1] | Hexagon screw, screw | L=130mm, late type |
| 50. | 941908 | [4] | Spring washer | |
| 51. | 845277 | [1] | Thermal outlet | |
| 52. | 16291 | [2] | Reduction nipple | |
| 53. | 365287 | [2] | Faucet | |
| 54. | 961666 | [2] | Hose clamp |
