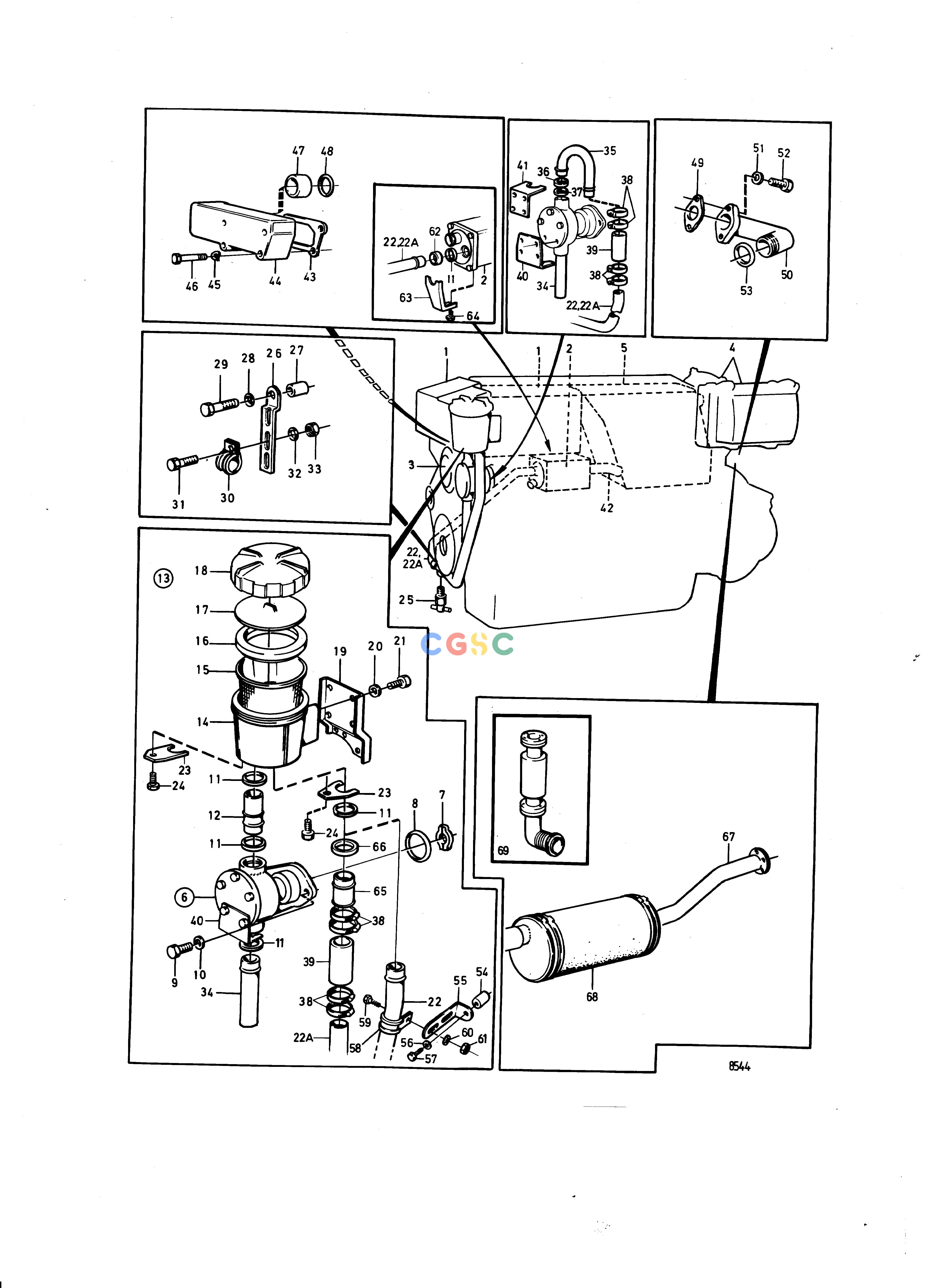

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7744060_039 | after- cooler and thermostat with installation comps | ||
| 1. | ||||
| 2. | 838969 | [1] | Oil cooler | (845349) MO 39858- |
| 3. | 7744060_040 | circulation pump with installation comps | ||
| 3. | ||||
| 4. | 7744060_048 | turbo and air filter with installation comps | ||
| 4. | ||||
| 5. | 7744060_054 | induction and exhaust manifold and cool. water overspill with installation comps | ||
| 5. | ||||
| 6. | 844971 | [1] | Sea water pump | MO-33190 |
| 6. | 838522 | [1] | Sea water pump | MO33191- |
| 7. | 845195 | [1] | Cross piece | |
| 8. | 947314 | [1] | O-ring | |
| 9. | 955295 | [2] | Hexagon screw | |
| 10. | 941907 | [2] | Spring washer | |
| 11. | 845354 | [5] | Sealing ring | |
| 12. | 845355 | [1] | Feed line | |
| 13. | 845337 | [1] | Sea water filter | MO-29495 |
| 14. | 845338 | [1] | Strainer housing | |
| 15. | 858081 | [1] | Strainer | |
| 16. | 838977 | [1] | Seal | (845329) |
| 17. | 22396396 | [1] | Pressure plate | |
| 18. | 845317 | [1] | Cover | |
| 19. | 845299 | [1] | Bracket | MO-29495 |
| 20. | 941907 | [4] | Spring washer | MO-29495 |
| 21. | 955293 | [4] | Hexagon screw | MO-29495 |
| 22. | 845356 | [1] | Coolant pipe | MO-35689 |
| 22A. | 838558 | [1] | Coolant pipe | (845356) MO35690- |
| 23. | 21212198 | [2] | Retainer | (84600) |
| 24. | 940199 | [2] | Hexagon screw | |
| 25. | 947893 | [1] | Shut-off cock | |
| 26. | 845999 | [1] | Bracket | |
| 27. | 843075 | [1] | Spacer sleeve | |
| 28. | 941907 | [1] | Spring washer | |
| 29. | 955300 | [1] | Hexagon screw | |
| 30. | 952641 | [1] | Clamp | |
| 31. | 955271 | [1] | Hexagon screw | |
| 32. | 955892 | [1] | Washer | |
| 33. | 955781 | [1] | Hexagon nut | |
| 34. | 845357 | [1] | Coolant pipe | |
| 35. | 846484 | [1] | Coolant pipe | For pipe 845356, MO-35689 |
| 35. | 838560 | [1] | Coolant pipe | For pipe 838558, MO-35690- |
| 36. | 838554 | [1] | Pipe retainer | For pipe 838560 |
| 37. | 845354 | [1] | Sealing ring | |
| 38. | 994562 | [4] | Hose clamp | |
| 39. | 952974 | [1] | Hose | L=100mm |
| 40. | 845961 | [1] | Lock brace | MO27606- |
| 41. | 845961 | [1] | Lock brace | For pipe 838560 |
| 42. | 952974 | [1] | Hose | |
| 43. | 1542187 | [1] | Gasket | |
| 44. | 842697 | [1] | Pipe elbow | |
| 45. | 941907 | [4] | Spring washer | |
| 46. | 955305 | [4] | Hexagon screw | |
| 47. | 842965 | [1] | Pipe | |
| 48. | 925067 | [2] | O-ring | |
| 49. | 843042 | [1] | Gasket | |
| 50. | 842614 | [1] | Tube | |
| 51. | 941906 | [2] | Spring washer | |
| 52. | 955275 | [2] | Hexagon screw | |
| 53. | 925065 | [1] | O-ring | |
| 54. | 842350 | [1] | Spacer sleeve | For pipe 845356 |
| 55. | 965561 | [1] | Bracket | For pipe 845356 |
| 56. | 941907 | [1] | Spring washer | For pipe 845356 |
| 57. | 955300 | [1] | Hexagon screw | For pipe 845356 |
| 58. | 952641 | [1] | Clamp | For pipe 845356 |
| 59. | 955271 | [1] | Hexagon screw | For pipe 845356 |
| 60. | 955892 | [1] | Washer | For pipe 845356 |
| 61. | 955781 | [1] | Hexagon nut | For pipe 845356 |
| 62. | 847017 | [1] | Pipe retainer | For pipe 838558 |
| 63. | 838557 | [1] | Brace | For pipe 838558 |
| 64. | 940132 | [1] | Hexagon screw | For pipe 838558 |
| 65. | 838559 | [1] | Hose connection | For pipe 838558 |
| 66. | 847017 | [1] | Pipe retainer | For pipe 838558 |
| 67. | ||||
| 68. | ||||
| 69. | See group 9 |
