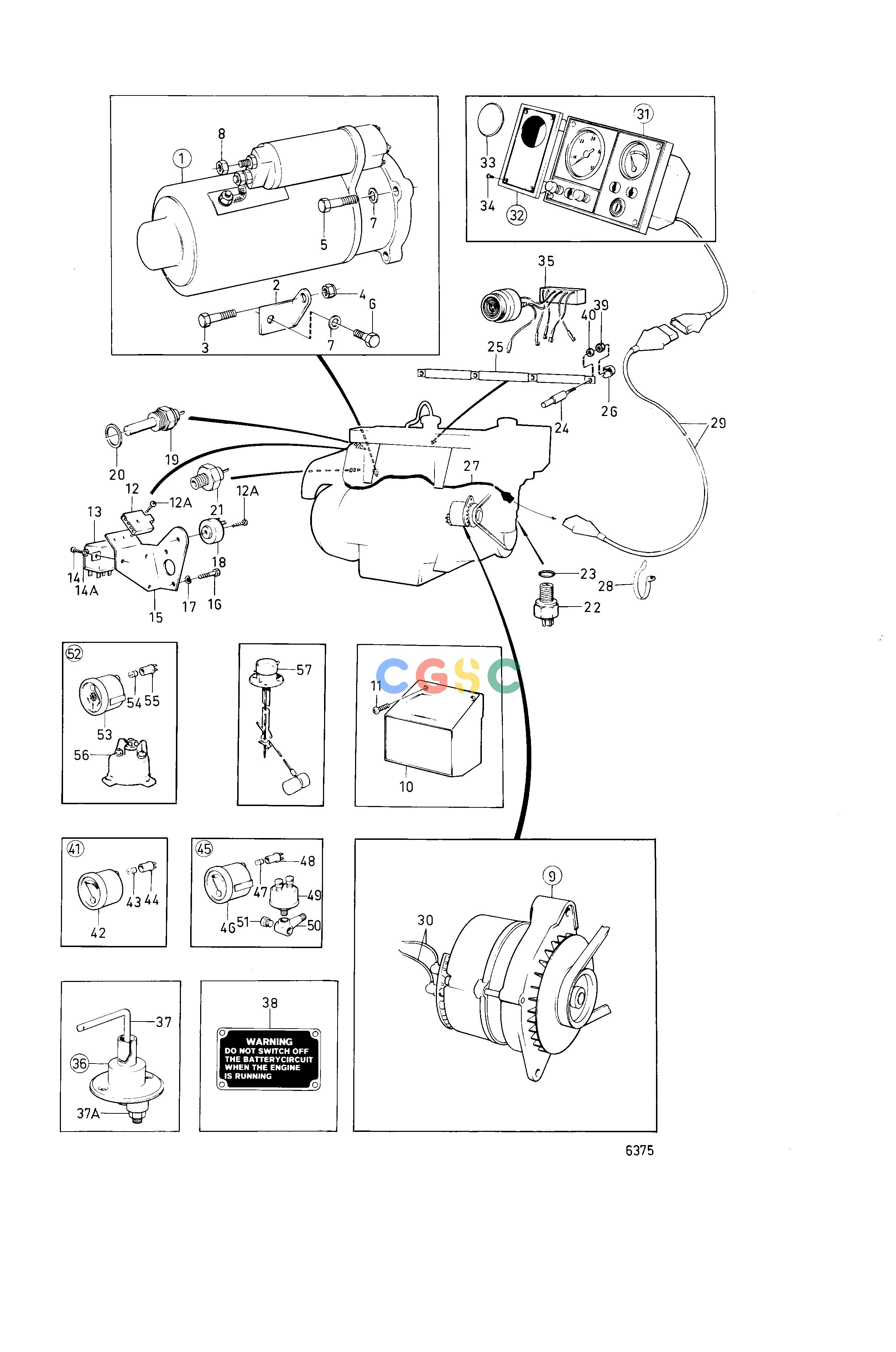

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 829712 | [1] | Starter motor, starter motor | 12V |
| 1. | 829649 | [1] | Starter motor, starter motor | 24V |
| 2. | 826770 | [1] | Bracket | |
| 3. | 955339 | [1] | Hexagon screw | |
| 4. | 963108 | [1] | Lock nut | |
| 5. | 955317 | [3] | Hexagon screw | |
| 6. | 955315 | [1] | Hexagon screw | |
| 7. | 960148 | [4] | Washer | |
| 8. | 955782 | [1] | Hexagon nut | |
| 8. | 955780 | [1] | Hexagon nut | |
| 9. | ||||
| 10. | 823234 | [1] | Relay, charging relay | 24V |
| 11. | 958236 | [3] | Cross recessed screw | 24V |
| 12. | 824823 | [1] | Fuse box | |
| 12A. | 831837 | [2] | Screw | MO-3130871/216681. |
| 13. | 870670 | [1] | Relay | 12V |
| 13. | 239883 | [1] | Relay | 24V |
| 14. | 958236 | [2] | Cross recessed screw | |
| 14A. | 960138 | [2] | Washer | |
| 15. | 829347 | [1] | Bracket | |
| 16. | 946514 | [2] | Hexagon screw | |
| 17. | 941907 | [2] | Spring washer | |
| 18. | 829637 | [1] | Resistor | MO-3130871/216681., 12V |
| 18. | 829638 | [1] | Resistor | 24V |
| 19. | 827151 | [1] | Temperature sensor | |
| 20. | 957181 | [1] | Gasket | |
| 21. | 1266085 | [1] | Pressure switch | (672910) |
| 22. | 1502028 | [1] | Tachometer sensor | |
| 23. | 960169 | [1] | O-ring | |
| 24. | 829857 | [4] | Glow plug | MO-3130871/216681., 12V |
| 24. | 840643 | [4] | Glow plug | MO 3130872/216682-., 12V |
| 24. | 870681 | [4] | Glow plug | 24V |
| 25. | 829799 | [3] | Cable | |
| 26. | 829858 | [4] | Protective hat | |
| 27. | 829369 | [1] | Cable block | |
| 28. | 948210 | [1] | Cable tie | (827353) |
| 29. | 843213 | [1] | Extension cable | L=2500mm |
| 29. | 843214 | [1] | Cable block | L=7000mm |
| 29. | ||||
| 30. | 7742100_031 | cables and cable terminals | ||
| 30. | ||||
| 31. | 829442 | [1] | Instrument panel | For twin installation use 2pcs single instrument panels., 12V |
| 31. | 829443 | [1] | Instrument panel | For twin installation use 2pcs single instrument panels., 24V |
| 32. | 840013 | [1] | Instrument panel | Extra |
| 33. | 839128 | [1] | Plastic plug | |
| 34. | 944540 | [4] | Screw | |
| 35. | 827940 | [1] | Alarm kit | 12V, see group 9 |
| 35. | 827941 | [1] | Alarm kit | 24V, see group 9 |
| 36. | 870980 | [1] | Main switch | |
| 37. | 243700 | [1] | Handle | |
| 37A. | 955783 | [2] | Hexagon nut | |
| 38. | 821042 | [1] | Sign | |
| 39. | 955780 | [4] | Hexagon nut | |
| 40. | 941905 | [4] | Spring washer | |
| 41. | 834397 | [1] | Voltmeter | |
| 42. | 834374 | [1] | Voltmeter | |
| 43. | 19923 | [1] | Bulb | |
| 44. | 808175 | [1] | Bulb socket | |
| 45. | 834398 | [1] | Instrument | |
| 46. | 834376 | [1] | Instrument | |
| 47. | 19923 | [1] | Bulb | |
| 48. | 808175 | [1] | Bulb socket | |
| 49. | 881432 | [1] | Sensor | |
| 50. | 834391 | [1] | T-nipple | |
| 51. | 191026 | [1] | Plug | |
| 52. | 834401 | [1] | Rudder indicator | |
| 53. | 834383 | [1] | Rudder indicator | |
| 54. | 19923 | [1] | Bulb | |
| 55. | 808175 | [1] | Bulb socket | |
| 56. | 837772 | [1] | Position sensor | |
| 57. | 834400 | [1] | Tank gauge, tank gauge drinking water | See group 9 |
| 57. | ||||
| 57. | 834399 | [1] | Tank gauge, fuel | See group 9 |
