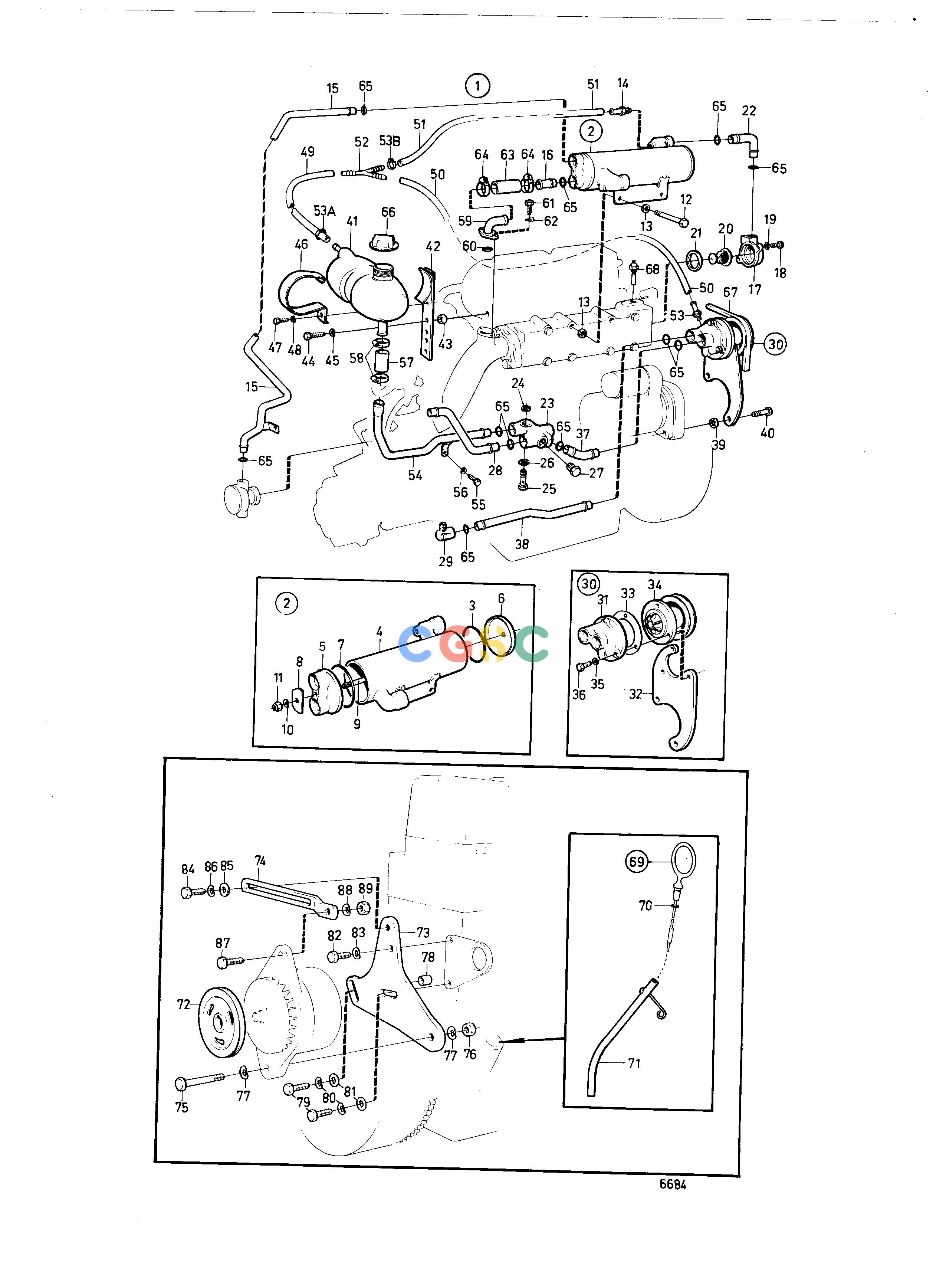

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 840602 | [1] | Freshwater cooling k | MD11D |
| 2. | 829911 | [1] | Heat exchanger | |
| 3. | 829972 | [1] | Gasket | |
| 4. | ||||
| 5. | 829987 | [1] | End plate | |
| 6. | 829988 | [1] | End plate | |
| 7. | 829989 | [1] | Gasket | |
| 8. | 829990 | [1] | Bracket | |
| 9. | 829991 | [1] | Bar | |
| 10. | 941906 | [3] | Spring washer | |
| 11. | 963105 | [3] | Lock nut | |
| 12. | 100223 | [2] | Hexagon screw | |
| 13. | 960141 | [4] | Washer | |
| 14. | 829917 | [1] | Hose coupling | |
| 16. | 829901 | [1] | Connecting pipe | |
| 17. | 829916 | [1] | Thermostat housing | |
| 18. | 940132 | [2] | Hexagon screw | |
| 19. | 941907 | [2] | Spring washer | |
| 20. | 838501 | [1] | Thermostat | 76°C |
| 21. | 416033 | [1] | Sealing ring | |
| 22. | 829932 | [1] | Coolant pipe | |
| 23. | 829905 | [1] | Coupling piece | |
| 24. | 829915 | [1] | Spacer ring | |
| 25. | 840269 | [1] | Hollow screw | (180211) |
| 26. | 957178 | [1] | Gasket | |
| 27. | 927963 | [1] | Plug | |
| 28. | 829933 | [1] | Coolant pipe | |
| 29. | 829920 | [1] | Insert nipple | |
| 30. | ||||
| 31. | 829847 | [1] | Pump housing | |
| 32. | 829899 | [1] | Bracket | |
| 33. | 829923 | [1] | Gasket | |
| 34. | 829953 | [1] | Circulation pump | |
| 35. | 941906 | [3] | Spring washer | |
| 36. | 955275 | [3] | Hexagon screw | |
| 37. | 829935 | [1] | Coolant pipe | |
| 38. | 829936 | [1] | Coolant pipe | |
| 39. | 955897 | [2] | Washer | |
| 40. | 955345 | [2] | Hexagon screw | L=55mm |
| 41. | 1276040 | [1] | Expansion tank | |
| 42. | 840172 | [1] | Bracket | |
| 43. | 829653 | [2] | Spacer sleeve | |
| 44. | 940142 | [2] | Hexagon screw | L=30mm |
| 45. | 941907 | [2] | Spring washer | |
| 46. | 840171 | [1] | Clamp | |
| 47. | 956092 | [1] | Cross recessed screw | |
| 48. | 941906 | [1] | Spring washer | |
| 49. | 942700 | [1] | Hose | L=605mm |
| 50. | 942700 | [1] | Hose | L=295mm |
| 51. | 942700 | [1] | Hose | L=40mm |
| 52. | 840179 | [1] | Hose coupling | |
| 53. | 829917 | [1] | Hose coupling | |
| 53A. | 945651 | [1] | Hose clamp | |
| 53B. | 945650 | [5] | Hose clamp | |
| 54. | 829934 | [1] | Coolant pipe | |
| 55. | 955294 | [1] | Hexagon screw | L=16mm |
| 56. | 941907 | [1] | Spring washer | |
| 57. | 943369 | [1] | Rubber hose | L=95mm |
| 58. | 943473 | [2] | Hose clamp | |
| 59. | 829928 | [1] | Hose connection | |
| 60. | 418445 | [1] | Sealing ring | |
| 61. | 955269 | [2] | Hexagon screw | L=12mm |
| 62. | 941906 | [2] | Spring washer | |
| 63. | 952969 | [1] | Hose | L=50mm |
| 64. | 943472 | [2] | Hose clamp | |
| 65. | 418411 | [11] | Sealing ring | |
| 65. | 829714 | [1] | Sealing ring | For pipe 840510. |
| 66. | 844624 | [1] | Pressure cap | (1542591) |
| 67. | 958332 | [1] | V-belt | L=1550mm |
| 68. | 827151 | [1] | Temperature sensor | |
| 69. | 840536 | [1] | Oil dipstick | |
| 70. | 949187 | [1] | O-ring | |
| 71. | 840538 | [1] | Tube | |
| 72. | 840380 | [1] | Pulley | |
| 73. | 829900 | [1] | Bracket | |
| 74. | 840506 | [1] | Tensioner | |
| 75. | 955328 | [1] | Hexagon screw | L=80mm |
| 76. | 963107 | [1] | Lock nut | |
| 77. | 941908 | [2] | Spring washer | |
| 78. | 845589 | [1] | Spacer sleeve | L=8mm |
| 79. | 940142 | [2] | Hexagon screw | L=30mm |
| 80. | 941907 | [2] | Spring washer | |
| 81. | 191172 | [2] | Washer | |
| 82. | 955319 | [1] | Hexagon screw | L=35mm |
| 83. | 941908 | [1] | Spring washer | |
| 84. | 955295 | [1] | Hexagon screw | L=20mm |
| 85. | 191172 | [1] | Washer | |
| 86. | 941907 | [1] | Spring washer | |
| 87. | 940132 | [1] | Hexagon screw | L=35mm |
| 88. | 941907 | [1] | Spring washer | |
| 89. | 955782 | [1] | Hexagon nut |
