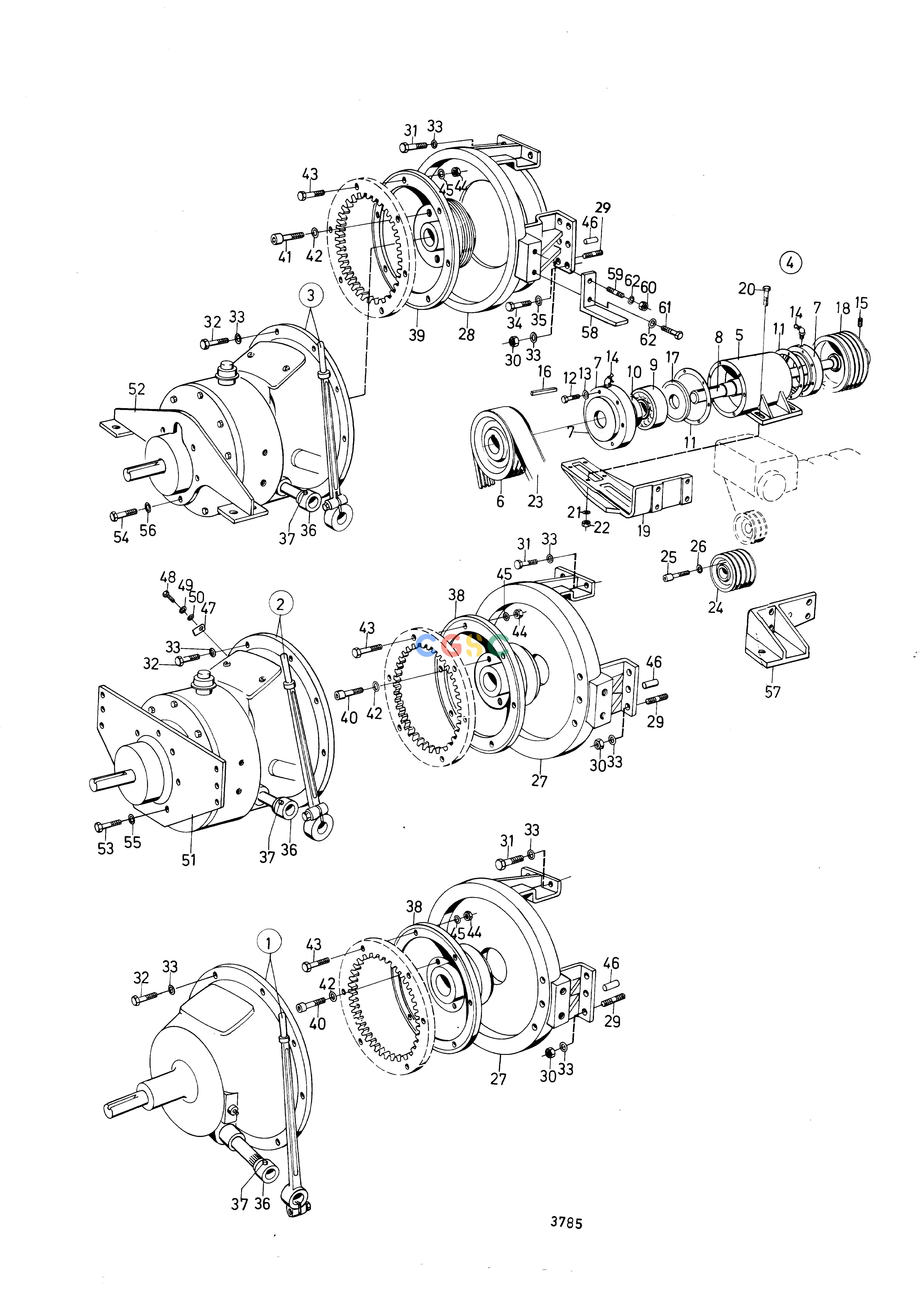

沃尔沃零件查询MD100A; TMD100A; TMD100AK; TMD100A-CC; MD100B; MD100BK; MD100B-CCTransmissionsClutch with Installation ComponentsEPC Volvo Penta Parts catalog

作者：广数供应链运营团队
浏览数：
时间：2025-01-23 04:56:21
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos. Part No Qty Parts name Comments
1. 815263 [1]   Clutch Rockford BW 8''
1.     See group 4D
1. 820802 [1]   Power take-off Rockford BW 10''
2.     See group 4D
2. 815261 [1]   Reduction gear, ratio 2,8:1 Drilled 30mm., Rockford BW 8''
2. 820803 [1]   Friction clutch, ratio 2,8:1 Rockford BW 10''
3. 837494 [1]   Clutch, ratio 2,95:1 Rockford BW 11,5''
3.
3. 838000 [1]   Clutch, ratio 1:1 Twin Disc SL211 11,5''
3. 845705 [1]   Clutch, ratio 1:1 Twin Disc SP211 11,5''
4. 837463 [1]   Power take-off
5. 837438 [1]   Bearing housing
6. 837467 [1]   Pulley
7. 837439 [2]   Cover
8. 837465 [1]   Shaft
9. 183719 [2]   Roller bearing
10. 958876 [2]   Sealing ring
11. 837440 [2]   Gasket
12. 955513 [12]   Hexagon screw
13. 941906 [12]   Spring washer
14. 914169 [2]   Lubricating nipple
15. 961206 [1]   Set screw
16. 909350 [1]   Flat key L=140mm
16. 963372 [1]   Key L=180mm
17. 946769 [2]   Sealing ring
18.     See group 9
19. 837470 [1]   Bracket See group 2A
20. 100319 [4]   Hexagon screw
21. 955896 [4]   Washer
22. 940157 [4]   Hexagon nut
23. 837466 [1]   V-belt
24. 837476 [1]   Pulley For early production of steering system.
25. 959188 [12]   Hex. socket screw For early production of steering system.
26. 941909 [12]   Spring washer For early production of steering system.
27. 823121 [1]   Bell housing For 8'', 10''
28. 837468 [1]   Power take-off For 11,5''
29. 953282 [6]   Stud
30. 955827 [6]   Hexagon nut
31. 955535 [2]   Hexagon screw
32. 940115 [12]   Hexagon screw
33. 942336 [20]   Spring washer
34. 940115 [4]   Hexagon screw
35. 942336 [4]   Spring washer
36. 803612 [2]   Stop ring
37. 915590 [4]   Set screw
38. 823081 [1]   Companion flange For late production of steering system
38. 823080 [1]   Companion flange Replaced by 1pc 832941 1pc 832439.
38. 823079 [1]   Companion flange Replaced by 1pc 831619, 1pc 832941, 1pc 11013, 1pc 958860, 2pcs 914533
39. 842038 [1]   Companion flange
40. 955555 [12]   Hexagon screw For late production of steering system.
40. 956610 [12]   Hex. socket screw Replaced by 1pc 832941 1pc 832439., Replaced by 1pc 831619, 1pc 832941, 1pc 11013, 1pc 958860, 2pcs
41. 959188 [12]   Hex. socket screw
42. 941907 [12]   Spring washer
43. 803672 [6]   Screw For late production of steering system
43. 955536 [8]   Hexagon screw
44. 955827 [8]   Hexagon nut MO-XXXX/15366
45. 942336 [8]   Spring washer MO-XXXX/15366
45. 955950 [8]   Toothed washer Replaced by 1pc 832941 1pc 832439., Replaced by 1pc 831619, 1pc 832941, 1pc 11013, 1pc 958860, 2pcs
46. 941510 [2]   Pin
47. 814927 [1]   Cover Used when separate exhaust outlet and water intake is mounted
48. 950021 [1]   Cross recessed screw Used when separate exhaust outlet and water intake is mounted.
49. 941905 [1]   Spring washer Used when separate exhaust outlet and water intake is mounted.
50. 940090 [1]   Washer Used when separate exhaust outlet and water intake is mounted.
51. 815454 [1]   Attaching plate Used when separate exhaust outlet and water intake is mounted
51. 820682 [1]   Bracket Replaced by 1pc 831619, 1pc 832941, 1pc 11013, 1pc 958860, 2pcs 914533
51. 803554 [1]   Attaching plate For AQ drive unit 280
52. 837413 [1]   Support Replaced by 1pc 850046, 1pc 850041
53. 955525 [8]   Hexagon screw Used when separate exhaust outlet and water intake is mounted.
53. 940135 [8]   Hexagon screw Replaced by 1pc 831619, 1pc 832941, 1pc 11013, 1pc 958860, 2pcs 914533.
53. 940115 [8]   Hexagon screw For AQ drive unit 280.
54. 955559 [6]   Hexagon screw Replaced by 1pc 850046, 1pc 850041.
55. 941907 [8]   Spring washer Replaced by 1pc 831619, 1pc 832941, 1pc 11013, 1pc 958860, 2pcs 914533., Used when separate exhaust
55. 942336 [8]   Spring washer For AQ drive unit 280.
56. 940280 [6]   Spring washer Replaced by 1pc 850046, 1pc 850041.
57. 837477 [1]   Bracket Replaced by 1pc 875671 1pc 851265 1pc 851263 2pcs 941807., P see group 2A
57. 837587 [1]   Bracket Replaced by 1pc 875671 1pc 851265 1pc 851263 2pcs 941807., S.B see group 2A
58. 837464 [2]   Bracket
59. 953257 [2]   Stud
60. 955835 [2]   Hexagon nut
61. 940114 [2]   Hexagon screw
62. 942336 [4]   Spring washer
