| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

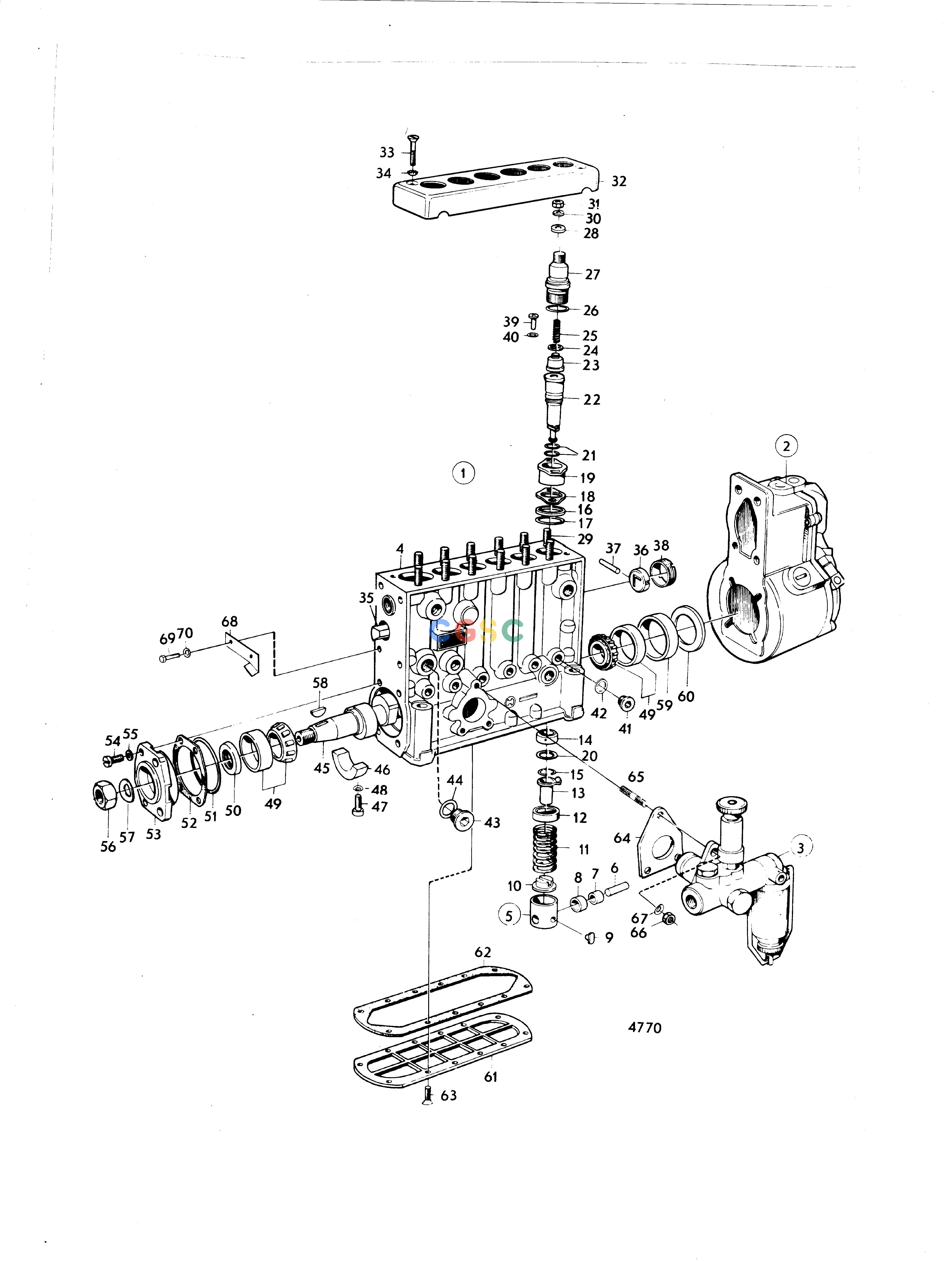

| 1. | 837046 | [1] | Injection pump | |
| 2. | 240909 | [1] | Centrifugal governor | |
| 3. | Repl by 243083 | |||
| 3. | 243083 | [1] | Feed pump | |
| 4. | ||||
| 5. | 239982 | [6] | Tappet | |
| 6. | 240779 | [6] | Bearing bolt | |
| 7. | 240780 | [6] | Bushing | |
| 8. | 240781 | [6] | Roller | |
| 9. | 238379 | [6] | Plate | |
| 10. | 239986 | [6] | Spring disc | |
| 11. | 244065 | [6] | Spring | (239985) |
| 12. | 239984 | [6] | Spring disc | |
| 13. | 240782 | [6] | Control sleeve | |
| 14. | 239991 | [6] | Cover | |
| 15. | 239990 | [6] | Lock ring | |
| 16. | 240003 | [6] | Spacer ring | |
| 17. | 240002 | [6] | Gasket | |
| 18. | 240424 | [1] | Gasket | TH=0.15mm |
| 18. | 240004 | [1] | Gasket | TH=0.40mm |
| 18. | 240005 | [1] | Gasket | TH=0.50mm |
| 18. | 240006 | [1] | Gasket | TH=0.60mm |
| 18. | 240007 | [1] | Gasket | TH=0.70mm |
| 18. | 240008 | [1] | Gasket | TH=0.80mm |
| 19. | 243741 | [6] | Bushing | |
| 20. | 241677 | [6] | Washer | |
| 21. | 240422 | [12] | O-ring | |
| 22. | 239988 | [6] | Pump element | |
| 23. | 240783 | [6] | Delivery valve | |
| 24. | 239993 | [6] | Sealing washer | |
| 25. | 238309 | [6] | Compression spring | |
| 26. | 240001 | [6] | O-ring | |
| 27. | 243771 | [6] | Delivery valve retai | |
| 28. | 243743 | [12] | Washer | |
| 29. | 240010 | [12] | Screw | |
| 30. | 941908 | [12] | Spring washer | |
| 31. | 955783 | [12] | Hexagon nut | |
| 32. | 240011 | [1] | Cover | |
| 33. | 956209 | [2] | Cross recessed screw | |
| 34. | 18891 | [2] | Lock washer | |
| 35. | 240425 | [1] | Control rod | |
| 36. | 240014 | [2] | Bushing | |
| 37. | 244008 | [1] | Spring pin | (837734) |
| 38. | 240015 | [1] | Bushing | |
| 39. | 240971 | [6] | Peg | |
| 40. | 238312 | [1] | Adjusting washer | TH=0,30mm |
| 40. | 241734 | [1] | Adjusting washer | TH=0.50mm |
| 40. | 238314 | [1] | Adjusting washer | TH=1.00mm |
| 41. | 837735 | [6] | Plug | |
| 42. | 18836 | [6] | Gasket | |
| 43. | 243263 | [1] | Sealing plug | |
| 44. | 240017 | [1] | Gasket | |
| 45. | 240789 | [1] | Camshaft | |
| 46. | 240426 | [1] | Bearing | |
| 47. | 240427 | [2] | Screw | |
| 48. | 941906 | [2] | Spring washer | |
| 49. | 240023 | [2] | Roller bearing | |
| 50. | 240022 | [1] | Sealing ring | |
| 51. | 243299 | [1] | O-ring | |
| 52. | 240024 | [1] | Shim | TH=0,10mm |
| 52. | 240025 | [1] | Shim | TH=0.12mm |
| 52. | 240026 | [1] | Shim | TH=0.14mm |
| 52. | 240027 | [1] | Shim | TH=0.16mm |
| 52. | 240028 | [1] | Shim | TH=0.18mm |
| 52. | 240029 | [1] | Shim | TH=0,30mm |
| 52. | 240030 | [1] | Shim | TH=0.50mm |
| 53. | 240021 | [1] | Bearing cover | |
| 54. | 956094 | [4] | Cross recessed screw | |
| 55. | 941906 | [4] | Spring washer | |
| 56. | 955806 | [1] | Hexagon nut | |
| 57. | 941913 | [1] | Spring washer | |
| 58. | 35168 | [1] | Key | |
| 59. | 240032 | [1] | Ring | |
| 60. | 240033 | [1] | Shim | TH=1,20mm |
| 60. | 240034 | [1] | Shim | TH=1,50mm |
| 60. | 240035 | [1] | Shim | TH=1,80mm |
| 60. | 240036 | [1] | Shim | TH=2,00mm |
| 61. | 240947 | [1] | Cover | |
| 62. | 240948 | [1] | Gasket | |
| 63. | 956205 | [12] | Cross recessed screw | |
| 64. | 239896 | [1] | Gasket | |
| 65. | 130673 | [3] | Stud | |
| 66. | 955781 | [3] | Hexagon nut | |
| 67. | 941906 | [3] | Spring washer | |
| 68. | 241647 | [1] | Indicator | |
| 69. | 100101 | [2] | Hexagon screw | |
| 70. | 941906 | [2] | Spring washer |
