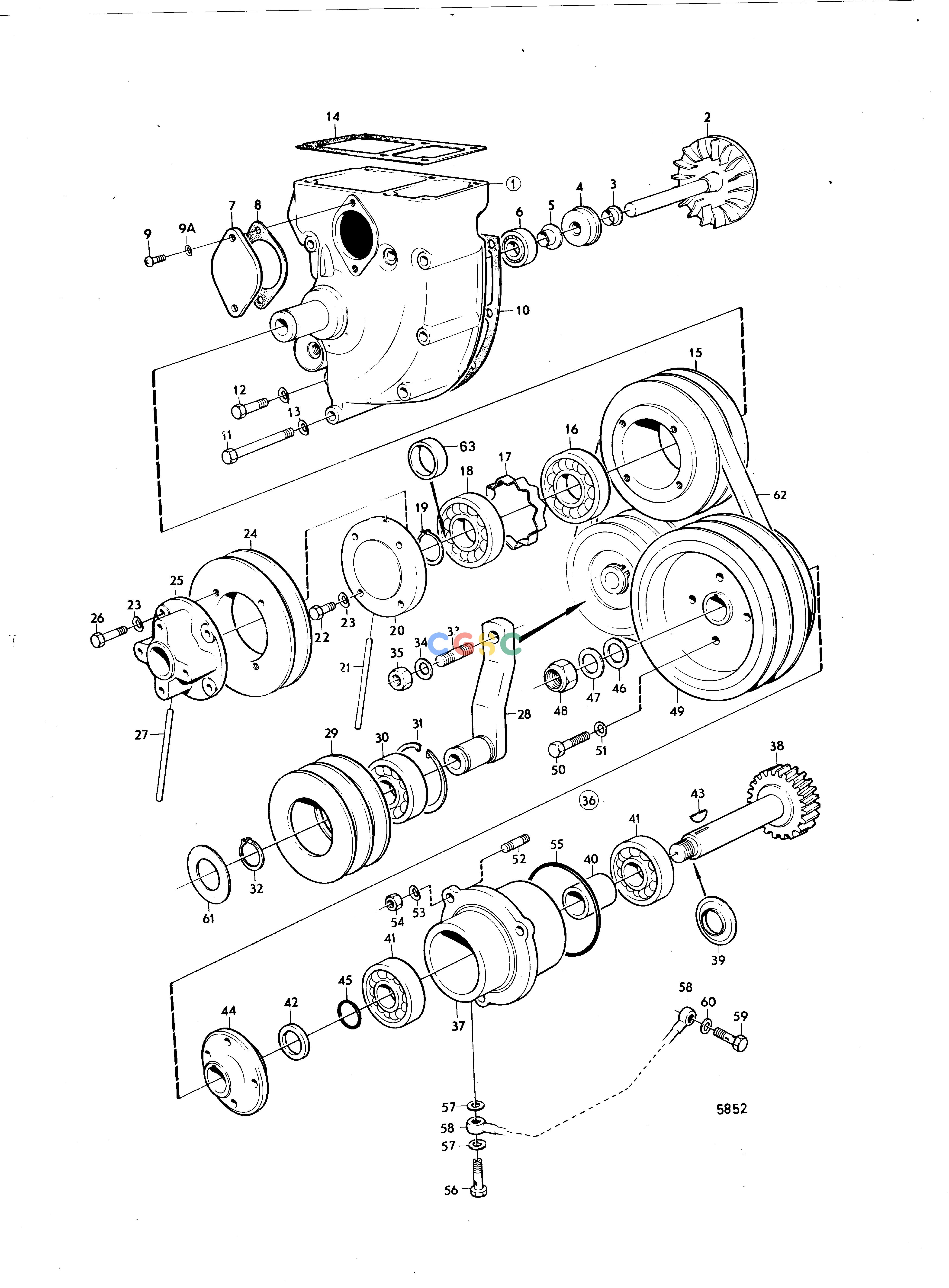

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 422311 | [1] | Water pump | (875647) |
| 2. | 422148 | [1] | Shaft | |
| 3. | 421306 | [1] | Wear ring | |
| 4. | 1545283 | [1] | Sealing ring | (1542833) |
| 5. | 70913 | [1] | Deflector | |
| 6. | 181670 | [1] | Ball bearing | |
| 7. | 896699 | [1] | Flange | MO-99587/XXXX |
| 7. | 843407 | [1] | Flange | MO99588/XXXX-, early type |
| 7. | 846685 | [1] | Flange | Late type |
| 8. | 423138 | [1] | Gasket | MO-99587/XXXX |
| 8. | 422171 | [1] | Gasket | MO99588/XXXX- |
| 9. | 950171 | [2] | Screw | MO-99587/XXXX |
| 9. | 940135 | [3] | Hexagon screw | MO99588/XXXX-, early type |
| 9. | 955524 | [3] | Hexagon screw | Late type |
| 9A. | 941907 | [3] | Spring washer | MO99588/XXXX- |
| 10. | 423127 | [1] | Gasket | |
| 11. | 955542 | [5] | Hexagon screw | |
| 12. | 940162 | [2] | Hexagon screw | |
| 13. | 942336 | [7] | Spring washer | |
| 14. | 821853 | [1] | Gasket | |
| 15. | 423125 | [1] | V-belt pulley | Early type 3-groove |
| 15. | 822548 | [1] | V-belt pulley | |
| 16. | 181538 | [1] | Ball bearing | |
| 17. | 422202 | [1] | Spacer sleeve | |
| 18. | 1542870 | [1] | Roller bearing | (11013) |
| 19. | 914462 | [1] | Snap ring | |
| 20. | 836805 | [1] | Companion flange | |
| 21. | 951969 | [1] | Spring pin | |
| 22. | 940159 | [4] | Hexagon screw | |
| 23. | 941907 | [4] | Spring washer | |
| 24. | 422499 | [1] | V-belt pulley | MO-15411/XXXX |
| 25. | 422493 | [1] | Hub | MO-15411/XXXX |
| 26. | 940186 | [4] | Hexagon screw | MO-15411/XXXX |
| 27. | 951985 | [1] | Spring pin | MO-15411/XXXX |
| 28. | 207811 | [1] | Lever | MO-15411/XXXX |
| 28. | 823024 | [1] | Lever | |
| 29. | 411670 | [1] | V-belt pulley | MO-15411/XXXX |
| 29. | 822551 | [1] | V-belt pulley | |
| 30. | 1544092 | [1] | Ball bearing | (181430) |
| 31. | 914533 | [1] | Snap ring | |
| 32. | 914462 | [1] | Snap ring | |
| 33. | 953358 | [1] | Stud | MO-15411/XXXX |
| 33. | 953354 | [1] | Stud | |
| 34. | 941911 | [1] | Spring washer | |
| 35. | 955828 | [1] | Hexagon nut | |
| 36. | Late type MO69907/XXXX- | |||
| 37. | 837703 | [1] | Bearing housing | |
| 38. | 837704 | [1] | Gear | |
| 39. | 837705 | [1] | Deflector | |
| 40. | 837706 | [1] | Spacer sleeve | |
| 41. | 183731 | [2] | Ball bearing | |
| 42. | 958856 | [1] | Sealing ring | |
| 43. | 909867 | [1] | Flat key | |
| 44. | 837707 | [1] | Hub | |
| 45. | 190418 | [1] | O-ring | |
| 46. | 947170 | [1] | Gasket | |
| 47. | 837708 | [1] | Washer | |
| 48. | 949399 | [1] | Lock nut | (950358) |
| 49. | For engine without Volvo Penta radiator., MO-69906/XXXX | |||
| 49. | 837710 | [1] | V-belt pulley | MO69907/XXXX- |
| 50. | 955534 | [4] | Hexagon screw | MO69907/XXXX- |
| 51. | 942336 | [4] | Spring washer | MO69907/XXXX- |
| 52. | 953280 | [2] | Stud | L=120mm |
| 52. | 953257 | [1] | Stud | L=35mm |
| 53. | 942336 | [3] | Spring washer | |
| 54. | 955827 | [3] | Hexagon nut | |
| 55. | 949660 | [1] | O-ring | (925254) |
| 56. | 844625 | [1] | Hollow screw | MO69907/XXXX- |
| 57. | 957171 | [2] | Gasket | MO69907/XXXX- |
| 58. | 837711 | [1] | Tube | MO69907/XXXX- |
| 59. | 837709 | [1] | Hollow screw, hollow bolt | MO69907/XXXX- |
| 59. | See group 2C | |||
| 60. | 11994 | [1] | Gasket | MO69907/XXXX- |
| 61. | 420416 | [1] | Protecting plate | |
| 62. | 960324 | [1] | V-belt, circulation pump | |
| 62. | ||||
| 63. | 1542871 | [1] | Spacer sleeve | MO132135/XXXX- |
| 63. | 875386 | [1] | Repair kit, circulation pump | |
| 63. |
