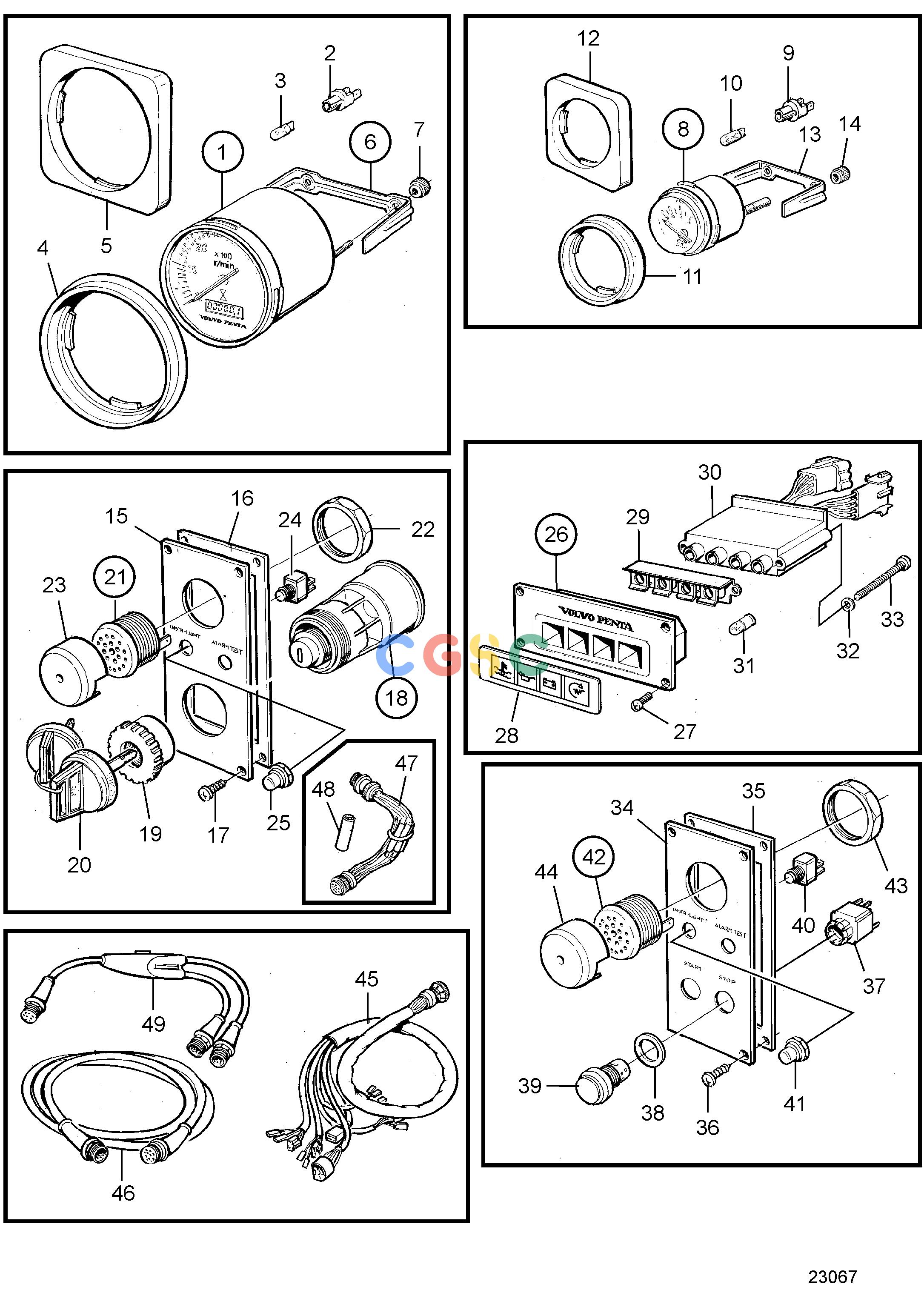

| 1. |
873992
|
[1] |
Tachometer kit
|
4600 rpm
|
| 2. |
863945
|
[1] |
Bulb socket
|
|
| 3. |
863946
|
[1] |
Bulb
|
12V, 1,2W red
|
| 3. |
863947
|
[1] |
Bulb
|
24V, 1,2W red
|
| 4. |
873517
|
[1] |
Ring
|
Alt., D=72mm
|
| 5. |
873210
|
[1] |
Instrument frame
|
Alt, D=75mm
|
| 6. |
873208
|
[1] |
Brace kit
|
|
| 7. |
|
|
|
|
| 8. |
873195
|
[1] |
Thermometer
|
12V, 40-120°C
|
| 8. |
873197
|
[1] |
Oil pressure gauge
|
10x100kPa
|
| 8. |
873199
|
[1] |
Voltmeter
|
12V
|
| 9. |
863945
|
[1] |
Bulb socket
|
|
| 10. |
863946
|
[1] |
Bulb
|
12V, 1,2W red
|
| 11. |
858643
|
[1] |
Front ring
|
Alt, D=52mm
|
| 12. |
856822
|
[1] |
Instrument frame
|
Alt, D=52mm
|
| 13. |
873207
|
[1] |
Brace kit
|
|
| 14. |
|
|
|
|
| 15. |
873271
|
[1] |
Panel
|
|
| 16. |
873273
|
[1] |
Gasket
|
|
| 17. |
828647
|
[4] |
Screw
|
|
| 18. |
3587072
|
[1] |
Starter switch
|
(864277)
|
| 19. |
859955
|
[1] |
Plastic nut
|
|
| 20. |
859953
|
[2] |
Key
|
State key code when ordering
|
| 21. |
828587
|
[1] |
Buzzer
|
|
| 22. |
|
|
|
|
| 23. |
858795
|
[1] |
Protecting casing
|
|
| 24. |
828584
|
[1] |
Toggle switch
|
Alarm test
|
| 24. |
828585
|
[1] |
Toggle switch
|
Instr. light
|
| 25. |
828586
|
[2] |
Nut
|
|
| 26. |
858876
|
[1] |
Symbol panel
|
858876 includes symbol plate 858645.
|
| 26. |
|
|
|
|
| 27. |
828647
|
[4] |
Screw
|
|
| 28. |
858645
|
[1] |
Symbol strip
|
For: coolant temperature, oil pressure, battery charging and preheater., Included in 858876.
|
| 28. |
873559
|
[1] |
Symbol strip
|
For: oil level, coolant level, water in fuel filter and extra alarm., Not included in 858876.
|
| 29. |
828784
|
[1] |
Reflector
|
|
| 30. |
873737
|
[1] |
Electronic unit
|
For: coolant temperature, oil pressure, battery charging and preheater., 12/24V
|
| 30. |
873211
|
[1] |
Electronic unit
|
For: oil level, coolant level, water in fuel filter and extra alarm., 12/24V
|
| 31. |
19923
|
[4] |
Bulb
|
12V 2W
|
| 31. |
182059
|
[4] |
Bulb
|
24V, 3W
|
| 32. |
941904
|
[2] |
Spring washer
|
|
| 33. |
941615
|
[2] |
Cross recessed screw
|
|
| 34. |
873272
|
[1] |
Panel
|
|
| 35. |
873273
|
[1] |
Gasket
|
|
| 36. |
828647
|
[4] |
Screw
|
|
| 37. |
876950
|
[1] |
Push button kit
|
Spare part design., Stop, red
|
| 38. |
|
|
|
|
| 39. |
|
|
|
|
| 40. |
828584
|
[1] |
Toggle switch
|
Alarm test
|
| 40. |
828585
|
[1] |
Toggle switch
|
Instr. light
|
| 41. |
828586
|
[2] |
Nut
|
|
| 42. |
828587
|
[1] |
Buzzer
|
|
| 43. |
|
|
|
|
| 44. |
858795
|
[1] |
Protecting casing
|
|
| 45. |
873579
|
[1] |
Wiring harness
|
Main station
|
| 45. |
873580
|
[1] |
Wiring harness
|
Fly Bridge
|
| 46. |
846648
|
[1] |
Extension cable
|
L=3.0m
|
| 46. |
846649
|
[1] |
Extension cable
|
L=5.0m
|
| 46. |
846650
|
[1] |
Extension cable
|
L=7,0m
|
| 47. |
873568
|
[1] |
Diode cable
|
For 2-pole electrical system.
|
| 48. |
20382270
|
[1] |
Diode
|
For 2-pole electrical system., (1624394)
|
| 49. |
1140598
|
[1] |
Distributing contact
|
|
