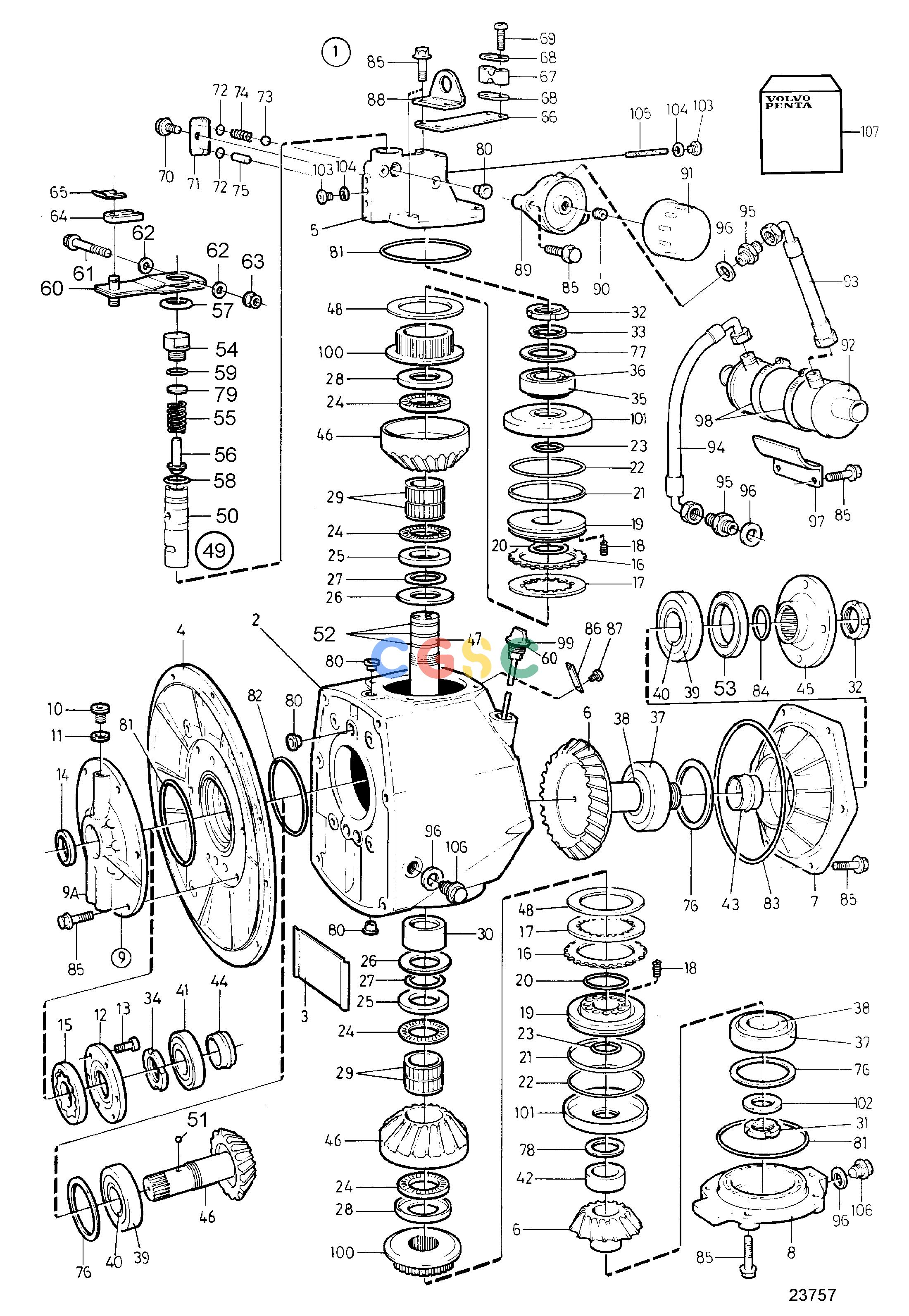

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ETransmissionsReverse Gear HS1A: Ratio 1.96EPC Volvo Penta Parts catalog

作者：广数供应链运营团队
浏览数：
时间：2025-01-23 01:42:04
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos. Part No Qty Parts name Comments
1. 873171 [1]   Transmission Ratio 1.96:1
1. 3803501 [1]   Lower gear, exch Ratio 1.96:1
2. 872500 [1]   Gear housing
3. 872574 [1]   Shield
4. 872501 [1]   Cap
5. 872725 [1]   Valve housing
6. 872510 [1]   Drive gear set
7. 872505 [1]   Bearing housing
8. 872506 [1]   Bearing housing
9. 3851512 [1]   Oil pump
9A.
10. 945065 [3]   Plug
11. 969011 [3]   Gasket
12.
13. 942001 [6]   Hex. socket screw
14. 6842273 [1]   Lip seal Included in gasket kit.
15.
16.     Included in disc kit.
17.     Included in disc kit.
18. 872580 [26]   Spring
19. 3861194 [2]   Piston
20. 977891 [2]   O-ring Included in gasket kit., Included in piston ring kit.
21.     Included in piston ring kit.
22.     Included in piston ring kit.
23. 872522 [2]   Lock ring
24. 184175 [4]   Needle roller assemb
25. 184239 [2]   Raceway washer
26. 872581 [2]   Spring washer
27. 956000 [2]   O-ring Included in gasket kit.
28. 872570 [2]   Thrust washer
29. 184798 [4]   Needle roller assemb
30. 872587 [1]   Roller bearing
31. 969072 [1]   Round nut Included in gasket kit.
32. 969073 [2]   Round nut Included in gasket kit.
33. 872520 [1]   Washer
34. 969074 [1]   Round nut Included in gasket kit.
35. 181304 [1]   Cup
36. 181303 [1]   Inner ring
37. 183403 [2]   Cup
38. 183649 [2]   Inner ring
39. 181036 [2]   Cup
40. 184797 [2]   Inner ring
41. 183232 [1]   Roller bearing
42. 872521 [1]   Spacer sleeve
43. 872568 [1]   Pretensioning sleeve
44. 872569 [1]   Pretensioning sleeve
45. 872523 [1]   Flange
46. 872507 [1]   Drive gear set
47. 872515 [1]   Shaft
48. 872794 [2]   Disc spring
49. 872524 [1]   Valve
50.
51. 1521240 [1]   Ball
52.     Included in piston ring kit.
53. 872701 [1]   Sealing ring Included in gasket kit.
54. 872525 [1]   Housing
55. 872585 [1]   Spring
56. 873519 [1]   Service kit
57. 872567 [1]   Cap
58. 977890 [1]   O-ring Included in gasket kit.
59. 925058 [2]   O-ring Included in gasket kit.
60. 872526 [1]   Intermediate lever
61. 955252 [1]   Hexagon screw
62. 940090 [2]   Washer
63. 963104 [1]   Lock nut
64. 872075 [1]   Anchorage
65. 873265 [1]   E-circlip
66. 872528 [1]   Bracket
67. 872074 [1]   Retainer
68. 872076 [2]   Washer
69. 956083 [2]   Cross recessed screw
70. 967949 [1]   Flange screw
71. 872529 [1]   Cap
72. 955983 [2]   O-ring Included in gasket kit.
73. 183801 [1]   Ball
74. 872586 [1]   Spring
75. 184796 [1]   Needle roller
76. 977913 [1]   Shim TH=0,10mm
76. 977914 [1]   Shim TH=0.15mm
76. 977915 [1]   Shim TH=0,35mm
77. 977910 [1]   Shim TH=0,10mm
77. 977911 [1]   Shim TH=0.15mm
77. 977912 [1]   Shim TH=0,35mm
78. 978912 [1]   Shim TH=0,30mm
78. 977909 [1]   Shim TH=0,35mm
78. 978913 [1]   Shim TH=0,40mm
78. 978914 [1]   Shim TH=0,45mm
78. 978915 [1]   Shim TH=0,50mm
78. 978916 [1]   Shim TH=0,55mm
79. 978917 [1]   Shim TH=0,50mm
80. 422413 [11]   Sealing ring Included in gasket kit.
81. 925263 [3]   O-ring Included in gasket kit.
82. 925260 [1]   O-ring Included in gasket kit.
83. 948866 [1]   O-ring Included in gasket kit.
84. 949659 [1]   O-ring Included in gasket kit.
85. 947760 [28]   Flange screw
86.
87. 950885 [2]   Drive screw
88.
89. 872605 [1]   Bracket
90. 840274 [1]   Nipple
91. 834337 [1]   Oil filter
92. 872626 [1]   Oil cooler
93. 872637 [1]   Hose
94. 872638 [1]   Hose
95. 192639 [2]   Nipple
96. 947624 [4]   Gasket Included in gasket kit.
97. 872615 [1]   Bracket
98. 961674 [2]   Hose clamp
99. 3858156 [1]   Dipstick
100. 872608 [2]   Hub
101. 872611 [2]   Cylinder
102. 978906 [1]   Support washer
103. 977917 [3]   Plug
104. 947620 [3]   Gasket Included in gasket kit.
105. 872577 [1]   Oil strainer
106. 1381498 [2]   Plug
107. 876588 [1]   Gasket kit See group 99
107. 3885079 [1]   Disc kit 2pcs disc kit needed, See group 99
107. 876589 [1]   Piston kit See group 99
