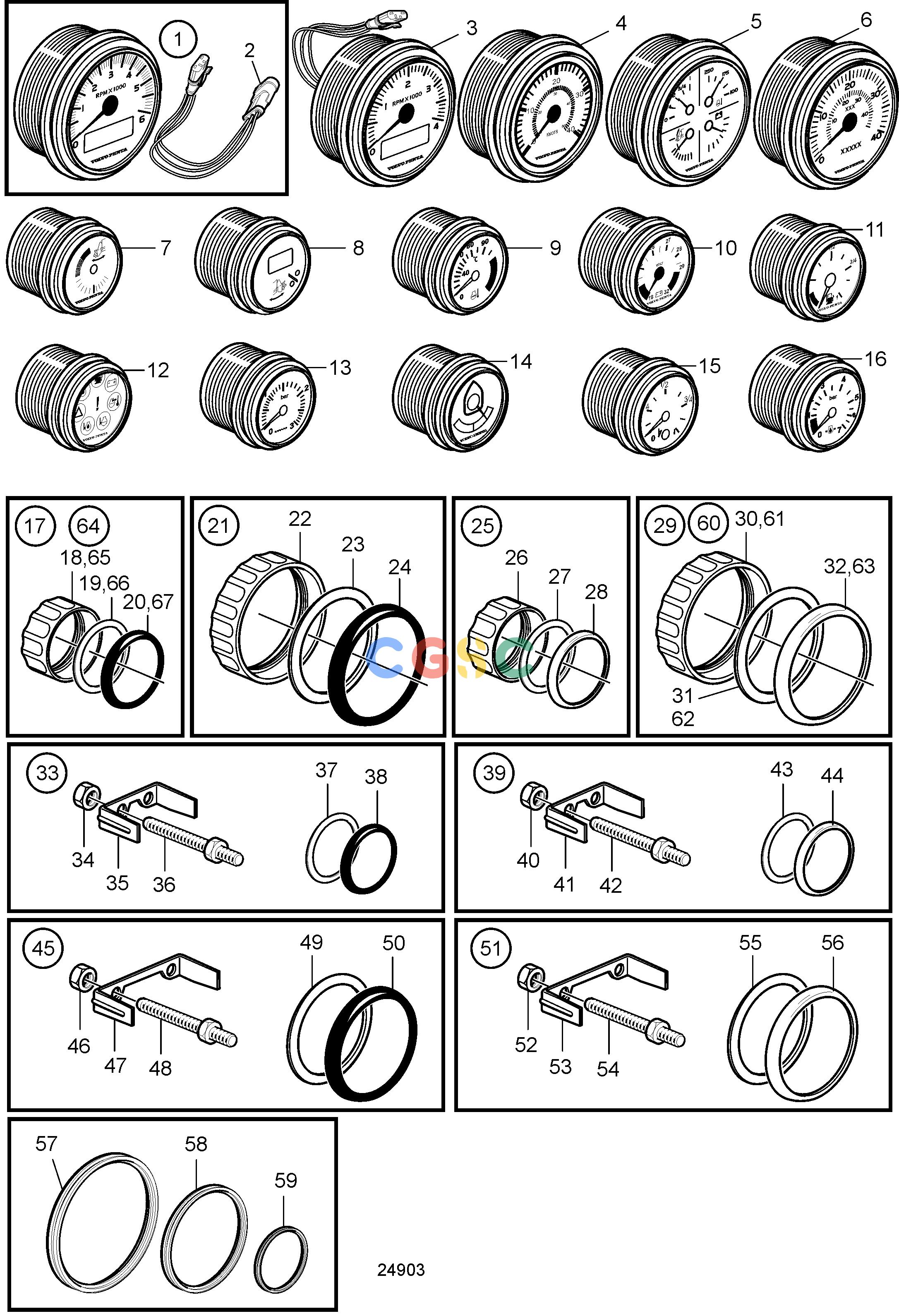

Pos.	Part No	Qty	Parts name	Comments
1.	21509650	[1]	Tachometer kit	Black
1.	21509649	[1]	Tachometer kit	White
1.	21234541	[1]	Tachometer	Black, D=85mm, Only for main helm station, Cable not included
1.	21234537	[1]	Tachometer	White, D=85mm, Only for main helm station, Cable included
1.	21234544	[1]	Tachometer kit	White, D=110mm, Only for main helm station, Cable included
1.	21234545	[1]	Tachometer kit	Black, D=110mm, Only for main helm station, Cable not included
2.	3884843	[1]	Wiring harness
3.	21234543	[1]	Tachometer kit	Black, 4000rpm, D=110mm, Cable included
3.	21234542	[1]	Tachometer kit	White, 4000rpm, D=110mm, Cable included
4.	21234531	[1]	Speedometer	Unit neutral, Black D=110mm, 0-40
4.	21234532	[1]	Speedometer	Unit neutral, White, D=110mm, 0-40
4.	21234533	[1]	Speedometer	Unit neutral, Black D=110mm, 0-60
4.	21234534	[1]	Speedometer	Unit neutral, White, D=110mm, 0-60
5.	3847876	[1]	Instrument	Black, Four in one gauge (oil pressure, coolant temp, fuel level, volt meter), D=110mm
5.	3885214	[1]	Instrument	White, Four in one gauge (oil pressure, coolant temp, fuel level, volt meter)
6.	21234525	[1]	Speedometer	Black, 0-45 mph
6.	21234528	[1]	Speedometer	White, 0-45 mph
6.	21234529	[1]	Speedometer	Black, 0-70 mph
6.	21234530	[1]	Speedometer	White, 0-70 mph
7.	3812881	[1]	Instrument	Black analog
7.	3812911	[1]	Instrument	White analog
8.	881648	[1]	Trimmer	Black digital
8.	881654	[1]	Trimmer	White digital
9.	874904	[1]	Thermometer, coolant water	Black 0-120°C
9.	874921	[1]	Thermometer, coolant water	White 0-120°C
9.	874918	[1]	Thermometer, coolant water	Black 40-250 °F
9.	874931	[1]	Thermometer, coolant water	White 40-250 °F
10.	881649	[1]	Voltmeter	Black, 12V
10.	881658	[1]	Voltmeter	White, 12V
11.	874914	[1]	Fuel gauge	Black D=52mm
11.	874926	[1]	Fuel gauge	White D=52mm
12.	874915	[1]	Instrument, alarm	Black D=52mm
12.	874927	[1]	Instrument, alarm	White D=52mm
13.	874910	[1]	Turbo pressure gauge	Black 0-3 bar
13.	874924	[1]	Turbo pressure gauge	White 0-3 bar
13.	874920	[1]	Turbo pressure gauge	Black 0-45 psi
13.	874933	[1]	Turbo pressure gauge	White 0-45 psi
14.	3812914	[1]	Rudder indicator	Black
14.	3812917	[1]	Rudder indicator	White
15.	3809992	[1]	Water level gauge	Black, Water level gauge
15.	3809993	[1]	Water level gauge	White, Water level gauge
16.	874908	[1]	Oil pressure gauge, engine	Black 0-7 bar
16.	874923	[1]	Oil pressure gauge, engine	White 0-7 bar
16.	874919	[1]	Oil pressure gauge, engine	Black 0-100 psi
16.	874932	[1]	Oil pressure gauge, engine	White 0-100 psi
17.	874709	[1]	Mounting kit
18.	874450	[1]	Attaching ring
19.	874707	[1]	Gasket
20.	874448	[1]	Ring
21.	874708	[1]	Mounting kit
22.	874449	[1]	Attaching ring
23.	874706	[1]	Gasket
24.	874447	[1]	Ring
25.	874733	[1]	Mounting kit
26.	874450	[1]	Attaching ring
27.	874707	[1]	Gasket
28.	874731	[1]	Ring
29.	874732	[1]	Mounting kit
30.	874449	[1]	Attaching ring
31.	874706	[1]	Gasket
32.	874730	[1]	Ring
33.	881611	[1]	Brace kit	Black D=52mm
34.	881610	[2]	Nut
35.	881607	[1]	Brace
36.	881609	[2]	Stud
37.	874707	[1]	Gasket
38.	874448	[1]	Ring
39.	881613	[1]	Brace kit	Chrome D=52mm
40.	881610	[2]	Nut
41.	881607	[1]	Brace
42.	881610	[2]	Nut
43.	874707	[1]	Gasket
44.	874731	[1]	Ring
45.	881612	[1]	Brace kit	Black D=85mm
46.	881610	[2]	Nut
47.	881608	[1]	Brace
48.	881609	[2]	Stud
49.	874706	[1]	Gasket
50.	874447	[1]	Ring
51.	881614	[1]	Brace kit	Chrome D=85mm
52.	881610	[2]	Nut
53.	881608	[1]	Brace
54.	881609	[2]	Stud
55.	874706	[1]	Gasket
56.	874730	[1]	Ring
57.	3886791	[1]	X-ring	For flush mounting., D=110mm
58.	874843	[1]	X-ring	For flush mounting., D=85mm
59.	874844	[1]	X-ring	For flush mounting., D=52mm
60.	3885216	[1]	Mounting kit	Chrome D=110mm
61.	3884098	[1]	Attaching ring
62.	3884103	[1]	Gasket
63.	3884096	[1]	Ring
64.	3847888	[1]	Mounting kit	Black D=110mm
65.	3847887	[1]	Ring
66.	3884103	[1]	Gasket
67.	3884098	[1]	Attaching ring
