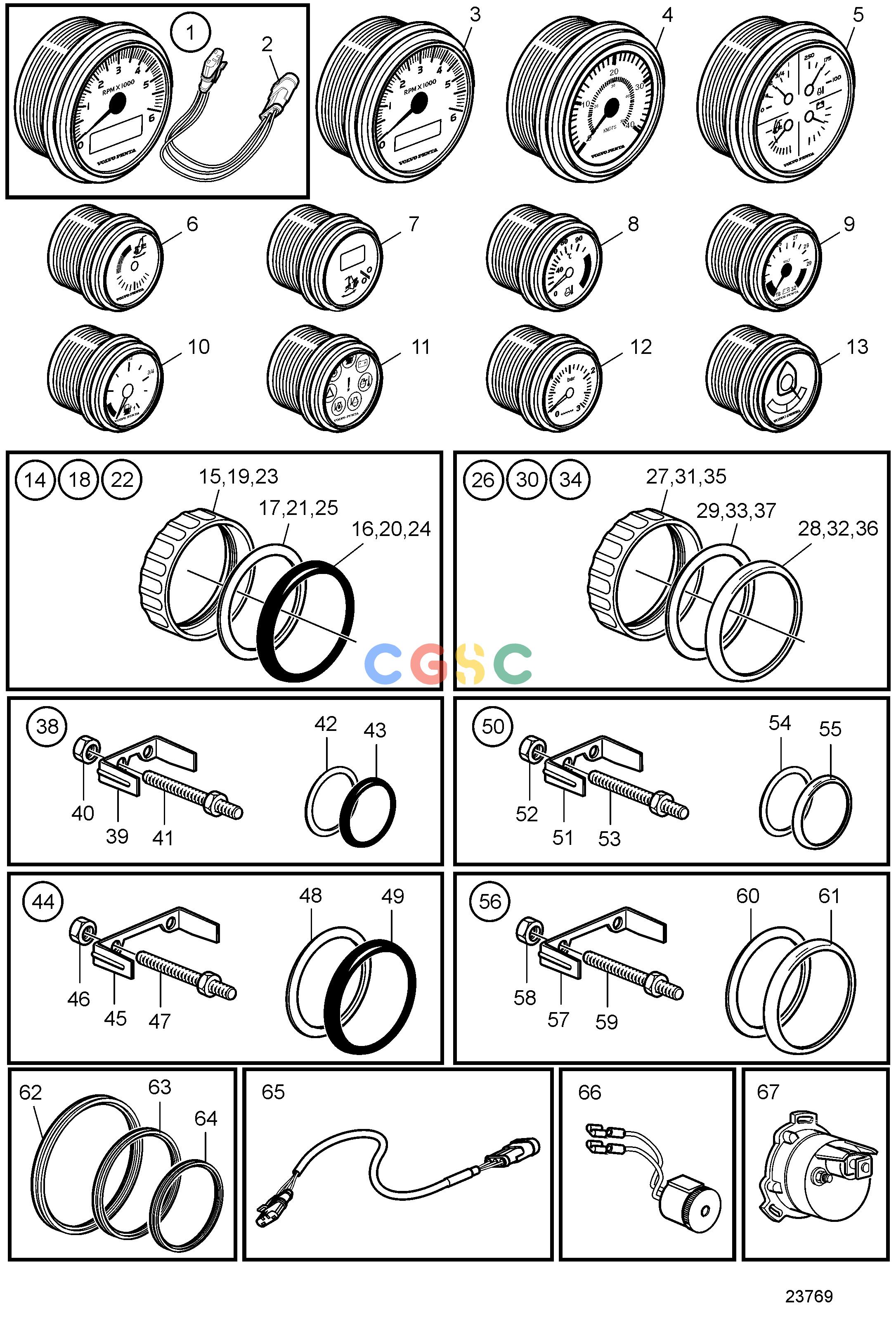

Pos.	Part No	Qty	Parts name	Comments
1.	3847841	[1]	Tachometer kit	Black, D=110mm, Only for main helm station, Cable not included
1.	3847844	[1]	Tachometer kit	White, D=110mm, Only for main helm station, Cable not included
1.	3885696	[1]	Tachometer	Black, D=85mm, Only for main helm station, Cable included
1.	3885697	[1]	Tachometer	White D=85mm, Only for main helm station, Cable included
2.	3884843	[1]	Wiring harness
3.	881647	[1]	Tachometer	Engine speed/hours, Black D=85mm, Only for secondary helm station
3.	881653	[1]	Tachometer	Engine speed/hours, White D=85mm, Only for secondary helm station
3.	3586222	[1]	Kit	Engine speed/hours, text messages, Black D=85mm, Only for secondary helm station
3.	3586223	[1]	Kit	Engine speed/hours, text messages, White D=85mm, Only for secondary helm station
4.	874916	[1]	Speedometer	Black 0-20 knots
4.	874917	[1]	Speedometer	Black 0-40 knots
4.	881645	[1]	Speedometer	Black 0-60 knots
4.	874929	[1]	Speedometer	White 0-20 Knots
4.	874930	[1]	Speedometer	White 0-40 Knots
4.	881650	[1]	Speedometer	White 0-60 Knots
4.	3847867	[1]	Speedometer	Unit neutral, White, D=110mm, 0-40
4.	3847864	[1]	Speedometer	Unit neutral, Black, D=110mm, 0-40
4.	3847873	[1]	Speedometer	Unit neutral, White, D=110mm, 0-60
4.	3847870	[1]	Speedometer	Unit neutral, Black, D=110mm, 0-60
5.	3885214	[1]	Instrument	Four in one gauge (oil pressure, coolant temp, fuel level, volt meter), White
5.	3885215	[1]	Instrument	Four in one gauge (trim analog, coolant temp, fuel level, volt meter), White
5.	3847876	[1]	Instrument	Four in one gauge (oil pressure, coolant temp, fuel level, volt meter), D=110mm, Black
5.	3847879	[1]	Instrument	Four in one gauge (trim analog, coolant temp, fuel level, volt meter), D=110mm, Black
6.	3812881	[1]	Instrument	Black analog
6.	3812911	[1]	Instrument	White analog
7.	881648	[1]	Trimmer	Black digital
7.	881654	[1]	Trimmer	White digital
8.	874904	[1]	Thermometer, coolant water	Black 0-120°C
8.	874921	[1]	Thermometer, coolant water	White 0-120°C
8.	874918	[1]	Thermometer, coolant water	Black 40-250 °F
8.	874931	[1]	Thermometer, coolant water	White 40-250 °F
9.	881649	[1]	Voltmeter	Black
9.	881658	[1]	Voltmeter	White
10.	874914	[1]	Fuel gauge	Black D=52mm
10.	874926	[1]	Fuel gauge	White D=52mm
11.	874915	[1]	Instrument, alarm	Black D=52mm
11.	874927	[1]	Instrument, alarm	White D=52mm
12.	874910	[1]	Turbo pressure gauge	Black 0-3 bar
12.	874920	[1]	Turbo pressure gauge	Black 0-45 psi
12.	874924	[1]	Turbo pressure gauge	White 0-3 bar
12.	874933	[1]	Turbo pressure gauge	White 0-45 psi
13.	3812914	[1]	Rudder indicator	Black
13.	3812917	[1]	Rudder indicator	White
14.	874709	[1]	Mounting kit	Black D=52mm
15.	874450	[1]	Attaching ring
16.	874448	[1]	Ring
17.	874707	[1]	Gasket
18.	874708	[1]	Mounting kit	Black D=85mm
19.	874449	[1]	Attaching ring
20.	874447	[1]	Ring
21.	874706	[1]	Gasket
22.	3847888	[1]	Mounting kit	Black D=110mm
23.	3884098	[1]	Attaching ring
24.	3847887	[1]	Ring
25.	3884103	[1]	Gasket
26.	874733	[1]	Mounting kit	Chrome D=52mm
27.	874450	[1]	Attaching ring
28.	874731	[1]	Ring
29.	874707	[1]	Gasket
30.	874732	[1]	Mounting kit	Chrome D=85mm
31.	874449	[1]	Attaching ring
32.	874730	[1]	Ring
33.	874706	[1]	Gasket
34.	3885216	[1]	Mounting kit	Chrome D=110mm
35.	3884098	[1]	Attaching ring
36.	3884096	[1]	Ring
37.	3884103	[1]	Gasket
38.	881611	[1]	Brace kit	Black D=52mm
39.	881607	[1]	Brace
40.	881610	[2]	Nut
41.	881609	[2]	Stud
42.	874707	[1]	Gasket
43.	874448	[1]	Ring
44.	881612	[1]	Brace kit	Black D=85mm
45.	881608	[1]	Brace
46.	881610	[2]	Nut
47.	881609	[2]	Stud
48.	874706	[1]	Gasket
49.	874447	[1]	Ring
50.	881613	[1]	Brace kit	Chrome D=52mm
51.	881607	[1]	Brace
52.	881610	[2]	Nut
53.	881609	[2]	Stud
54.	874707	[1]	Gasket
55.	874731	[1]	Ring
56.	881614	[1]	Brace kit	Chrome D=85mm
57.	881608	[1]	Brace
58.	881610	[2]	Nut
59.	881609	[2]	Stud
60.	874706	[1]	Gasket
61.	874730	[1]	Ring
62.	3886791	[1]	X-ring	For flush mounting., D=110mm
63.	874844	[1]	X-ring	For flush mounting., D=85mm
64.	874843	[1]	X-ring	For flush mounting., D=52mm
65.	874759	[1]	Extension cable	L=1000mm
65.	3807043	[1]	Extension cable	L=3000mm
66.	3817974	[1]	Alarm
67.	3809099	[1]	Rudder position sens	Rudder indicator
