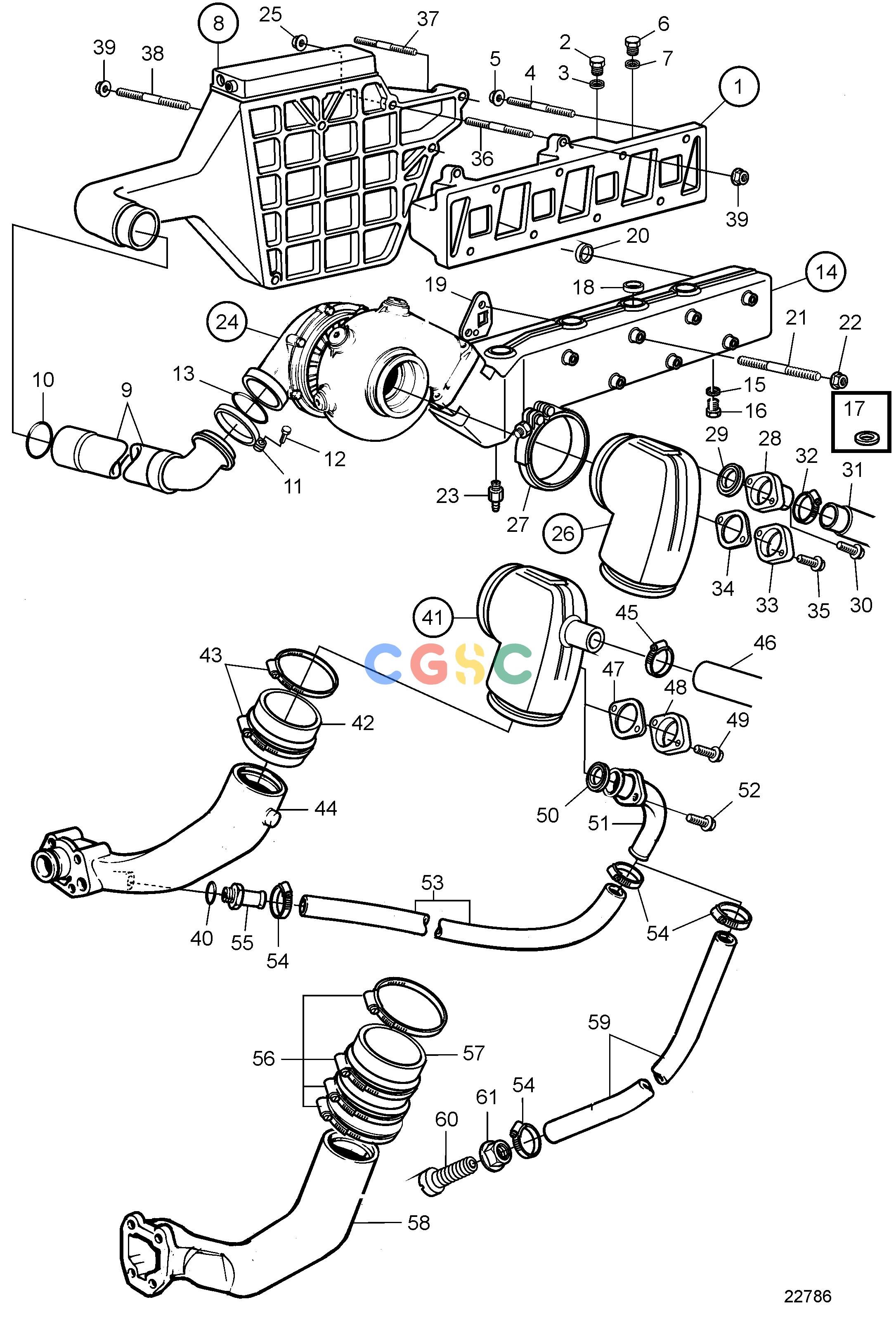

| 1. |
859299
|
[1] |
Inlet pipe
|
|
| 2. |
960634
|
[4] |
Plug
|
|
| 3. |
947627
|
[4] |
Gasket
|
|
| 4. |
980226
|
[6] |
Stud
|
|
| 5. |
945408
|
[6] |
Flange nut
|
|
| 6. |
960632
|
[1] |
Plug
|
|
| 7. |
11998
|
[1] |
Gasket
|
|
| 8. |
|
|
|
|
| 9. |
838693
|
[1] |
Connecting pipe
|
|
| 10. |
864723
|
[1] |
Sealing ring
|
|
| 11. |
838864
|
[1] |
V-clamp
|
|
| 12. |
947542
|
[1] |
Flange screw
|
|
| 13. |
967944
|
[1] |
O-ring
|
|
| 14. |
861619
|
[1] |
Exhaust pipe
|
Repl by 876953
|
| 14. |
876953
|
[1] |
Exhaust pipe
|
Replaced by 3581549
|
| 14. |
3581549
|
[1] |
Exhaust pipe
|
|
| 15. |
957181
|
[1] |
Gasket
|
|
| 16. |
960632
|
[1] |
Plug
|
|
| 17. |
944563
|
[1] |
Spacer washer
|
|
| 18. |
946780
|
[7] |
Cap plug
|
For 861619
|
| 19. |
876144
|
[2] |
Gasket kit
|
|
| 20. |
838766
|
[1] |
Sealing ring
|
|
| 21. |
953007
|
[1] |
Stud
|
For earlier version of expansion tank., L=150mm
|
| 21. |
980835
|
[1] |
Stud
|
For later version of expansion tank., L=155mm
|
| 21. |
953003
|
[1] |
Stud
|
L=130mm
|
| 21. |
953001
|
[1] |
Stud
|
For later version of expansion tank., L=120mm
|
| 21. |
952999
|
[4] |
Stud
|
L=110mm
|
| 21. |
953005
|
[1] |
Stud
|
For later version of expansion tank., L=140mm
|
| 22. |
971095
|
[8] |
Flange nut
|
|
| 23. |
949918
|
[1] |
Shut-off cock
|
|
| 24. |
|
|
|
|
| 27. |
842993
|
[1] |
V-clamp
|
|
| 36. |
953049
|
[2] |
Stud
|
L=50mm
|
| 37. |
984130
|
[1] |
Stud
|
L=110mm (980227)
|
| 38. |
981440
|
[1] |
Stud
|
L=185mm
|
| 39. |
945408
|
[4] |
Flange nut
|
|
| 40. |
958228
|
[1] |
O-ring
|
|
| 41. |
860656
|
[1] |
Pipe elbow
|
D=32mm, repl by 861289
|
| 41. |
861289
|
[1] |
Exhaust pipe elbow
|
D=38mm
|
| 42. |
860396
|
[1] |
Exhaust hose
|
|
| 43. |
853012
|
[4] |
Hose clamp
|
|
| 44. |
|
|
|
AD31/DP, see group 44
|
| 45. |
994561
|
[1] |
Hose clamp
|
For 860656
|
| 45. |
994562
|
[1] |
Hose clamp
|
For 861289
|
| 46. |
860828
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow., I.D=32mm, for 860656
|
| 46. |
3581065
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow., I.D=38mm, for 861289
|
| 47. |
859002
|
[1] |
Gasket
|
|
| 48. |
844093
|
[1] |
Flange
|
|
| 49. |
946544
|
[2] |
Flange screw
|
|
| 50. |
842913
|
[1] |
Sealing ring
|
|
| 51. |
844258
|
[1] |
Coolant pipe
|
|
| 52. |
946544
|
[2] |
Flange screw
|
|
| 53. |
944386
|
[1] |
Rubber hose
|
AD31/DP, L=720mm
|
| 54. |
961669
|
[2] |
Hose clamp
|
|
| 55. |
873221
|
[1] |
Nipple
|
|
| 56. |
853012
|
[4] |
Hose clamp
|
|
| 57. |
860396
|
[1] |
Exhaust hose
|
|
| 58. |
|
|
|
AD31/SX, see group 44
|
| 59. |
944386
|
[1] |
Rubber hose
|
AD31/SX
|
| 60. |
819455
|
[1] |
Hull fitting
|
AD31/SX
|
| 61. |
836879
|
[1] |
Nut
|
AD31/SX
|
