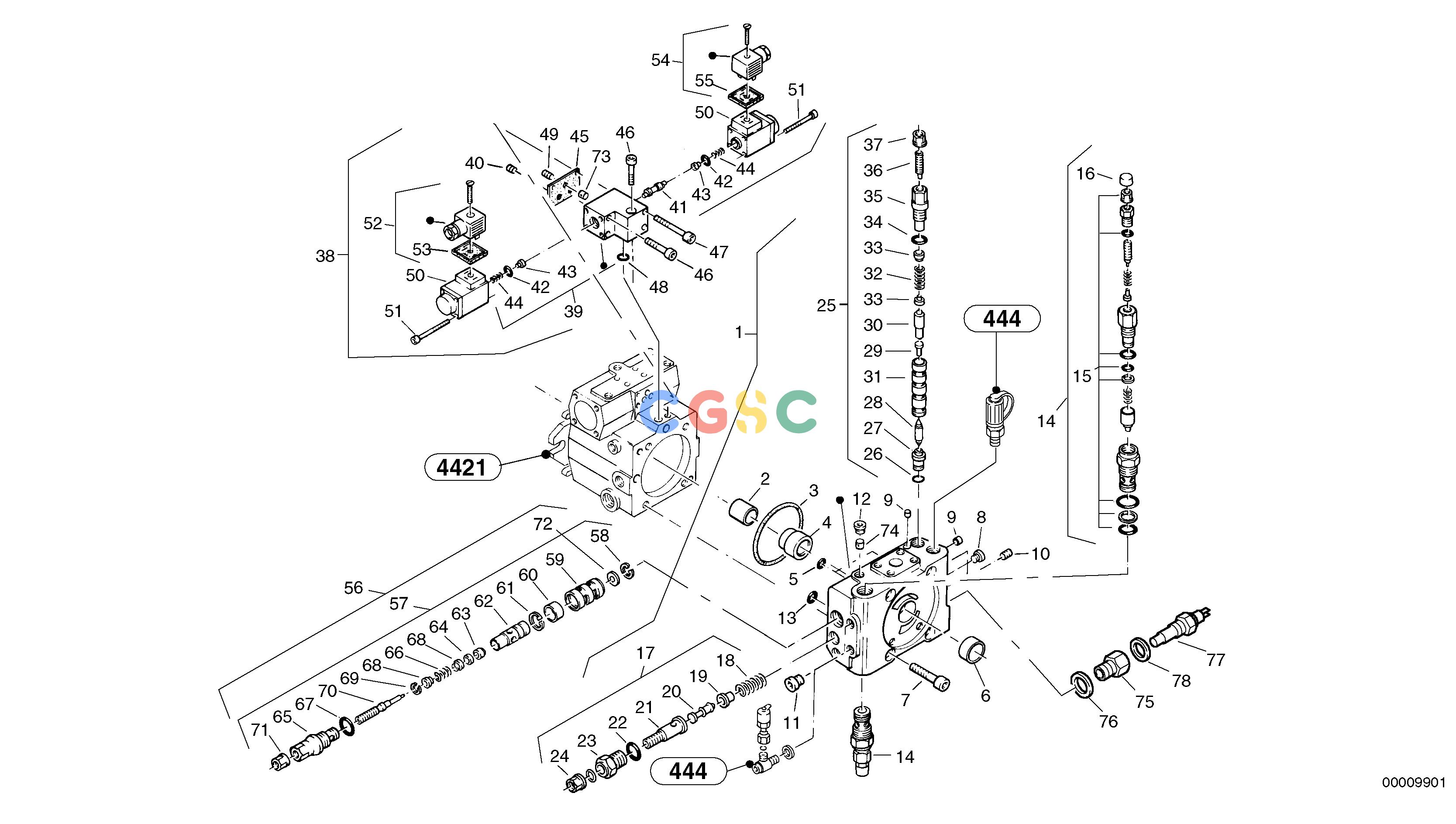

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ZM2906517 | [1] | Conn Plate | |
| 2. | ZM2289681 | [1] | Bearing bushing | |
| 3. | VOE11708683 | [1] | O-ring | 113,97x2,62 |
| 4. | ZM2902442 | [1] | Bushing | |
| 5. | ZM2119000 | [2] | O-ring | 9,25x1,78 |
| 6. | ZM2902986 | [1] | Bearing bushing | |
| 7. | ZM7096323 | [4] | Screw | M16x90 |
| 8. | ZM2271650 | [3] | Lock plug | M8x1 |
| 9. | ZM2270310 | [2] | Contact breaking plug | M6 |
| 10. | ZM2161760 | [1] | Plug | M8 |
| 11. | VOE15103768 | [2] | Plug | M12x1,5 |
| 12. | VOE11702857 | [1] | Plug | M10x1 |
| 13. | ZM2270740 | [2] | O-ring | 12,42x1,78 |
| 14. | VOE11715191 | [2] | Valve | |
| 15. | ZM2905633 | [1] | Sealing Kit | |
| 16. | ZM2289551 | [1] | Cap | |
| 17. | VOE11715192 | [1] | Valve | |
| 18. | ZM2902125 | [1] | Thrust spring | |
| 19. | ZM2906508 | [1] | Spring plate | |
| 20. | ZM2290239 | [1] | Piston | |
| 21. | VOE11715192 | [1] | Valve | |
| 22. | VOE11702858 | [1] | O-ring | 23,47x2,62 |
| 23. | ZM2902124 | [1] | Screw | |
| 24. | VOE15179595 | [1] | Nut | M10x1 |
| VOE17465906 | [1] | Sealing kit | ||
| 25. | VOE11997663 | [1] | Pressure retaining valve | |
| 26. | VOE11997670 | [1] | O-ring | 6,07x1,78 |
| 27. | ZM2289513 | [1] | Valve seat | |
| 28. | ZM2289668 | [1] | Piston | |
| 29. | ZM2289667 | [1] | Piston | |
| 30. | ZM2289555 | [1] | Piston | |
| 31. | ZM2289554 | [1] | Bush | |
| 32. | ZM2906509 | [1] | Spring | |
| 33. | ZM2900118 | [2] | Spring plate | |
| 34. | ZM2902447 | [1] | O-ring | 12,37x2,62 |
| 35. | ZM2289553 | [1] | Screw | |
| 36. | ZM2289672 | [1] | Screw | |
| 37. | VOE14212124 | [1] | Nut | M8 |
| 38. | ZM2901269 | [1] | 4/3-way valve | |
| 39. | ZM2904799 | [1] | 4/3-way valve | |
| 40. | ZM2161770 | [2] | Plug | M5 |
| 41. | ZM2289869 | [1] | Piston | |
| 42. | ZM2161380 | [2] | O-ring | 15,6x1,78 |
| 43. | ZM2161350 | [2] | Spring Disc | |
| 44. | VOE15103780 | [2] | Spring | |
| 45. | VOE11701114 | [1] | Gasket | |
| 46. | ZM8096552 | [3] | Screw | M6x35 |
| 47. | ZM2903796 | [2] | Screw | M6x70 |
| 48. | VOE11708337 | [1] | O-ring | 6,02x2,62 |
| 49. | ZM7096431 | [1] | Screw Nail | M8x8 |
| 50. | ZM2291083 | [2] | Magnet | |
| 51. | ZM8096824 | [4] | Screw | |
| 52. | VOE11306801 | [1] | Socket | |
| 53. | ZM2251940 | [1] | Gasket | |
| 54. | VOE15030501 | [1] | Socket | |
| 55. | ZM2251940 | [1] | Gasket | |
| 56. | ZM2289699 | [1] | Cartridge | |
| 57. | VOE15105540 | [1] | Valve | |
| 58. | ZM2289704 | [1] | Ring | 16x1 |
| 59. | ZM2905641 | [1] | Pipe | |
| 60. | ZM2904797 | [1] | Ring | |
| 61. | ZM2161510 | [1] | Seal | 17x1 |
| 62. | ZM2904795 | [1] | Piston | |
| 63. | ZM2289705 | [1] | Nut | M4 |
| 64. | ZM2285847 | [1] | Washer | |
| 65. | ZM2289700 | [1] | Screw | |
| 66. | ZM2271380 | [1] | Spring | |
| 67. | VOE11997673 | [1] | O-ring | 29,82x2,62 |
| 68. | ZM2271370 | [2] | Spring plate | |
| 69. | ZM2271460 | [1] | Safety ring | |
| 70. | ZM2915105 | [1] | Screwed pin | |
| 71. | VOE14212124 | [1] | Nut | M8 |
| 72. | ZM2289882 | [1] | Throttle sleeve | |
| 73. | ZM2270350 | [1] | Nozzle | 0,80 mm |
| 74. | ZM2289504 | [1] | Nozzle | 1,80 mm |
| 75. | ZM2813125 | [1] | Reducing | 1880031-/1890045- |
| 76. | ZM7099512 | [1] | Seal | A18x22, 1880031-/1890045- |
| 77. | VOE11305367 | [1] | Temperature sensor | 1880031-/1890045- |
| 78. | ZM7099503 | [1] | Seal | A14x18, 1880031-/1890045- |
