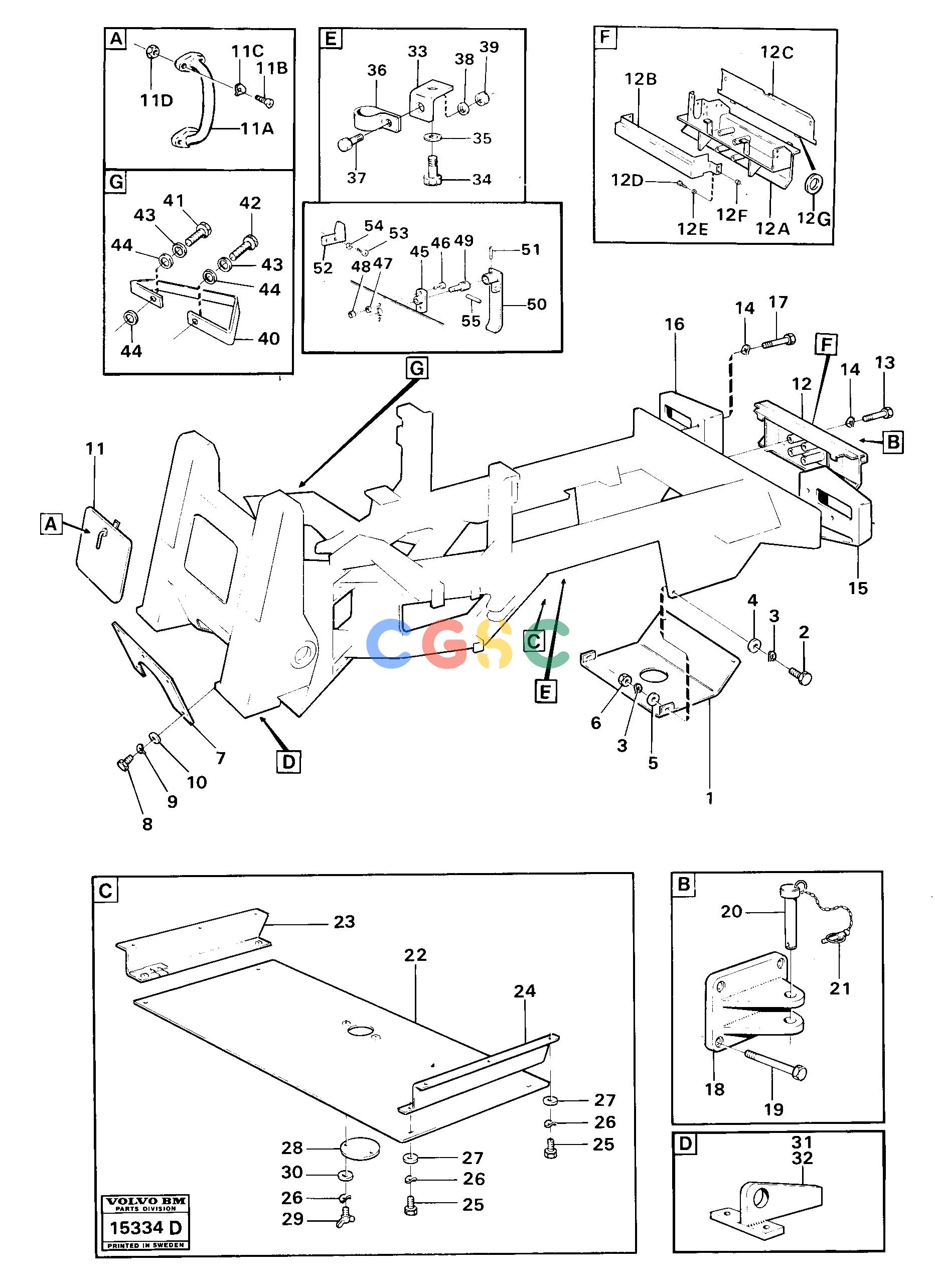

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4. | VOE13960145 | [0004] | Washer | |
| 32. | [0001] | Tow eyelet | H | |
| 33. | [0001] | Anchorage | PROD.NR 33105 | |
| None | ||||
| 34. | VOE13955294 | [0001] | Screw | PROD.NR 33105 |
| 35. | VOE13941907 | [0001] | Washer | PROD.NR 33105 |
| 36. | VOE952638 | [0001] | Clamp | PROD.NR 33105 |
| 37. | VOE13955271 | [0001] | Screw | PROD.NR 33105 |
| 38. | VOE13941906 | [0001] | Washer | PROD.NR 33105 |
| 39. | VOE13955781 | [0001] | Nut | PROD.NR 33105 |
| 40. | VOE4854504 | [0002] | Leaf spring | SER NO 3888- |
| 5. | VOE60110353 | [0002] | Washer | |
| 41. | VOE970945 | [0002] | Hexagon screw | SER NO 3888- |
| 42. | VOE13970944 | [0002] | Hexagon screw | SER NO 3888- |
| 43. | VOE941908 | [0004] | Spring washer | SER NO 3888- |
| 44. | VOE13960143 | [0010] | Washer | SER NO 3888- |
| 45. | VOE4932180 | [0001] | Attachment | PROD NO 33106, 33107 |
| 46. | VOE956314 | [0002] | Cross recessed sunk screw | PROD NO 33106, 33107 |
| 47. | VOE13941906 | [0002] | Washer | PROD NO 33106, 33107 |
| 48. | VOE13955781 | [0002] | Nut | PROD NO 33106, 33107 |
| 49. | VOE4932522 | [0001] | Shaft | PROD NO 33106, 33107 |
| VOE1577211 | [0002] | Bushing | PROD NO 33106, 33107 | |
| 6. | VOE13971090 | [0002] | Lock nut | PROD NO 33100,33105 |
| 50. | VOE4932178 | [0001] | Handle | PROD NO 33106, 33107 |
| 51. | VOE13951965 | [0001] | Spring pin | PROD NO 33106, 33107 |
| 52. | VOE4932523 | [0001] | Lock fitting | PROD NO 33106, 33107 |
| 53. | VOE13955295 | [0002] | Screw | PROD NO 33106, 33107 |
| 54. | VOE13960141 | [0002] | Washer | PROD NO 33106, 33107 |
| 55. | VOE951994 | [0001] | Spring pin | PROD NO 33106, 33107 |
| VOE13971072 | [0002] | Hexagon nut | PROD NO 33106,33107 | |
| 7. | VOE4926974 | [0001] | Protecting plate | PROD NO 33100, 33105 |
| VOE4929743 | [0001] | Protecting plate | PROD NO 33106, 33107 | |
| 1. | VOE4740559 | [0001] | Protecting plate | PROD NO 33100,33105 |
| 8. | VOE955297 | [0005] | Hexagon screw | |
| 9. | VOE13941907 | [0005] | Washer | |
| 10. | VOE13955894 | [0005] | Washer | |
| 11. | VOE4926968 | [0001] | Hatch | |
| 11A. | VOE795451 | [0001] | Handle | |
| 11B. | VOE956164 | [0004] | Cross recessed sunk screw | |
| 11C. | VOE13941904 | [0004] | Washer | |
| 11D. | VOE955779 | [0004] | Hexagon nut | |
| 12. | VOE4925055 | [0001] | Load weight | PROD NO 33100, 33105. |
| 12A. | [0001] | Load weight | PROD NO 33106, 33107. | |
| VOE4929666 | [0001] | Protecting plate | PROD NO 33106,33107 | |
| None | ||||
| 12B. | [0001] | Box | PROD NO 33106, 33107. | |
| None | ||||
| 12C. | VOE4932525 | [0001] | Hatch | PROD NO 33106, 33107. |
| 12D. | VOE13955294 | [4] | Screw | PROD NO 33106, 33107. |
| 12E. | VOE13960141 | [4] | Washer | PROD NO 33106, 33107. |
| 12F. | VOE946035 | [4] | Lock nut | PROD NO 33106, 33107. |
| 12G. | VOE4936344 | [2] | Washer | SER NO 4747 - |
| 13. | VOE13955378 | [4] | Screw | |
| 14. | VOE941912 | [10] | Spring washer | |
| 15. | VOE4925058 | [1] | Counterweight | V |
| 2. | VOE13970972 | [0004] | Hexagon screw | |
| 16. | VOE4925059 | [0001] | Counterweight | H |
| 17. | VOE955364 | [0006] | Hexagon screw | |
| 18. | VOE4739905 | [0001] | Rear hitch | |
| 19. | VOE955380 | [0004] | Hexagon screw | |
| 20. | VOE4711956 | [0001] | Towing pin | |
| 21. | VOE729895 | [0001] | Lock Spring | |
| 22. | VOE4928635 | [0001] | Plate | |
| 23. | VOE4932560 | [0001] | Plate | V |
| 24. | VOE4932558 | [0001] | Plate | H |
| 25. | VOE13955294 | [0010] | Screw | SER NO -3367 |
| 3. | VOE940280 | [0006] | Spring washer | |
| VOE13955294 | [0008] | Screw | SER NO 3368 - | |
| 26. | VOE13941907 | [0012] | Washer | SER NO -3367 |
| VOE13941907 | [0010] | Washer | SER NO 3368 - | |
| 27. | VOE13955894 | [0010] | Washer | SER NO -1502 |
| VOE13960141 | [0010] | Washer | SER NO 1503 - 3367 | |
| VOE13960141 | [0008] | Washer | SER NO 3368- | |
| 28. | VOE4927559 | [0001] | Hatch | |
| 29. | VOE13965044 | [0002] | Wing screw | |
| 30. | VOE13955894 | [0002] | Washer | |
| 31. | [0001] | Tow eyelet | V |
