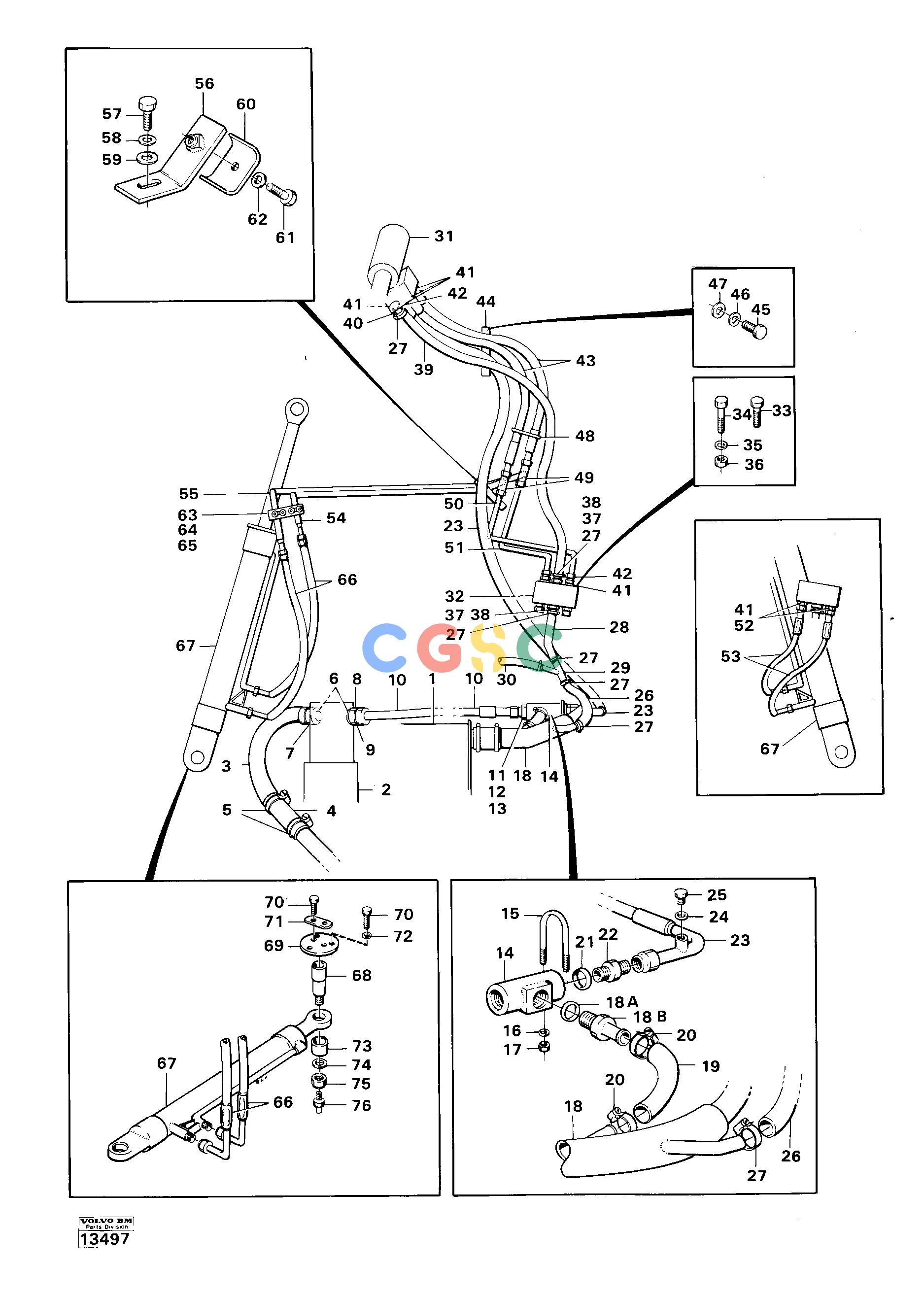

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 5. | VOE943475 | [2] | Hose clamp | |
| 43. | VOE931771 | [0002] | Hose assembly | |
| VOE990739 | [0001] | O-ring | ||
| 44. | VOE4763759 | [0001] | Retainer | |
| 45. | VOE940199 | [0002] | Hexagon screw | |
| 46. | VOE13941907 | [0002] | Washer | |
| 47. | VOE13955894 | [0002] | Washer | |
| 48. | VOE4881440 | [0001] | Cable tie | |
| 49. | VOE957126 | [0002] | T-nipple | |
| 50. | VOE4927580 | [0001] | Tube | |
| 51. | VOE4927578 | [0001] | Tube | |
| 52. | VOE957032 | [0002] | Nipple | |
| 6. | VOE14013071 | [2] | Sealing washer | |
| 53. | VOE931620 | [0002] | Hose assembly | |
| VOE990738 | [0002] | O-ring | ||
| 54. | VOE4763753 | [0001] | Tube | |
| 55. | VOE4763751 | [0001] | Tube | |
| 56. | VOE4763745 | [0001] | Anchorage | |
| 57. | VOE970945 | [0001] | Hexagon screw | |
| 58. | VOE941908 | [0001] | Spring washer | |
| 59. | VOE976945 | [0001] | Washer | |
| 60. | [0001] | Clamp | ||
| 61. | VOE60111880 | [0001] | Hexagon screw | |
| 62. | VOE13941907 | [0001] | Washer | |
| 7. | VOE957037 | [1] | Nipple | SER NO -1142 |
| 63. | VOE4762999 | [0002] | Clamp | |
| 64. | VOE13941906 | [0004] | Washer | |
| VOE955892 | [0004] | Plain washer | SER NO 1113- | |
| 65. | VOE13955781 | [0004] | Nut | |
| 66. | VOE931616 | [0002] | Hose assembly | |
| VOE990738 | [1] | O-ring | ||
| 67. | VOE4739055 | [2] | Hydraulic cylinder | |
| 68. | VOE4926469 | [4] | Pin | |
| 69. | VOE4740397 | [4] | Washer | |
| 70. | VOE13955295 | [20] | Screw | |
| 71. | VOE4740433 | [4] | Lock washer | |
| VOE944041 | [1] | Nipple | SER NO 1143- | |
| 72. | VOE13941907 | [12] | Washer | |
| 73. | VOE4740399 | [0004] | Bushing | |
| 74. | VOE955903 | [0004] | Plain washer | |
| 75. | VOE963111 | [0004] | Lock nut | |
| 76. | VOE914167 | [0004] | Lubricating nipple | |
| 8. | VOE784531 | [1] | Bushing | |
| 1. | [1] | Tank | ||
| 9. | VOE957190 | [1] | Gasket | SER NO -1142 |
| None | ||||
| VOE14013070 | [1] | Sealing washer | SER NO 1143- | |
| 10. | VOE13931701 | [1] | Hose assembly | |
| VOE4880494 | [1] | O-ring | ||
| 11. | VOE958228 | [1] | O-ring | |
| 12. | VOE14013070 | [1] | Sealing washer | |
| 13. | VOE957035 | [1] | Nipple | |
| 14. | VOE4786308 | [1] | Volume control valve | |
| 15. | VOE4760181 | [1] | Clamp | |
| 16. | VOE13941907 | [1] | Washer | |
| 17. | VOE955782 | [1] | Hexagon nut | |
| 2. | [1] | Fuel filling pump | SEE GROUP 91 | |
| 18. | [1] | Pipe | ||
| None | ||||
| 18A. | VOE930014 | [1] | Nipple | |
| 18B. | VOE958228 | [1] | O-ring | |
| 19. | VOE941799 | [1] | Hose | |
| 20. | VOE943475 | [2] | Hose clamp | |
| 21. | VOE958228 | [0001] | O-ring | |
| 22. | VOE926812 | [0001] | Nipple | |
| 23. | VOE4763756 | [0001] | Hose assembly | |
| 24. | VOE958225 | [0001] | O-ring | SER NO -1125 |
| 25. | VOE941371 | [0001] | Plug | SER NO -1125 |
| 3. | VOE4739591 | [1] | Intake pipe | |
| VOE930032 | [1] | Testing nipple | SER NO 1126- | |
| 26. | VOE14016472 | [1] | Oil hose | |
| 27. | VOE13943474 | [6] | Hose clamp | |
| 28. | VOE14016472 | [1] | Oil hose | |
| 29. | VOE4927195 | [1] | Tube | |
| 30. | [1] | Hose | SEE GROUP 91 | |
| 31. | [1] | Steering column | ||
| 32. | VOE4824012 | [1] | Valve | |
| 33. | VOE941762 | [2] | Hex. socket screw | L=55 |
| 34. | VOE959233 | [1] | Allen Hd Screw | L=80 |
| 4. | VOE943826 | [1] | Hose | |
| 35. | VOE13941907 | [3] | Washer | |
| 36. | VOE955782 | [3] | Hexagon nut | |
| 37. | VOE928959 | [2] | Nipple | |
| 38. | VOE958228 | [2] | O-ring | |
| 39. | VOE14016472 | [0001] | Oil hose | |
| 40. | VOE930008 | [0001] | Nipple | |
| 41. | VOE958227 | [0008] | O-ring | |
| 42. | VOE957033 | [0003] | Nipple |
