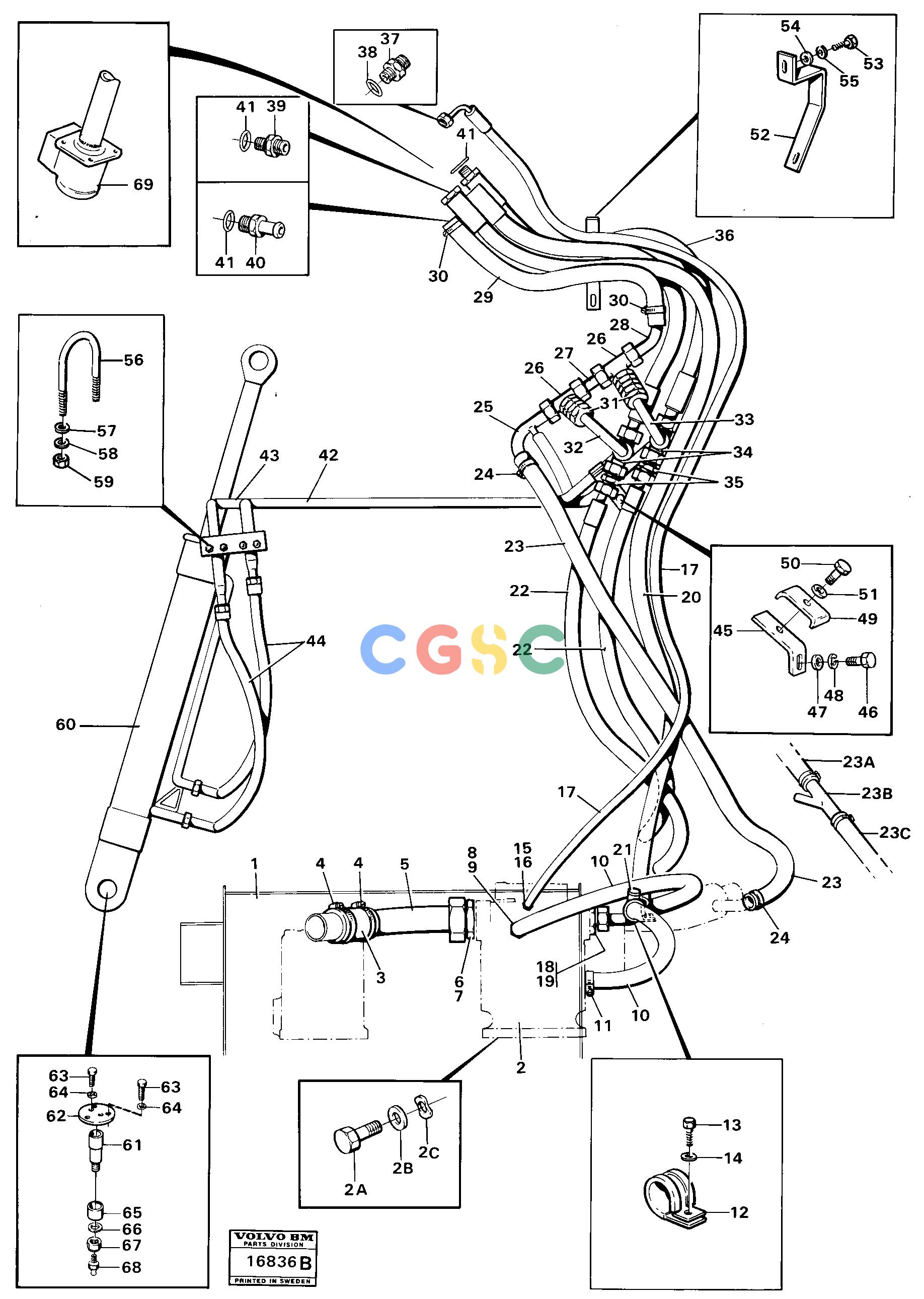

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | [1] | Tank | ||
| None | ||||
| 2. | VOE4929858 | [1] | Piston pump | |
| 2A. | VOE13970972 | [2] | Hexagon screw | |
| 2B. | VOE60110353 | [2] | Washer | |
| 2C. | VOE940280 | [2] | Spring washer | |
| 3. | VOE4929667 | [1] | Suction hose | |
| 4. | VOE930810 | [2] | Hose clamp | |
| 5. | VOE4932111 | [1] | Tube | |
| 6. | VOE963983 | [1] | Nipple | |
| 7. | VOE964119 | [1] | O-ring | |
| 8. | VOE4929654 | [1] | Nipple | |
| 9. | VOE943563 | [1] | O-ring | |
| 10. | VOE14016472 | [REQ] | Oil hose | |
| 11. | VOE926244 | [0002] | Hose clamp | |
| 12. | VOE943717 | [0001] | Clamp | |
| 13. | VOE940199 | [0001] | Hexagon screw | |
| 14. | VOE13941907 | [0001] | Washer | |
| 15. | VOE13963975 | [0001] | Nipple | |
| 16. | VOE964111 | [0001] | O-ring | |
| 17. | VOE932355 | [0001] | Hose assembly | |
| 18. | VOE4929653 | [0001] | Nipple | |
| 19. | VOE964117 | [0001] | O-ring | |
| 20. | VOE932279 | [0001] | Hose assembly | |
| 21. | VOE930032 | [1] | Testing nipple | |
| 22. | VOE931633 | [2] | Hose assembly | |
| 23. | VOE14016472 | [REQ] | Oil hose | L = 560, SER NO - 3967 |
| 23A. | VOE14016472 | [REQ] | Oil hose | L= 1300, SER NO 3968 - |
| 23B. | VOE4927195 | [1] | Tube | SER NO 3968 - |
| 23C. | VOE14016472 | [REQ] | Oil hose | L = 670, SER NO 3968 - |
| 24. | VOE926244 | [2] | Hose clamp | |
| 25. | VOE4932250 | [1] | Pipe elbow | SER NO - 3967 |
| 26. | VOE946391 | [2] | T-nipple | SER NO - 3967 |
| 27. | [1] | Pipe | ||
| 28. | VOE4932259 | [1] | Pipe elbow | SER NO - 3967 |
| 29. | VOE14016472 | [REQ] | Oil hose | |
| 30. | VOE926244 | [2] | Hose clamp | |
| 31. | VOE4880718 | [2] | Non-return valve | SER NO - 3967 |
| 32. | VOE4932257 | [0001] | Pipe elbow | |
| None | SER NO -3100 | |||
| VOE4932257 | [0002] | Pipe elbow | ||
| None | SER NO 3101 - 3967 | |||
| 33. | VOE4932257 | [0001] | Pipe elbow | SER NO -3100 |
| 34. | VOE4880717 | [0002] | Nipple | SER NO - 3967 |
| VOE957126 | [0002] | T-nipple | SER NO 3968 - | |
| 35. | VOE4880719 | [0002] | Reduction | |
| 36. | VOE931771 | [0002] | Hose assembly | |
| VOE990739 | [0002] | O-ring | ||
| 37. | VOE13963958 | [0001] | Nipple | |
| 38. | VOE958225 | [0001] | O-ring | |
| 39. | VOE957033 | [0001] | Nipple | |
| 40. | VOE930008 | [0001] | Nipple | |
| 41. | VOE958227 | [0004] | O-ring | |
| 42. | VOE4763753 | [0001] | Tube | |
| 43. | VOE4763751 | [0001] | Tube | |
| 44. | VOE931616 | [0002] | Hose assembly | |
| VOE990738 | [0002] | O-ring | ||
| 45. | VOE4763745 | [0001] | Anchorage | |
| 46. | VOE970945 | [0001] | Hexagon screw | |
| 47. | VOE976945 | [0001] | Washer | |
| 48. | VOE941908 | [0001] | Spring washer | |
| 49. | [0001] | Clamp | ||
| 50. | VOE60111880 | [0001] | Hexagon screw | |
| 51. | VOE13941907 | [0001] | Washer | |
| 52. | VOE4763759 | [0001] | Retainer | |
| 53. | VOE940199 | [0002] | Hexagon screw | |
| 54. | VOE13955894 | [0002] | Washer | |
| 55. | VOE13941907 | [0002] | Washer | |
| 56. | VOE4762999 | [0002] | Clamp | |
| 57. | VOE955892 | [0002] | Plain washer | |
| 58. | VOE13941906 | [0002] | Washer | |
| 59. | VOE13955781 | [0002] | Nut | |
| 60. | VOE4850440 | [0002] | Hydraulic cylinder | |
| 61. | VOE4850430 | [0004] | Pin | |
| 62. | VOE4740397 | [0004] | Washer | |
| 63. | VOE13955295 | [0020] | Screw | |
| 64. | VOE13941907 | [0016] | Washer | |
| 65. | VOE4850431 | [0004] | Bushing | |
| 66. | VOE60113303 | [0004] | Washer | |
| 67. | VOE60114213 | [0004] | Lock nut | |
| 68. | VOE914167 | [0004] | Lubricating nipple | |
| 69. | VOE4881278 | [0001] | Steering column | |
| None |
