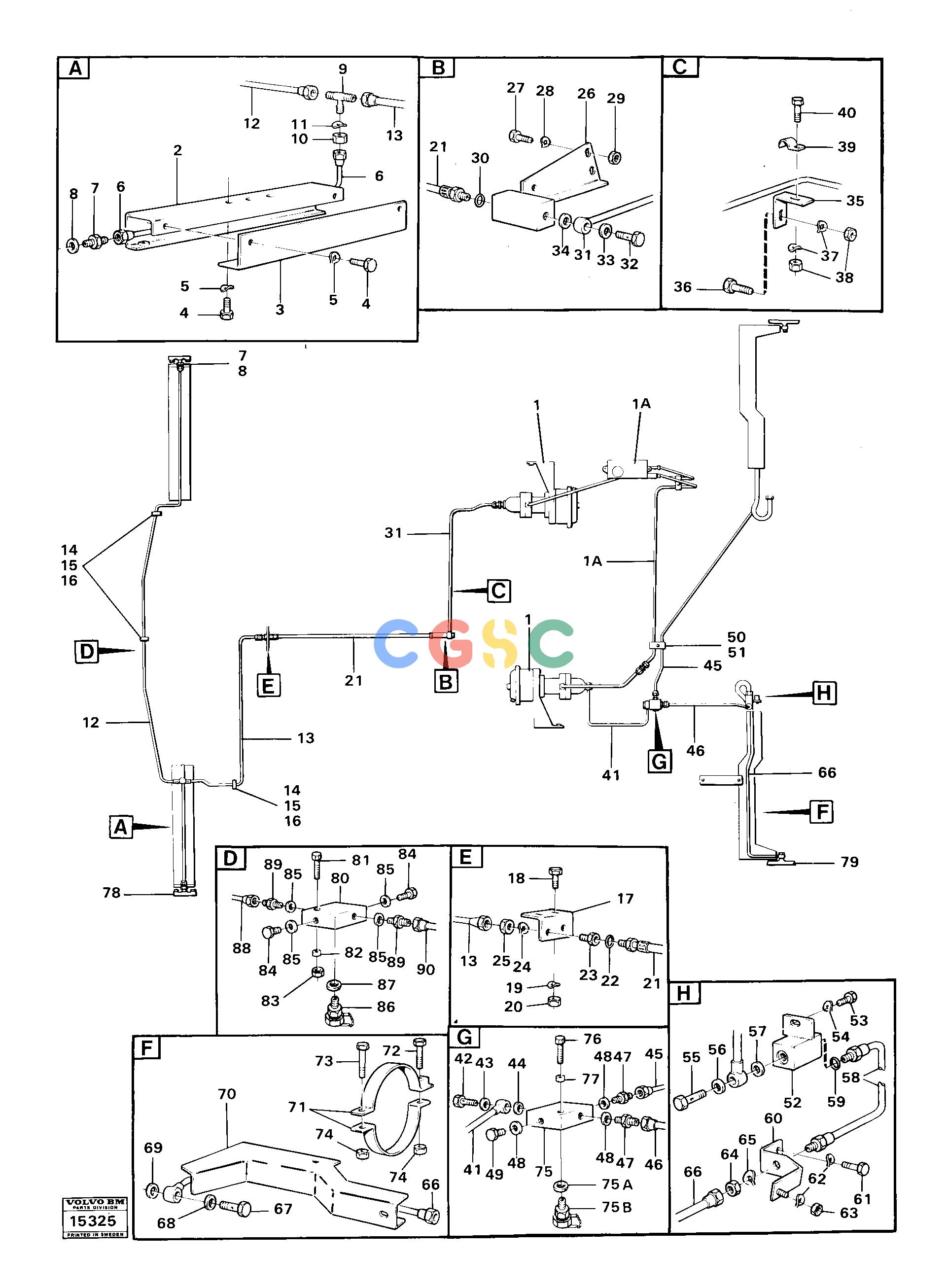

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | Brake unit | |||
| 84. | VOE961891 | [0002] | Plug | |
| 85. | VOE957178 | [0004] | Gasket | |
| 86. | VOE4928801 | [0001] | Testing nipple | |
| 87. | VOE957173 | [0001] | Gasket | |
| 88. | VOE4928790 | [0001] | Tube | |
| 89. | VOE7065653 | [0002] | Nipple | |
| 90. | VOE4928788 | [0001] | Tube | |
| 1A. | [0001] | Oil tank | ||
| 2. | VOE4932060 | [0002] | Pipe protection | |
| 3. | VOE4927033 | [0002] | Cover | |
| 4. | VOE13955295 | [0014] | Screw | |
| 5. | VOE13941907 | [0014] | Washer | |
| 6. | VOE4926954 | [0001] | Tube | |
| 7. | VOE7065653 | [0002] | Nipple | |
| 8. | VOE13947621 | [0002] | Plane gasket | |
| 9. | VOE7180083 | [0001] | T-nipple | |
| 10. | VOE940154 | [0001] | Nut | |
| 11. | VOE940280 | [0001] | Spring washer | |
| 12. | VOE4929624 | [0001] | Tube | |
| 13. | VOE4926952 | [0001] | Tube | |
| 14. | VOE952624 | [0003] | Clamp | |
| 15. | VOE955269 | [0003] | Hexagon screw | |
| 16. | VOE13941906 | [0003] | Washer | |
| 17. | VOE4850018 | [0001] | Anchorage | |
| 18. | VOE13955295 | [0002] | Screw | |
| 19. | VOE13941907 | [0002] | Washer | |
| 20. | VOE955782 | [0002] | Hexagon nut | |
| 21. | VOE928560 | [0001] | Hose assembly | |
| 22. | VOE958226 | [0001] | O-ring | |
| 23. | VOE743201 | [0001] | Nipple | |
| 24. | VOE940280 | [0001] | Spring washer | |
| 25. | VOE940154 | [0001] | Nut | |
| 26. | VOE4850016 | [0001] | Anchorage | |
| 27. | VOE13970949 | [0002] | Hexagon screw | |
| 28. | VOE941908 | [0002] | Spring washer | |
| 29. | VOE971071 | [0002] | Hexagon nut | |
| 30. | VOE958226 | [0001] | O-ring | |
| 31. | VOE4928668 | [0001] | Tube | |
| 32. | VOE954393 | [0001] | Hollow screw | |
| 33. | VOE13947622 | [0001] | Plane gasket | |
| 34. | VOE13947621 | [0001] | Plane gasket | |
| 35. | [0001] | Bracket | ||
| 36. | VOE940142 | [0001] | Hexagon screw | |
| 37. | VOE13941907 | [0002] | Washer | |
| 38. | VOE955782 | [0002] | Hexagon nut | |
| 39. | VOE7018351 | [0001] | Clamp | |
| 40. | VOE13955295 | [0001] | Screw | |
| 41. | VOE4926914 | [0001] | Tube | |
| 42. | VOE954393 | [0001] | Hollow screw | |
| 43. | VOE13947622 | [0001] | Plane gasket | |
| 44. | VOE13947621 | [0001] | Plane gasket | |
| 45. | VOE4739507 | [1] | Tube | |
| 46. | VOE4739506 | [1] | Tube | |
| 47. | VOE7065653 | [2] | Nipple | |
| 48. | VOE13947621 | [3] | Plane gasket | |
| 49. | VOE961891 | [1] | Plug | |
| 50. | VOE7402404 | [1] | Clamp | |
| 51. | VOE13955295 | [1] | Screw | |
| 52. | VOE4762494 | [2] | Nipple | |
| 53. | VOE13970947 | [2] | Hexagon screw | |
| 54. | VOE941908 | [2] | Spring washer | |
| 55. | VOE954393 | [2] | Hollow screw | |
| 56. | VOE13947622 | [2] | Plane gasket | |
| 57. | VOE13947621 | [2] | Plane gasket | |
| 58. | VOE4785449 | [2] | Brake hose | |
| 59. | VOE957175 | [2] | Gasket | |
| 60. | VOE4928253 | [0001] | Anchorage | H |
| VOE4928252 | [0001] | Anchorage | V | |
| 61. | VOE13955295 | [0004] | Screw | |
| 62. | VOE13941907 | [0006] | Washer | |
| 63. | VOE955782 | [0002] | Hexagon nut | |
| 64. | VOE940154 | [0002] | Nut | |
| 65. | VOE940280 | [0002] | Spring washer | |
| 66. | VOE4739489 | [0002] | Brake pipe | |
| 67. | VOE954393 | [0002] | Hollow screw | |
| 68. | VOE13947622 | [0002] | Plane gasket | |
| 69. | VOE13947621 | [0002] | Plane gasket | |
| 70. | VOE4739470 | [0002] | Brake shield | |
| 71. | VOE4739490 | [0004] | Clamp | |
| 72. | VOE13955325 | [0002] | Screw | |
| 73. | VOE13970956 | [0002] | Hexagon screw | |
| 74. | VOE971071 | [0004] | Hexagon nut | |
| 75. | VOE4850277 | [0001] | Nipple | SER NO 1173- |
| VOE4928792 | [0001] | Nipple | ||
| 75A. | VOE4928801 | [0001] | Testing nipple | |
| 75B. | VOE957173 | [0001] | Gasket | |
| 76. | VOE997425 | [0001] | Hexagon screw | SER NO 1173- |
| 77. | VOE13941907 | [0001] | Washer | SER NO 1173- |
| 78. | VOE4717031 | [0002] | Brake | FRAM/ FRONT |
| None | ||||
| 79. | VOE4717393 | [0002] | Brake | BAK/ REAR |
| None | ||||
| 80. | VOE4928792 | [0001] | Nipple | |
| 81. | VOE997425 | [0001] | Hexagon screw | |
| 82. | VOE13941907 | [0001] | Washer | |
| 83. | VOE971071 | [0001] | Hexagon nut |
