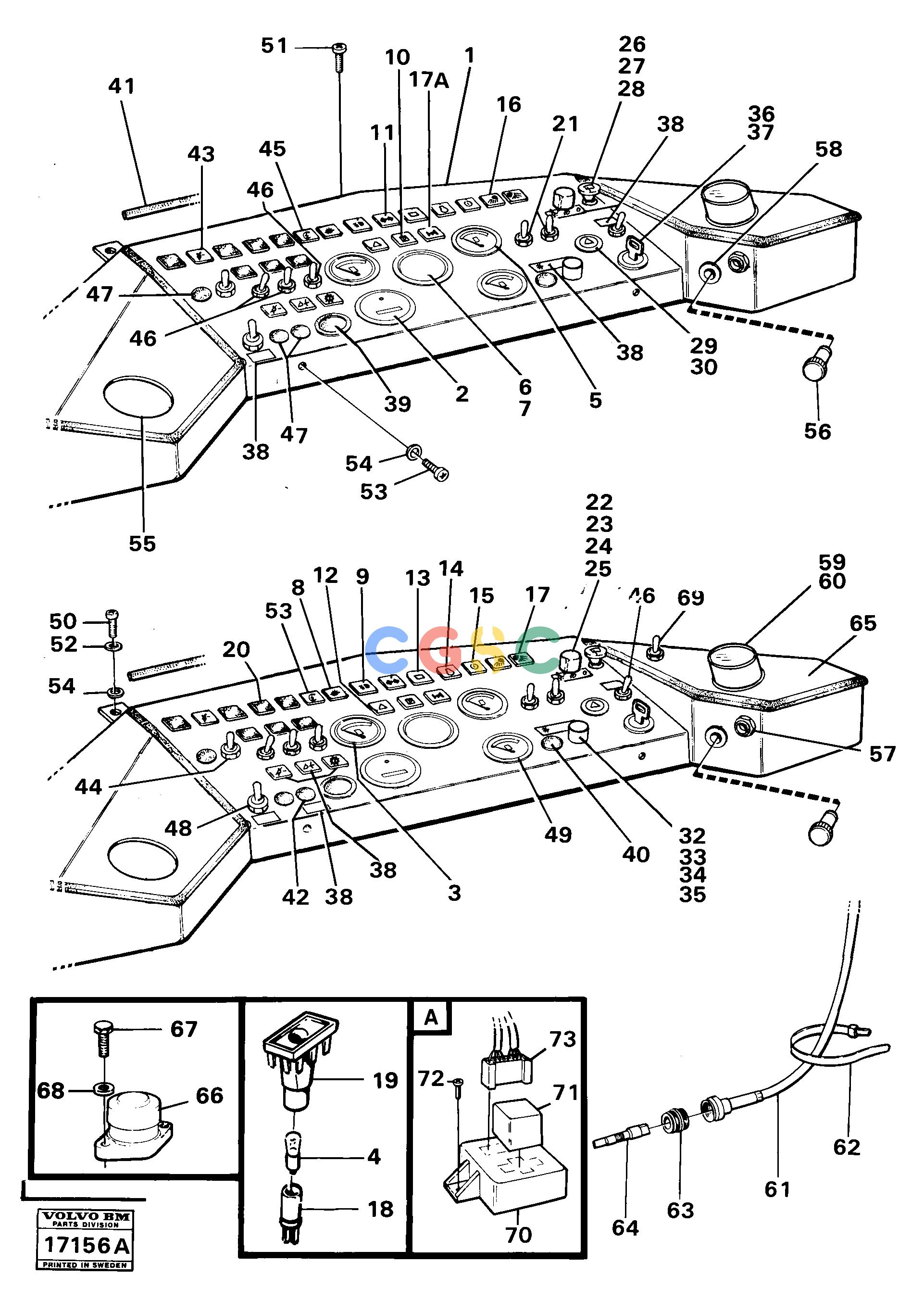

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4. | VOE182034 | [15] | Bulb | |
| 45. | VOE4787120 | [1] | Lens | |
| 46. | VOE4786696 | [2] | Switch | |
| VOE1573970 | [1] | Switch | SER NO 4193 - | |
| 47. | VOE941266 | [3] | Plug | |
| 48. | VOE4787446 | [1] | Switch | |
| VOE941266 | Plug | |||
| 49. | VOE4787364 | [1] | Fuel gauge | |
| 50. | VOE60111867 | [2] | Hexagon screw | |
| 51. | VOE13955272 | [1] | Screw | |
| 52. | VOE7192041 | [3] | Washer | |
| 5. | VOE4803760 | [1] | Temperature gauge | MO |
| 53. | VOE956094 | [0002] | Cross recessed screw | |
| 54. | VOE955892 | [0005] | Plain washer | |
| 55. | [0001] | Pressure gauge | ||
| 56. | VOE1586917 | [0001] | Cigarette lighter | |
| 57. | VOE13946222 | [0001] | Retainer | |
| 58. | VOE4787694 | [0001] | Box | |
| 59. | VOE4787907 | [0001] | Speedometer | |
| 60. | VOE182034 | [0001] | Bulb | |
| None | TILLV NR-3647 | |||
| VOE182059 | [0001] | Bulb | ||
| 6. | VOE1130162 | [1] | Lamp | |
| None | SER NO 3648- | |||
| 61. | VOE4780327 | [0001] | Speedometer cable | |
| 62. | VOE4881440 | [0003] | Cable tie | , |
| 63. | VOE4719976 | [0001] | Fitting | |
| 64. | VOE4719975 | [0001] | Shaft | , |
| 65. | [0001] | Cover | ||
| 66. | VOE7239014 | [0001] | Foot Operated Switch | |
| 67. | VOE955269 | [0002] | Hexagon screw | |
| 68. | VOE13941906 | [0002] | Washer | |
| 69. | VOE4786699 | [0001] | Switch | |
| 7. | VOE182059 | [1] | Bulb | |
| 70. | VOE1593940 | [0001] | Sensor | |
| 71. | VOE4786690 | [0001] | Relay | |
| 72. | VOE955126 | [0002] | Cross recessed screw | |
| 73. | VOE4939291 | [0001] | Cable harness | |
| VOE4939406 | [0001] | Decal | ||
| 8. | VOE4787121 | [1] | Lens | |
| 1. | VOE4854252 | [1] | Instrument panel | |
| 9. | VOE4787131 | [1] | Lens | |
| 10. | VOE4787127 | [1] | Lens | |
| 11. | VOE4787137 | [1] | Lens | |
| 12. | VOE4787129 | [1] | Lens | |
| 13. | VOE4787119 | [1] | Lens | |
| 14. | VOE4787116 | [0001] | Lens | |
| 15. | VOE4787118 | [0001] | Lens | |
| 16. | VOE4787133 | [0001] | Lens | |
| 17. | VOE4787134 | [0001] | Lens | |
| 17A. | VOE11062686 | [0001] | Lens | |
| Instr Panel | ||||
| 18. | VOE4786025 | [0013] | Bulb socket | |
| 19. | VOE4786024 | [0013] | Socket | |
| 20. | VOE4786078 | [0007] | Plug | |
| 21. | VOE4786698 | [0002] | Switch | |
| 22. | VOE4803160 | [0001] | Switch | |
| 23. | VOE1215134 | [0001] | Knob | |
| 24. | VOE13940109 | [0001] | Lock washer | |
| 25. | VOE1212859 | [0001] | Nut | |
| 26. | VOE1573970 | [0001] | Switch | |
| 27. | VOE673225 | [0001] | Nut washer | |
| 2. | VOE4803195 | [1] | Hour counter | |
| 28. | VOE688626 | [0001] | Knob | |
| 29. | VOE4787092 | [0001] | Wrn Flash Relay | |
| 30. | VOE11997242 | [0001] | Bulb | |
| 31. | VOE4786696 | [0001] | Switch | |
| 32. | VOE1210190 | [0001] | Switch | |
| 33. | VOE1215134 | [0001] | Knob | |
| 34. | VOE1212859 | [0001] | Nut | |
| 35. | VOE13940109 | [0001] | Lock washer | |
| 36. | VOE1590738 | [0001] | Starter switch | |
| VOE7238762 | Starter switch | |||
| 3. | VOE11708798 | [1] | Temperature gauge | TM |
| 37. | VOE1581255 | [0002] | Key | |
| VOE1578121 | [0001] | Starter switch | ||
| 38. | [0007] | Decal | ||
| 39. | VOE961970 | [0001] | Plug | |
| VOE4787092 | [0001] | Wrn Flash Relay | ||
| VOE4803434 | [0001] | Switch | ||
| 40. | VOE941266 | [0001] | Plug | |
| VOE4786696 | [0001] | Switch | ||
| 41. | VOE4786031 | [1] | Framework moulding | |
| 42. | VOE4786696 | [1] | Switch | |
| 43. | VOE4803066 | [1] | Lens | |
| 44. | VOE4786696 | [1] | Switch |
