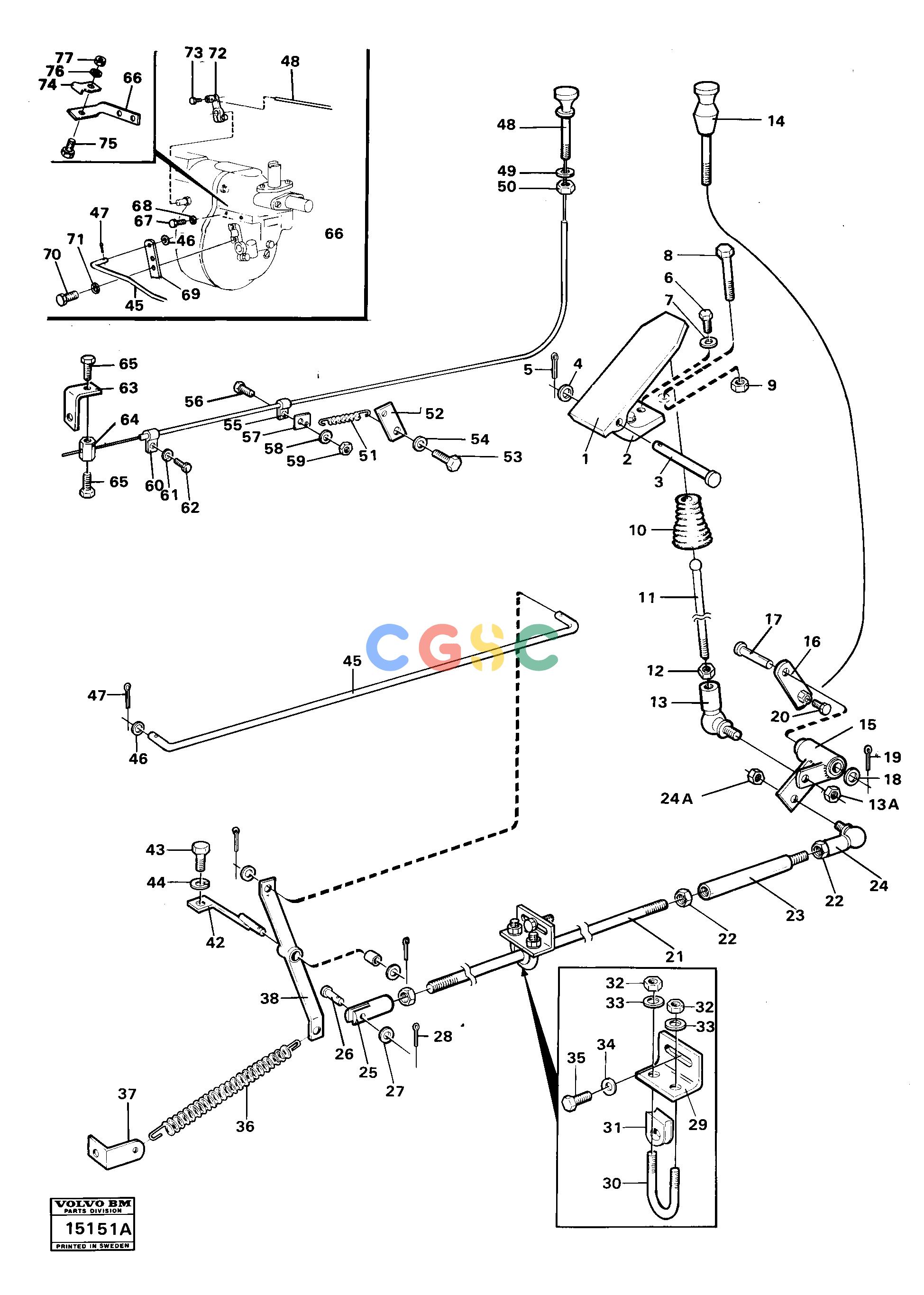

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4. | VOE60110353 | [0001] | Washer | |
| 45. | VOE4925735 | [0001] | Pull rod | SER NO -2451 |
| VOE4929828 | [0001] | Pull rod | SER NO 2452 - 4147 | |
| VOE4939244 | [0001] | Pull rod | SER NO 4148- | |
| 46. | VOE955892 | [0002] | Plain washer | |
| 47. | VOE907822 | [0002] | Split pin | |
| 48. | VOE15140105 | [0001] | Wire control | TILLV NR-1025 |
| VOE15140105 | [0001] | Wire control | SER NO 1026-4147 | |
| VOE15140105 | [0001] | Wire control | SER NO 4148- | |
| 49. | VOE13940109 | [0001] | Lock washer | |
| 50. | VOE940140 | [0001] | Hexagon nut | |
| 51. | VOE767269 | [0001] | Spring | SER NO -2451 |
| VOE4929887 | [0001] | Compression spring | SER NO 2452-4147 | |
| 52. | [0001] | Attachment | ||
| 53. | VOE955546 | [0001] | Hexagon screw | SER NO -2451 |
| 5. | VOE13907856 | [0001] | Cotter Pin | |
| 54. | VOE940147 | [0001] | Toothed washer | SER NO -2451 |
| 55. | VOE7121563 | [0001] | Clamp | SER NO -2451 |
| 56. | VOE955269 | [0001] | Hexagon screw | SER NO -2451 |
| 57. | VOE4707860 | [0001] | Anchorage | SER NO -2451 |
| 58. | VOE955948 | [0001] | Toothed washer | SER NO -2451 |
| 59. | VOE13955781 | [0001] | Nut | SER NO -2451 |
| 60. | VOE7121563 | [0001] | Clamp | SER NO -2451 |
| 61. | VOE955946 | [0001] | Toothed washer | SER NO -2451 |
| 62. | VOE950019 | [0001] | Cross recessed screw | SER NO -2451 |
| 63. | [0001] | Attachment | ||
| VOE952622 | [0001] | Clamp | SER NO 2452-4147 | |
| VOE955269 | [0001] | Hexagon screw | SER NO 2452-4147 | |
| VOE13941906 | [0001] | Washer | SER NO 2452-4147 | |
| VOE13955781 | [0001] | Nut | SER NO 2452-4147 | |
| 6. | VOE13955272 | [0002] | Screw | |
| 64. | VOE715141 | [0001] | Anchorage | SER NO -2451 |
| 65. | VOE13940102 | [0002] | Screw | SER NO -2451 |
| 66. | [0001] | Anchorage | ||
| None | PROD NO 16307 | |||
| 67. | VOE955269 | [0002] | Hexagon screw | PROD NO 16307 |
| 68. | VOE13941906 | [0002] | Washer | PROD NO 16307 |
| 69. | VOE4939282 | [0001] | Hand lever | PROD NO 16307 |
| 70. | VOE13955271 | [0002] | Screw | PROD NO 16307 |
| 71. | VOE13941906 | [0002] | Washer | PROD NO 16307 |
| 72. | VOE955891 | [0001] | Plain washer | PROD NO 16307 |
| 73. | VOE955637 | [0002] | Hexagon screw | PROD NO 16307 |
| 7. | VOE955948 | [0002] | Toothed washer | |
| 74. | VOE7018335 | [0001] | Clamp | PROD NO 16307 |
| 75. | VOE955244 | [0001] | Hexagon screw | PROD NO 16307 |
| 76. | VOE941905 | [0001] | Spring washer | PROD NO 16307 |
| 77. | VOE955780 | [0001] | Hexagon nut | PROD NO 16307 |
| 8. | VOE955304 | [0001] | Hexagon screw | |
| 1. | VOE1598173 | [0001] | Accelerator pedal | |
| 9. | VOE955782 | [0001] | Hexagon nut | |
| 10. | VOE4951016 | [0001] | Sealing bellows | |
| 11. | VOE13948512 | [0001] | Control rod | |
| 12. | VOE13955781 | [0001] | Nut | |
| 13. | VOE959079 | [0001] | Angle ball joint | |
| 13A. | VOE946035 | [0001] | Lock nut | |
| 14. | VOE1571492 | [0001] | Control | |
| 15. | VOE4974566 | [0001] | Hand lever | |
| 16. | VOE4926103 | [0001] | Hand lever | |
| 17. | VOE191240 | [0001] | Bolt | |
| 2. | VOE324714 | [0001] | Attaching bracket | |
| 18. | VOE60110353 | [0001] | Washer | |
| 19. | VOE13907856 | [0001] | Cotter Pin | |
| 20. | VOE955269 | [0001] | Hexagon screw | |
| 21. | VOE4928264 | [0001] | Pull rod | |
| 22. | VOE13955781 | [0003] | Nut | |
| 23. | VOE4925728 | [0001] | Adjusting screw | |
| 24. | VOE959079 | [0001] | Angle ball joint | |
| 24A. | VOE946035 | [0001] | Lock nut | |
| VOE1588548 | [0002] | Bushing | ||
| 25. | VOE961786 | [0001] | Clevis | |
| 26. | VOE913112 | [0001] | Clevis pin | |
| 27. | VOE955892 | [0001] | Plain washer | |
| 28. | VOE907822 | [0001] | Split pin | |
| 29. | VOE4926115 | [0001] | Bracket | |
| 30. | VOE4739981 | [0001] | Clamp | |
| 31. | VOE351524 | [0001] | Bushing | |
| 32. | VOE946035 | [0002] | Lock nut | |
| 33. | VOE955892 | [0002] | Plain washer | |
| 34. | VOE13955894 | [0001] | Washer | |
| 3. | VOE191240 | [0001] | Bolt | |
| 35. | VOE940199 | [0001] | Hexagon screw | |
| 36. | VOE11180052 | [0001] | Spring | |
| 37. | [0001] | Attachment | ||
| 38. | VOE4947874 | [0001] | Hand lever | |
| 39. | VOE1588548 | [0002] | Bushing | |
| 40. | VOE60110353 | [0001] | Washer | |
| 41. | VOE13907856 | [0001] | Cotter Pin | |
| 42. | VOE4925732 | [0001] | Brg Arrangement | |
| 43. | VOE955562 | [0002] | Hexagon screw | |
| 44. | VOE940280 | [0002] | Spring washer |
