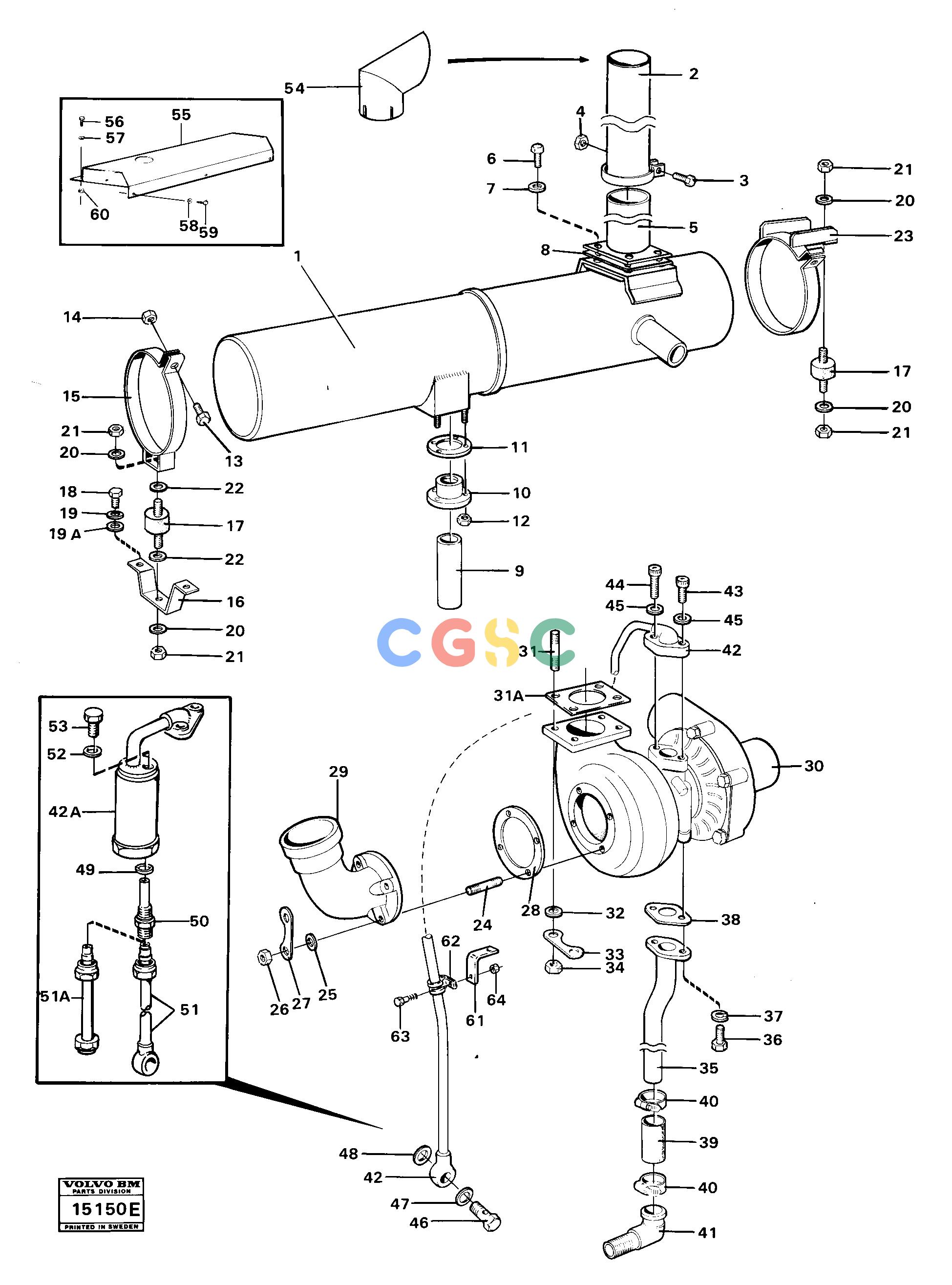

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE4804329 | [1] | Silencer | PROD NO 33100,33105 |
| 61. | VOE4926105 | [0001] | Spring anchorage | MO 59883 - |
| 62. | VOE13946834 | [0002] | Clamp | MO 59883 - |
| 63. | VOE940113 | [0002] | Hexagon screw | MO 59883 - |
| 64. | VOE955826 | [0002] | Hexagon nut | MO 59883 - |
| VOE4804329 | [1] | Silencer | PROD NO 33106, 33107 | |
| 2. | VOE787965 | [1] | End pipe | PROD NO 33100,33105 |
| 3. | VOE13970948 | [1] | Hexagon screw | |
| 4. | VOE971071 | [1] | Hexagon nut | |
| 5. | VOE4804219 | [1] | Exhaust pipe | |
| 6. | VOE13970947 | [4] | Hexagon screw | |
| 7. | VOE941908 | [4] | Spring washer | |
| 8. | VOE4773684 | [1] | Gasket | |
| 9. | VOE4804223 | [1] | Expansion joint | PROD NO 33100, 33105 |
| VOE4804529 | [1] | Expansion joint | PROD NO 33106, 33107 | |
| 10. | VOE4774455 | [1] | Flange | |
| 11. | VOE11033124 | [1] | Gasket | |
| 12. | VOE955782 | [0004] | Hexagon nut | |
| 13. | VOE13970951 | [0002] | Hexagon screw | |
| 14. | VOE971071 | [0002] | Hexagon nut | |
| 15. | VOE4925131 | [0001] | Tensioning band | |
| 16. | VOE4925137 | [0001] | Anchorage | |
| 17. | VOE11110276 | [0003] | Rubber cushion | |
| 18. | VOE13955294 | [0004] | Screw | |
| 19. | VOE13941907 | [0004] | Washer | |
| 19A. | VOE13955894 | [0004] | Washer | SER NO 1093- |
| 20. | VOE940280 | [0006] | Spring washer | |
| 21. | VOE13971072 | [0006] | Hexagon nut | |
| 22. | VOE955898 | [0002] | Washer | |
| 23. | VOE4925134 | [0001] | Tensioning band | |
| 24. | VOE953239 | [0004] | Stud | UNC 5/16 |
| VOE924064 | [0004] | Stud | M 8 | |
| 25. | VOE13940097 | [0004] | Washer | MO -37988 |
| VOE13955894 | [0004] | Washer | MO 37989- | |
| 26. | VOE13940122 | [0004] | Nut | |
| VOE946330 | [0004] | Hexagon nut | PROD NO 33100,33105 | |
| 27. | VOE943705 | [0002] | Tab washer | MO -37988 |
| VOE13941907 | [0004] | Washer | MO 37989- | |
| 28. | VOE787974 | [0001] | Gasket | |
| 29. | VOE787623 | [0001] | Tube | |
| 30. | VOE4787199 | [0001] | Turbocharger | PROD NR16100,16106 |
| None | ||||
| VOE4880591 | [0001] | Turbocharger | PROD NR16300,16305 | |
| None | ||||
| None | ERS AV 4881090 | |||
| VOE4880591 | [0001] | Turbocharger | PROD NO 16307 | |
| None | MO - 60141 | |||
| None | ||||
| None | ERS AV 4881090 | |||
| VOE4881650 | [1] | Turbocharger | PROD NO 16307, MO 60142- | |
| None | ||||
| 31A. | VOE420618 | [1] | Gasket | |
| 31. | VOE479971 | [4] | Stud | MO -39129 |
| VOE953259 | [0004] | Stud | MO 39130- | |
| 32. | VOE976945 | [0004] | Washer | MO -39129 |
| VOE13940097 | [0004] | Washer | MO 39130- | |
| 33. | VOE942167 | [0002] | Tab washer | |
| 34. | VOE13971074 | [0004] | Hexagon nut | MO -39129 |
| VOE191894 | [0004] | Nut | MO 39130- | |
| 35. | VOE787456 | [0001] | Oil draining pipe | MO - 60246 |
| VOE4804694 | [0001] | Oil draining pipe | MO 60247 - | |
| 36. | VOE13940115 | [0002] | Screw | PROD NO 16100, 16106. |
| VOE955297 | [0002] | Hexagon screw | PROD NO 16300, 16305 | |
| 37. | VOE13942336 | [0002] | Spring washer | PROD NO 16100, 16106 |
| VOE13941907 | [0002] | Washer | PROD NO 16300, 16305 | |
| 38. | [0001] | Gasket | ||
| 39. | VOE466328 | [0001] | Hose | |
| 40. | VOE13943474 | [0002] | Hose clamp | |
| 41. | VOE479959 | [0001] | Nipple | |
| 42. | VOE787601 | [0001] | Oil feed pipe | MO-48197 |
| 42A. | VOE4804445 | [0001] | Oil reservoir | MO 48198- |
| 43. | VOE926323 | [0001] | Screw | PROD NO 16100, 16106 |
| VOE959222 | [0001] | Hex. socket screw | PROD NO 16300, 16305 | |
| 44. | VOE956571 | [0001] | Hex. socket screw | PROD NO 16100, 16106 |
| VOE959223 | [0001] | Hex. socket screw | PROD NO 16300, 16305 | |
| 45. | VOE13941907 | [0002] | Washer | |
| 46. | VOE942007 | [0001] | Hollow screw | MO - 59882 |
| 47. | VOE13947621 | [0001] | Plane gasket | |
| 48. | VOE13947624 | [0001] | Plane gasket | MO - 59882 |
| 49. | VOE13947622 | [0001] | Plane gasket | MO 48198- |
| 50. | VOE4804448 | [0001] | Nipple | MO 48198- |
| 51. | VOE4804482 | [0001] | Tube | MO 48198 - 59882 |
| 51A. | VOE4804696 | [0001] | Oil feed pipe | MO 59883 - |
| 52. | VOE13947281 | [0001] | Gasket | MO 48198- |
| 53. | VOE960628 | [0001] | Plug | MO 48198- |
| 54. | VOE4804634 | [0001] | Rain cap | |
| VOE943483 | [0001] | Hose clamp | ||
| 55. | VOE4947002 | [0001] | Protecting plate | |
| 56. | VOE970945 | [0002] | Hexagon screw | |
| 57. | VOE976945 | [0002] | Washer | |
| 58. | VOE976945 | [0003] | Washer | |
| 59. | VOE970945 | [0003] | Hexagon screw | |
| 60. | VOE13971083 | [0002] | Lock nut | |
| VOE4856295 | [0003] | Anchorage |
