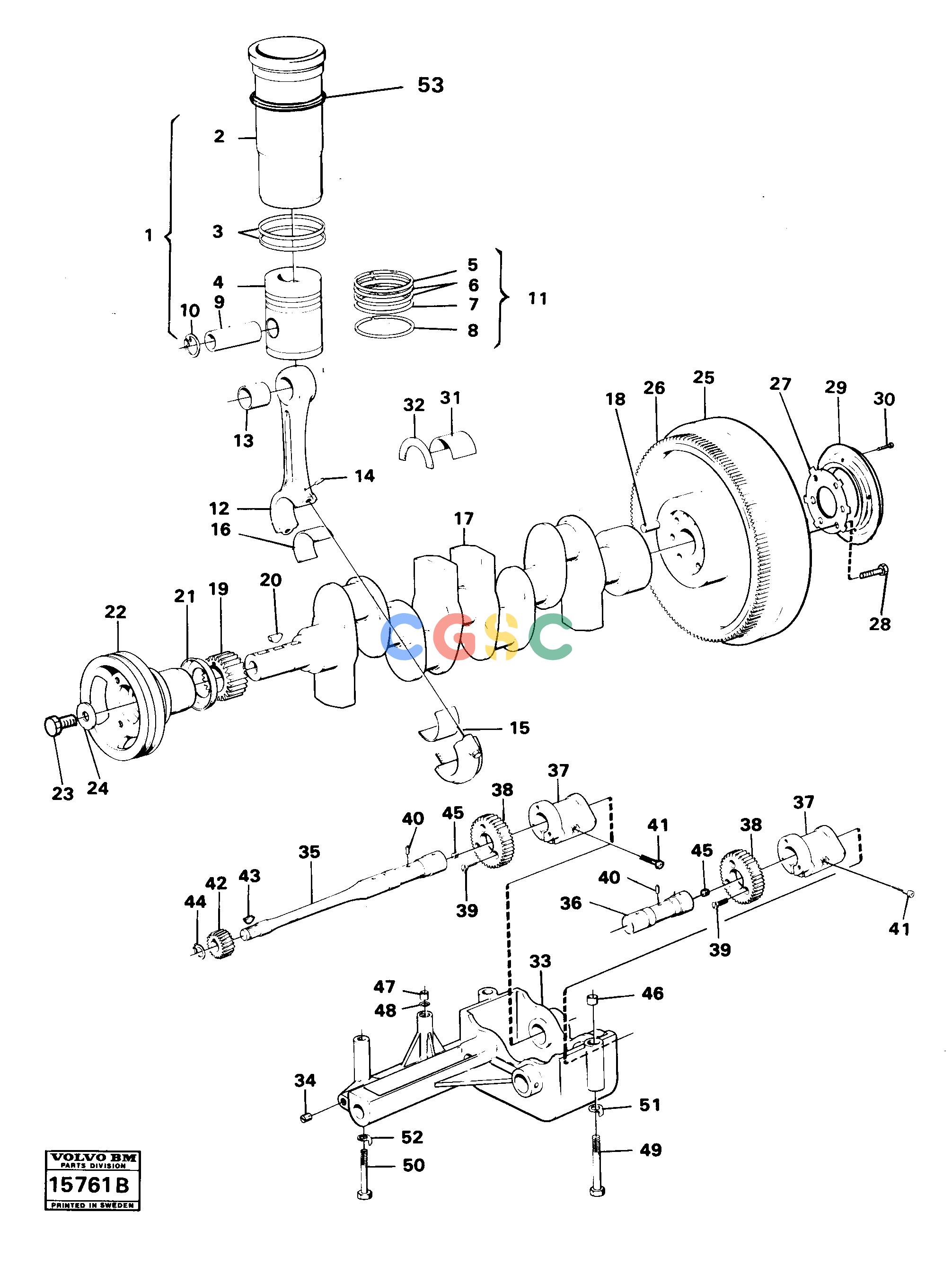

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4. | [4] | Piston | ||
| VOE276755 | [0001] | Thrust washer | ÖD 0,1 MM | |
| VOE276756 | [0001] | Thrust washer | ÖD 0,2 MM | |
| VOE276757 | [0001] | Thrust washer | ÖD 0,3 MM | |
| VOE4804779 | [0001] | Vibration damper | ||
| 33. | VOE4804780 | [0001] | Bracket | |
| 34. | VOE7010634 | [0001] | Plug | |
| 35. | VOE785439 | [0001] | Shaft | |
| 36. | VOE785440 | [0001] | Shaft | |
| 37. | VOE4804464 | [0002] | Counterweight | |
| 38. | VOE787212 | [0002] | Gear | |
| 5. | [4] | Compression ring | ÖVRE/UPPER | |
| 39. | VOE956553 | [0002] | Hex. socket screw | L = 16 |
| VOE955556 | [0004] | Hexagon screw | L = 25 | |
| 40. | VOE951950 | [0002] | Spring pin | |
| 41. | VOE956588 | [0002] | Hex. socket screw | |
| 42. | VOE787298 | [0001] | Gear | |
| 43. | VOE910115 | [0001] | Woodruff key | |
| 44. | VOE914454 | [0001] | Snap ring | |
| 45. | VOE7016324 | [0002] | Plug | |
| 46. | VOE785649 | [0001] | Sleeve | |
| 47. | VOE785438 | [0001] | Tube | |
| 6. | [8] | Compression ring | NEDRE/LOWER | |
| 48. | VOE925055 | [0001] | O-ring | |
| 49. | VOE7191812 | [0002] | Screw | |
| 50. | VOE955556 | [0001] | Hexagon screw | |
| 51. | VOE921231 | [0002] | Lock washer | |
| 52. | VOE921221 | [0001] | Lock washer | |
| 53. | VOE4804380 | [REQ] | Shim | THICK = 0,12 |
| VOE4804381 | [REQ] | Shim | THICK = 0,20 | |
| VOE4804382 | [REQ] | Shim | THICK = 0,30 | |
| VOE4804383 | [REQ] | Shim | THICK = 0,50 | |
| 7. | [4] | Oil ring | ÖVRE/UPPER | |
| 8. | [4] | Oil ring | NEDRE/LOWER | |
| 1. | VOE6630713 | [4] | Cylinder liner kit | |
| 9. | [4] | Piston pin | ||
| 10. | VOE914524 | [8] | Retaining ring | |
| 11. | VOE6630616 | [4] | Piston ring kit | |
| 12. | VOE4804450 | [4] | Connecting rod | |
| 13. | VOE11030066 | [4] | Bearing bushing | |
| 14. | VOE7021660 | [0008] | Pin | |
| 15. | VOE420126 | [0008] | Screw | |
| 16. | VOE270093 | [0004] | Bearing | STD |
| VOE270094 | [0004] | Bearing | UD 0,10" | |
| VOE270095 | [0004] | Bearing | UD 0,20" | |
| 2. | [4] | Cylinder liner | ||
| VOE270096 | [0004] | Bearing | UD 0,30" | |
| VOE270097 | [0004] | Bearing | UD 0,40" | |
| VOE270098 | [0004] | Bearing | UD 0,50" | |
| 17. | VOE4804294 | [0001] | Crankshaft | |
| 18. | VOE950677 | [0001] | Pin | |
| 19. | VOE787299 | [0001] | Gear | |
| 20. | VOE910127 | [0003] | Woodruff key | |
| 21. | VOE785540 | [0001] | Oil deflector ring | |
| 22. | VOE787614 | [0001] | Pulley | |
| 23. | VOE787163 | [0001] | Screw | |
| 3. | VOE4804532 | [4] | Sealing ring | ÖVRE/UPPER |
| 24. | VOE785542 | [0001] | Washer | |
| 25. | VOE11030041 | [0001] | Flywheel | |
| 26. | VOE4804931 | [0001] | Gear ring | |
| 27. | VOE785483 | [0001] | Lock washer | MO - 65069 |
| VOE467773 | [0006] | Washer | MO 65070 - | |
| 28. | VOE955724 | [0006] | Hexagon screw | MO - 65069 |
| VOE13944710 | [0006] | Screw | MO 65070 - | |
| 29. | VOE785820 | [0001] | Ring | |
| 30. | VOE905654 | [0004] | Drive screw | |
| 31. | VOE270432 | [0004] | Main bearing kit | STD |
| VOE270433 | [0004] | Main bearing kit | ||
| VOE270434 | [0004] | Main bearing kit | UD 0,020" | |
| VOE4804532 | [4] | Sealing ring | NEDRE/LOWER | |
| VOE270435 | [0004] | Main bearing kit | UD 0,030" | |
| VOE270436 | [0004] | Main bearing kit | ||
| VOE270437 | [0004] | Main bearing kit | UD 0,050" | |
| VOE754589 | [0001] | Bearing shell kit | STD | |
| VOE754590 | [0001] | Bearing | UD 0,010" | |
| VOE754591 | [0001] | Bearing | UD 0,020" | |
| VOE754592 | [0001] | Bearing | UD 0,030" | |
| VOE754593 | [0001] | Bearing | UD 0,040" | |
| VOE754594 | [0001] | Bearing | UD 0,050" | |
| 32. | VOE276754 | [0001] | Thrust washer | STD |
