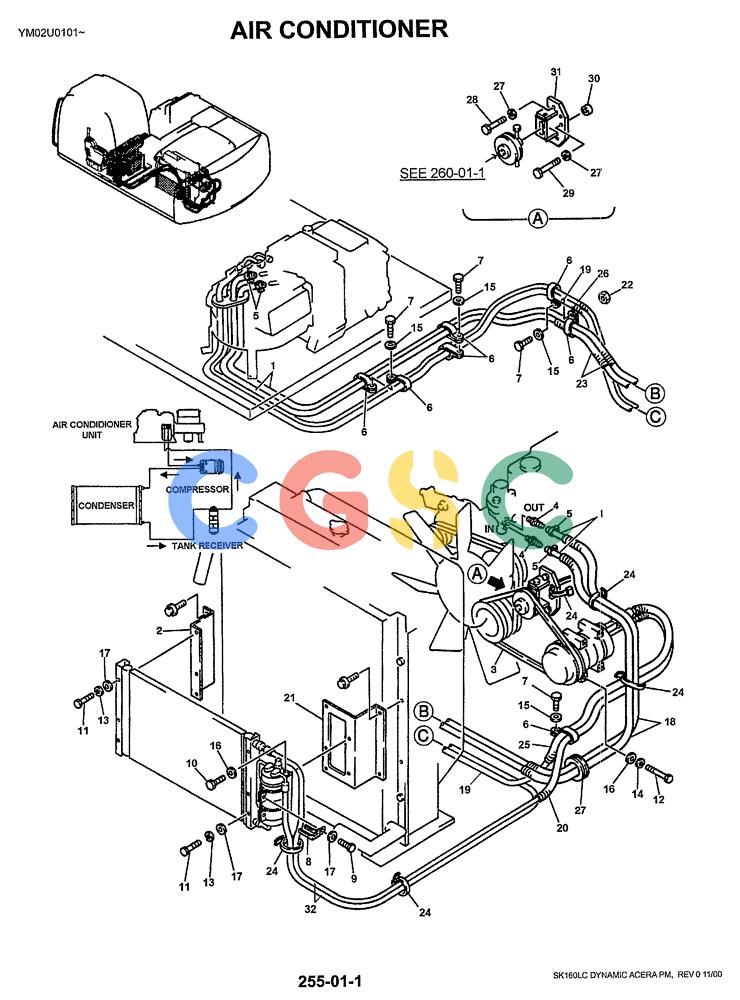

| . . | YM20M00002F1 | [1] | AIR CONDITIONER | |
| 1. | R18T0026D39 | [2] | HOSE | KOBID 12 x OD 22 x 4000mm |
| 2. | YN20M01233P1 | [1] | SUPPORT | KOB |
| 3. | YN20M01282D1 | [1] | V-BELT,48.82" L | KOB Superseded by part number: 84214731 |
| 4. | 2444T2577 | [2] | HYD CONNECTOR | KOBM16x1.5x51mm Long Ø14 Hose |
| 5. | ZC16X02000 | [4] | CLIP | KOBClamp, Hose -- Min 15 x Max 25mm |
| 6. | ZC48X24014 | [8] | CLIP | KOBClamp, Double -- Ø24x85mm Long |
| 7. | ZS18C10020 | [3] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 8. | 2432R233D1 | [1] | CLIP | KOB37x12x40mm |
| 9. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 10. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 11. | ZS18C06050 | [6] | SCREW,Hex, M6 x 50mm | KOBM06x1.0x50mm |
| 12. | ZS18C08100 | [4] | SCREW,Hex, M8 x 100mm | KOBScrew -- M08x1.25x100mm |
| 13. | ZW26X06000 | [6] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 14. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 15. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 16. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 17. | ZW16X06000 | [8] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 18. | YN20M01046D3 | [2] | PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 800.00mm | KOBProtective Plastic |
| 19. | YN20M01094DB | [1] | RIGID TUBE,25mm ID x 30mm OD x 2000mm Length | KOB |
| 20. | 2418Z1333D7 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1000mm Length | HIT |
| 21. | YN20M01192P1 | [1] | SUPPORT | KOB |
| 22. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 23. | 2444Z3924D5 | [2] | HOSE | KOB(L=350mm) |
| 24. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 26. | 2418Z1333D15 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 300mm Length | KOBProtective Plastic |
| 27. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 28. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 29. | ZS18C10035 | [1] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 30. | 2418T22259 | [1] | BOSS | KOB |
| 31. | YM20M01001P1 | [1] | BRACKET | KOB |
| 32. | 2418Z1333D3 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 750mm Length | KOBProtective Plastic |
