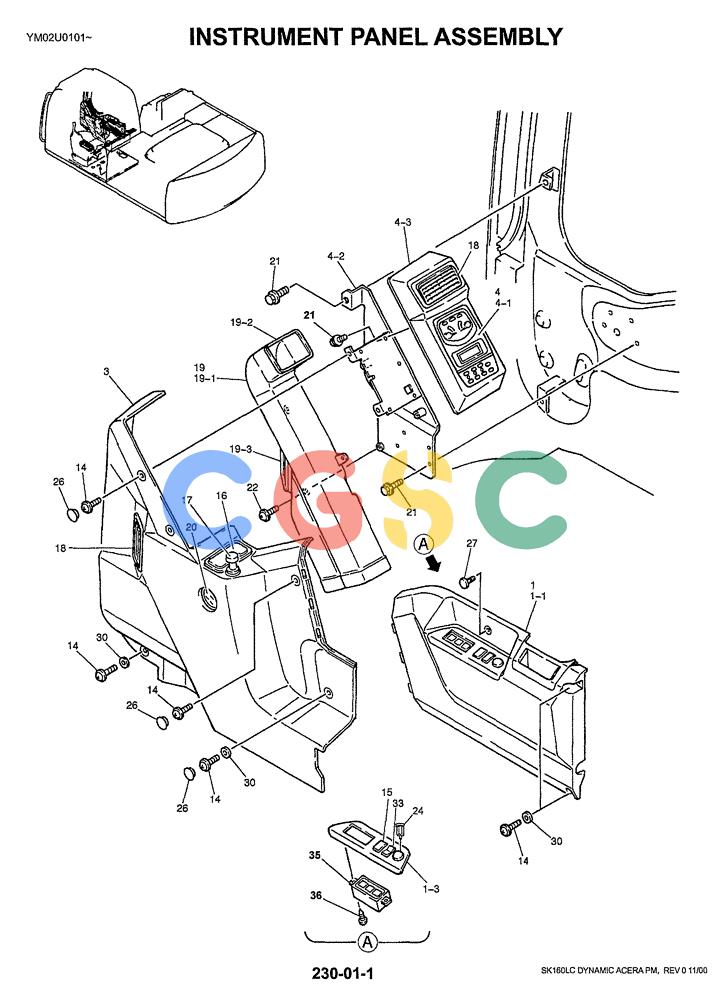

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-051[01]) - INSTRUMENT PANEL ASSY Kobelco

作者：广数供应链运营团队
浏览数：
时间：2025-01-28 22:04:08
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos.Part NoQtyParts nameComments
. . YN17M00011F1 [1]  PANEL KOBINSTRUMENT ASSY, QTY-F1: F1
. . YN17M00011F2 [1]  PANEL KOB(NIBBLER & BREKER), QTY-F2: F2
1. YN17M01051F1 [1]  COVER KOBQTY-F1: 1, QTY-F2: 1
1-1. YN17M01048P1 [1]  COVER KOBQTY-F1: 1, QTY-F2: 1
1-3. YN17M01064P1 [1]  PANEL KOBQTY-F1: 1, QTY-F2: 1
2. YN17M01052F1 [1]  COVER KOBASSY, QTY-F1: 1, QTY-F2: 1
2-1. YN17M01049P1 [1]  COVER KOBQTY-F1: 1, QTY-F2: 1
2-2. YN52S00009P1 [1]  POTENTIOMETER KOB(Used for Engine Acceleration) SE-16, QTY-F1: 1, QTY-F2: 1
2-3. YN50S00002F1 [1]  IGNITION SWITCH KOBASSY, (SW-1), QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN50S00026F1
2-3A. 2420Z1030D2 [1]  KIT KOBKEY, QTY-F1: 1, QTY-F2: 1, APPLICABLE: (YN50S00002S001) Superseded by part number: PM50S01001P1
2-5. YN17M01062P1 [1]  BRACKET KOBQTY-F1: 2, QTY-F2: 2
2-6. YN17M01063P1 [1]  BRACKET KOBQTY-F1: 2, QTY-F2: 2
2-7. YN02C01877D2 [8]  SCREW KOBM03x10mm Self-Taper, QTY-F1: 8, QTY-F2: 8
2-8. ZS31C04012 [1]  BOLT,Phillips Drive, Pan HD, M4 x 12mm KOBQTY-F1: 2, QTY-F2: 2
2-10. YN17M01070P1 [1]  LABEL KOBQTY-F1: 1, QTY-F2: 1
2-11. YN17M01069P1 [1]  LABEL KOBEngine Accel - QTY-F1: 1, QTY-F2: 1
2-12. ZW16P04000 [1]  WASHER KOBID 04 x OD 09 x Th 0.8mm, QTY-F1: 2, QTY-F2: 2
3. YN17M01047P1 [1]  COVER KOBQTY-F1: 1, QTY-F2: 1
4. YN59E00004F1 [1]  GAUGE KOBQTY-F1: 1, QTY-F2: 1 Superseded by part number: YN59E00017F1, YN17M01139P1
4-1. LC59S00001F2 [1]  GAUGE KOB(C-2), QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN59E00017F1, YN17M01139P1
4-2. YN17M01061P3 [1]  U-BRACKET KOBQTY-F1: 1, QTY-F2: 1 Superseded by part number: YN17M01108P1
4-3. YN17M01066F1 [1]  COVER KOBASSY, QTY-F1: 1, QTY-F2: 1
5. YN02C01877D2 [4]  SCREW KOBM03x10mm Self-Taper, QTY-F1: 4, QTY-F2: 4
6. YN17M01050P1 [1]  COVER KOBQTY-F1: 1, QTY-F2: 1
7. YN54S00006P1 [1]  SPEAKER KOBQTY-F1: 2, QTY-F2: 2 Superseded by part number: YN54S00050P2
8. LB54S00001P1 [1]  RADIO KOBTUNER, QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN54S00074P1
9. 2420R1089D1 [1]  BOLT,M5 x 10mm KOB(Incls. Washer & Lockwasher), QTY-F1: 4, QTY-F2: 4
10. ZS32T40012 [1]  SCREW KOBM04x12mm Self-Taper, QTY-F1: 8, QTY-F2: 8
11. ZW16K04000 [1]  WASHER KOBID 04 x OD 08 x Th 0.8mm, QTY-F1: 8, QTY-F2: 8
12. ZM46C06020 [1]  BOLT KOBM06x1.0x20mm (Incls. Washer & Lockwasher), QTY-F1: 8, QTY-F2: 8
13. YX17M01003P1 [1]  BRACKET KOBQTY-F1: 2, QTY-F2: 2
14. ZM46C06016 [7]  SCREW KOBM06x1.0x16mm (Incls. Washer & Lockwasher), QTY-F1: 7, QTY-F2: 7
15. YN17M01032P1 [1]  CAP KOBQTY-F1: 7, QTY-F2: 6
16. YN02C01385F1 [1]  TRAY KOBASH, QTY-F1: 1, QTY-F2: 1
17. 2421R180F1 [1]  CIGARETTE LIGHTER KOB(E-14), QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN81S00003P1
18. YN20M01220P1 [1]  VENT KOBGRILLE, QTY-F1: 2, QTY-F2: 2
19. YN20M01297F1 [1]  DUCT KOBASSY, QTY-F1: 1, QTY-F2: 1
19-1. YN20M01219P1 [1]  DUCT KOBASSY, QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN20M01297F1
19-2. YN20M01297S002 [1]  SEAL KOBQTY-F1: 1, QTY-F2: 1
19-3. YN20M01297S003 [1]  SEAL KOBQTY-F1: 1, QTY-F2: 1
20. YN58S00006P1 [1]  METER KOBHOUR (E-3), QTY-F1: 1, QTY-F2: 1
21. ZM61C08020 [1]  BOLT KOBM08x1.25x12mm (Incls. Washer & Lockwasher), QTY-F1: 5, QTY-F2: 5
22. ZM66C06012 [1]  BOLT KOBM06x1.0x12mm (Incls. Washer & Lockwasher), QTY-F1: 3, QTY-F2: 3
23. YN17M01072P1 [1]  CABLE KOB2000mm Long (78-3/4 in), QTY-F1: 1, QTY-F2: 1 Superseded by part number: 72203961
24. YN81S00001P1 [1]  SOCKET KOB(12V Accessory), QTY-F1: 1, QTY-F2: 1
25. YN17M01055D1 [1]  CAP KOBQTY-F1: 3, QTY-F2: 3
26. YN17M01055D2 [1]  CAP KOBQTY-F1: 4, QTY-F2: 4
27. YN17M01068P1 [1]  SCREW KOBQTY-F1: 1, QTY-F2: 1
28. YN17M01060P1 [1]  CAP KOBQTY-F1: 1, QTY-F2: 1
29. 2479U1190F13 [1]  SWITCH KOB(SW-35) (Heavy Lift), QTY-F1: 1, QTY-F2: 1
30. 2420T4505 [1]  WASHER,7mm ID x 16mm OD x 1mm Thk KOBQTY-F1: 4, QTY-F2: 4
31. 2479U1224F4 [1]  SWITCH KOB(SW-3) (Two speed Travel Select), QTY-F1: 1, QTY-F2: 1
32. 2479U1190F5 [1]  SWITCH KOB(SW-36) (Independent Travel), QTY-F1: 1, QTY-F2: 1
33. 2479U1190F9 [1]  SWITCH KOB(SW-9) (Swing Flasher), QTY-F1: 1, QTY-F2: 1
34. 2420Z1330 [1]  GROMMET KOBQTY-F1: 1, QTY-F2: 1
35. YN50E00003F1 [1]  SWITCH KOBASSY (SW-20) (Wiper, Washer, Work Light), QTY-F1: 1, QTY-F2: 1
36. YN02C01877D1 [1]  SCREW KOBM03x16mm Self-Taper, QTY-F1: 2, QTY-F2: 2
37. 2479U1190F31 [1]  SWITCH KOBAutomatic Warm-Up (SW-38), QTY-F1: 1, QTY-F2: 1
38. 2479U1190F32 [1]  SWITCH KOB(SW-15) (Conflux/Single Select), QTY-F1: -, QTY-F2: 1
39. YN50E00002F1 [1]  SWITCH KOBASSY (SW-2) (Buzzer Stop, Work Mode), QTY-F1: 1, QTY-F2: 1
40. ZM46C05012 [2]  BOLT KOBM05x0.8x12mm (Incls. Washer & Lockwasher), QTY-F1: 2, QTY-F2: 2
