Pos.	Part No	Qty	Parts name	Comments

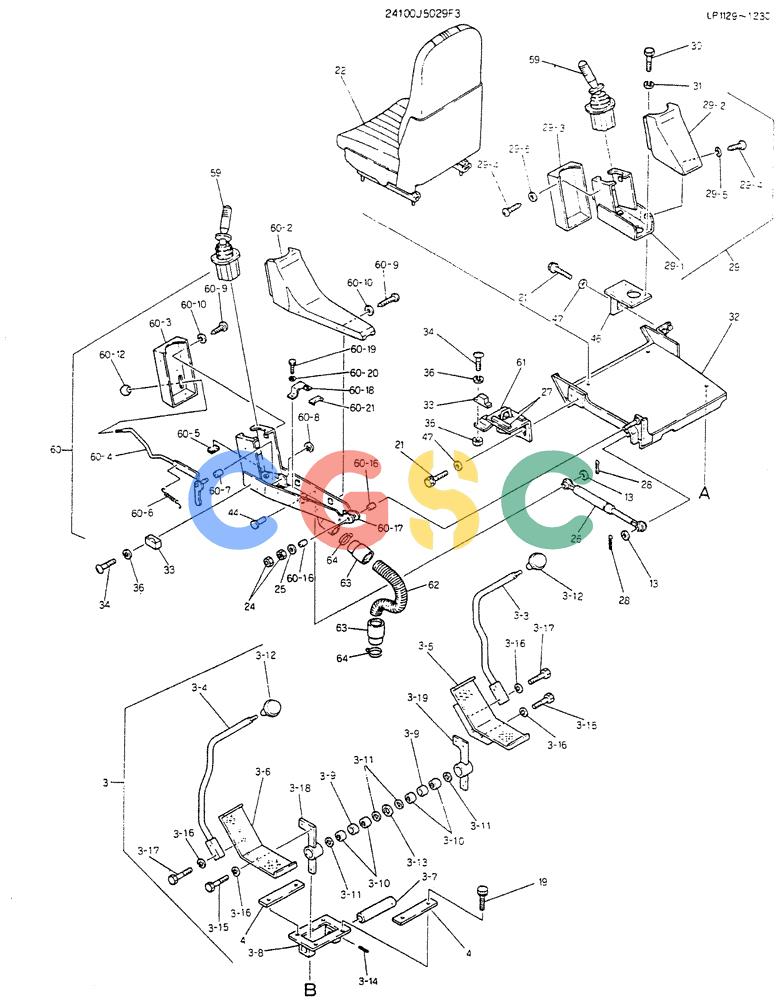

. .	24100J5029F3	[1]	CONTROL ASSY
2.	2419T3612	[1]	PIN	PIN
3.	24100N2814F2	[1]	LEVER ASSY, CONTROL	LEVER ASSY, CONTROL
3-3.	2406P2495D1	[1]	LEVER, CONTROL	LEVER, CONTROL
3-4.	2406P2495D2	[1]	LEVER, CONTROL	LEVER, CONTROL
3-5.	2406P2496D1	[1]	PEDAL	KOB
3-6.	2406P2496D2	[1]	PEDAL	KOB
3-7.	4019T12	[1]	PIN	KOB
3-8.	4016P16	[1]	BRACKET	KOB
3-9.	4018T20	[2]	SPACER	KOB
3-10.	4025Z8	[4]	NEEDLE BEARING	KOB
3-11.	4045Z8	[4]	OIL SEAL	KOB
3-12.	6Z1	[2]	LEVER	KOB
3-13.	3611V012	[1]	WASHER	KOB
3-14.	ZP15D05065	[1]	COTTER PIN	KOB
3-15.	ZS16C10025	[4]	SCREW	KOBM10x1.50x25mm Superseded by part number: ZS18C10025
3-16.	ZW26X10000	[8]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
3-17.	ZS16C10038	[4]	CAPSCREW
3-18.	2406T1678D1	[1]	LINK	KOB
3-19.	2406T1678D2	[1]	LINK	KOB
4.	2418T10657	[2]	PLATE
5.	2405U101D1208	[6]	BUSHING	KOB
6.	2406T1670	[2]	LEVER	KOB
7.	2406T1675	[4]	LINK	KOB
8.	2419T3642D2	[2]	PIN	PIN
11.	2406T1672	[4]	YOKE	KOB Superseded by part number: 2406T2278
12.	2419T3644D1	[2]	PIN	PIN
13.	ZW16X08000	[4]	WASHER,8mm ID x 17mm OD x 1.6mm Thk	KOBID 08 x OD 17 x Th 1.6mm
14.	2419T3642D1	[6]	PIN	KOB Superseded by part number: 2419T3784D1
15.	2419R9D4	[8]	COTTER PIN	KOBSnap -- OD 12mm x 35.8mm Long
16.	ZW16X12000	[8]	WASHER	KOBID 12 x OD 24 x Th 2.3mm
17.	ZN16C06005	[4]	NUT	KOBM06x1.0mm Superseded by part number: ZN18C06005
19.	ZM11C10030	[4]	SCREW	KOBM10x1.50x30mm (Incls. Lockwasher)
20.	2416P7201	[1]	STAND, SEAT	STAND, SEAT
21.	ZM11C10025	[8]	BOLT	KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025
22.	2448U229F1	[1]	SEAT	KOB
24.	ZN16C16010	[2]	NUT	KOB
25.	ZW16X16000	[1]	WASHER	KOBID 16 x OD 30 x Th 3.2mm
26.	2417R63	[1]	SPRING	KOBGAS
27.	2416Z312D17	[2]	SHEET, RUBBER	SHEET, RUBBER
28.	ZP15K02020	[2]	SPLIT PIN	KOB
29.	24100N2792F1	[1]	SUPPORT ASSY	SUPPORT ASSY
29-1.	2416P7220	[1]	SUPPORT	SUPPORT
29-2.	2414P2906	[1]	COVER	KOB
29-3.	2414T1973	[1]	COVER	COVER
29-4.	ZS31C05014	[6]	SCREW,Phillips Drive, Pan HD, M5 x 14mm	KOBM05x0.8x14mm
29-5.	ZW11P05000	[6]	WASHER	KOB Superseded by part number: ZW16P05000
30.	ZS18C08014	[4]	SCREW,Hex, M8 x 14mm	KOBM08x1.25x14mm
31.	ZW22X08000	[4]	LOCK WASHER	KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583
32.	2416N2771	[1]	SUPPORT	SUPPORT
33.	2479Z892	[1]	SWITCH	KOB
34.	ZS31C03014	[4]	SCREW,Phillips Drive, Pan HD, M3 x 14mm	KOBM03x0.5x14mm
35.	ZN11C03003	[2]	NUT	KOBM03x0.5mm
36.	ZW22X03000	[4]	WASHER	KOB
37.	2420Z699	[5]	GROMMET	KOB
40.	2427R431	[1]	MAT, FLOOR	MAT, FLOOR
42.	2427R433	[1]	MAT, FLOOR	MAT, FLOOR
43.	2422P583	[1]	FRAME, UPP
44.	2419T3603	[1]	PIN	PIN
46.	2416P7247	[1]	SUPPORT	SUPPORT
47.	2418T5373D2	[4]	WASHER
48.	ZS13C16100	[4]	SCREW	KOB
49.	2419R9D2	[2]	COTTER PIN	KOBOD 08mm x 27.7mm Long
51.	ZM11C08020	[2]	BOLT	KOBM08x1.25x20mm (Incls. Lockwasher) Superseded by part number: ZM12C08020
53.	2422P595	[1]	FRAME/ UPP
54.	2486R71	[1]	CABLE	KOB
55.	2432T1806	[1]	LABEL	LABEL
56.	2406R223D1	[1]	FLEXIBLE CONTROL	KOBCABLE
57.	2406R223D3	[1]	FLEXIBLE CONTROL	KOB
59.	24100J4972F2	[1]	REMOTE-CONTROL ASSY, P. 101-35
60.	24100N2790F2	[1]	SUPPORT ASSY	SUPPORT ASSY
60-2.	2414P2905	[1]	COVER	KOB
60-3.	2414T1974	[1]	COVER
60-4.	2406P2491	[1]	LEVER	KOB
60-5.	2416Z332	[1]	SHEET	KOB
60-6.	2417Z252	[1]	SPRING	KOB
60-7.	2418T10552D4	[1]	SPACER	KOB
60-8.	ZR36X00600	[1]	SNAP RING	KOBE-Ring -- Shaft 06mm x OD 12mm
60-9.	ZS31C05014	[8]	SCREW,Phillips Drive, Pan HD, M5 x 14mm	KOBM05x0.8x14mm
60-10.	ZW11P05000	[8]	WASHER	KOB Superseded by part number: ZW16P05000
60-12.	2406Z294D3	[1]	GRIP	KOB
60-16.	2405U101D1612	[2]	BUSHING	KOB
60-17.	2416N2801	[1]	SUPPORT
60-18.	2432T1818	[1]	CLAMP	CLAMP
60-19.	ZS18C08016	[2]	SCREW,Hex, M8 x 16mm	KOBM08x1.25x16mm
60-20.	ZW26X08000	[2]	LOCK WASHER	KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583
60-21.	2416T11070	[1]	SEAT, RUBBER	SEAT, RUBBER
61.	2416P7291	[1]	SUPPORT	KOB
62.	2444Z2256	[1]	HOSE	HOSE
63.	2444Z2255	[2]	CONNECTOR	CONNECTOR
64.	ZC15X05000	[2]	CLIP	KOB
65.	2416T11050	[1]	BRACKET
66.	ZS18C08025	[2]	SCREW,Hex, M8 x 25mm	KOBM08x1.25x25mm
67.	ZW26X08000	[2]	LOCK WASHER	KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583
68.	2422N787	[1]	PLATE, FLOOR
69.	2416T11051	[1]	BRACKET BRACKET	BRACKET BRACKET
70.	2427R449	[1]	MAT, FLOOR
71.	2427R450	[1]	MAT, FLOOR
