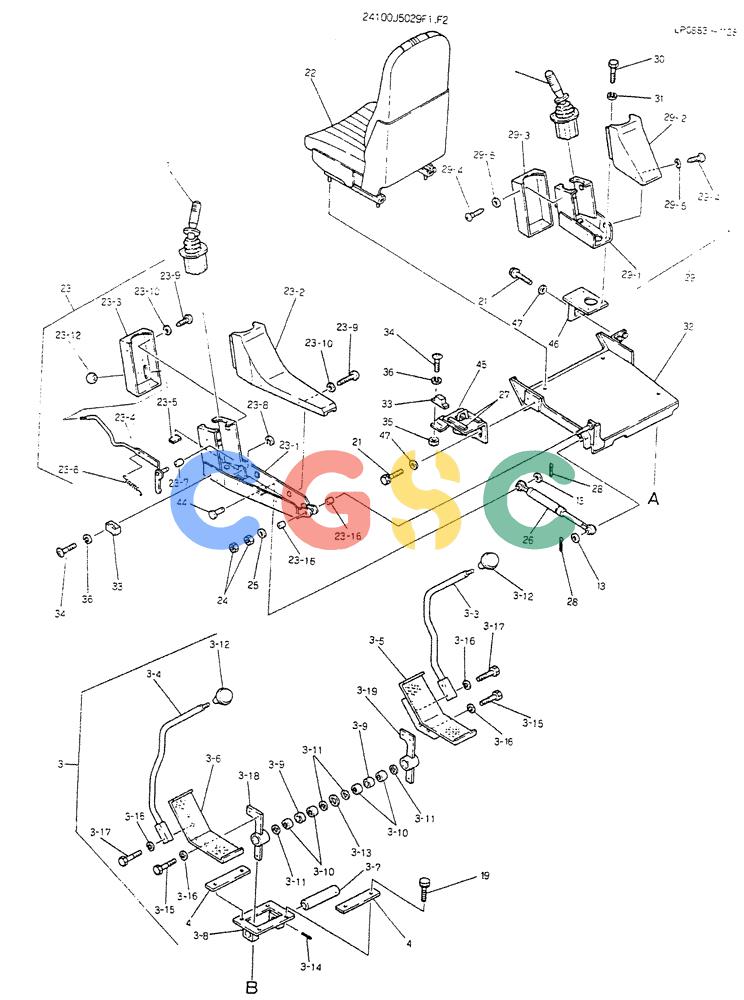

Pos.	Part No	Qty	Parts name	Comments
. .	24100J5029F1	[1]	CONTROL ASSY, Serial Range: LP0883-l068
. .	24100J5029F2	[1]	CONTROL ASSY, Start Serial: LP1069	CONTROL ASSY, Start Serial: LP1069
1.	24100J4972F1	[1]	REMOTE-CONTROL ASSY SEE FIG:03-008	REMOTE-CONTROL ASSY SEE FIG:03-008
2.	2419T3612	[1]	PIN	PIN
3.	NSS	[1]	NOT SOLD SEPARAT	CONLEVER ASSY, CONTROL
1-5.	NSS	[1]	NOT SOLD SEPARAT	CONLEVER , CONTROL
1-4.	NSS	[1]	NOT SOLD SEPARAT	CONLEVER , CONTROL
3-6.	NSS	[1]	NOT SOLD SEPARAT	CONPEDAL
3-7.	4019T12	[1]	PIN	KOB
3-8.	4016P16	[1]	BRACKET	KOB
3-9.	4018T20	[2]	SPACER	KOB
3-10.	4025Z8	[4]	NEEDLE BEARING	KOBROLLER
3-11.	4045Z8	[4]	OIL SEAL	KOB
3-12.	6Z1	[2]	LEVER	KOB
3-13.	NSS	[1]	NOT SOLD SEPARAT	CONWASHER
3-14.	NSS	[1]	NOT SOLD SEPARAT	CONCOTTER-PIN
3-15.	NSS	[4]	NOT SOLD SEPARAT	CONCASCREW
3-16.	ZW26X10000	[8]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
3-17.	ZS16C10038	[4]	CAP SCREW
3-18.	2406T1678D1	[1]	LINK	KOB
3-19.	2406T1678D2	[1]	LINK	KOB
4.	NSS	[2]	NOT SOLD SEPARAT	CONPLATE
5.	NSS	[6]	NOT SOLD SEPARAT	CONBRUSHING
6.	NSS	[2]	NOT SOLD SEPARAT	CONLEVER
7.	2406T1675	[4]	LINK	KOB
8.	2419T3642D2	[2]	PIN	PIN
9.	2406R176D13	[1]	CABLE	KOBLP08, Serial Range: 83-1068
10.	NSS	[1]	NOT SOLD SEPARAT	CONCABLE,CONTROL, Serial Range: LP0883-I068
11.	2406T1672	[4]	YOKE	KOB Superseded by part number: 2406T2278
12.	2419T3644D1	[2]	PIN	PIN
13.	ZW16X08000	[4]	WASHER,8mm ID x 17mm OD x 1.6mm Thk	KOBID 08 x OD 17 x Th 1.6mm
14.	2419T3642D1	[6]	PIN	KOBPIN Superseded by part number: 2419T3784D1
15.	2419R9D4	[8]	COTTER PIN	KOBSnap -- OD 12mm x 35.8mm Long, Start Serial: LP0883~1068
16.	ZW16X12000	[8]	WASHER	KOBID 12 x OD 24 x Th 2.3mm
17.	ZN16C06005	[4]	NUT	KOBM06x1.0mm Superseded by part number: ZN18C06005
18.	ZN16C12010	[8]	NUT	KOBNUT Superseded by part number: ZN18C12010
19.	ZM11C10030	[4]	SCREW	KOBM10x1.50x30mm (Incls. Lockwasher)
20.	2416B7201	[1]	STAND,SEAT
21.	ZM11C10025	[8]	BOLT	KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025
22.	2448U229F1	[1]	SEAT	KOBSEAT,OPERATORS
23.	24100N2790F1	[1]	SUPPORT ASSY	SUPPORT ASSY
21-1.	NSS	[1]	NOT SOLD SEPARAT	CONSUPPORT
23-2.	NSS	[1]	NOT SOLD SEPARAT	CONCOVER
23-3.	NSS	[1]	NOT SOLD SEPARAT	CONCOVER
23-4.	2406P2491	[1]	LEVER	KOB
23-5.	2416Z332	[1]	SHEET	KOB
23-6.	2417Z252	[1]	SPRING	KOB
23-7.	2418T10552D4	[1]	SPACER	KOB
23-8.	ZR36X00800	[1]	SNAP RING	KOBSNAP
23-9.	NSS	[8]	NOT SOLD SEPARAT	CONMACHINESCREW
23-10.	NSS	[8]	NOT SOLD SEPARAT	CONWASHER
23-12.	NSS	[1]	NOT SOLD SEPARAT	CONGRIP
23-16.	NSS	[2]	NOT SOLD SEPARAT	CONBUSHIN
24.	ZN16C16010	[2]	NUT	KOB
25.	ZW16X16000	[1]	WASHER	KOBID 16 x OD 30 x Th 3.2mm
26.	2417R63	[1]	SPRING	KOBGAS
27.	2416Z312D17	[2]	SHEET, RUBBER	SHEET, RUBBER
28.	ZP15K02020	[1]	SPLIT PIN	KOB
29.	24100N2792F1	[1]	SUPPORT ASSY	SUPPORT ASSY
29-1.	2416P7220	[1]	SUPPORT	SUPPORT
29-2.	2414P2906	[1]	COVER	KOB
29-3.	2414T1973	[1]	COVER	COVER
29-4.	ZS31C05014	[6]	SCREW,Phillips Drive, Pan HD, M5 x 14mm	KOBM05x0.8x14mm
29-5.	ZW11P05000	[6]	WASHER	KOB Superseded by part number: ZW16P05000
30.	ZS18C08014	[4]	SCREW,Hex, M8 x 14mm	KOBM08x1.25x14mm
31.	ZW22X08000	[4]	LOCK WASHER	KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583
32.	2416N2771	[1]	SUPPORT	SUPPORT
33.	2479Z892	[1]	SWITCH	KOB
34.	NSS	[4]	NOT SOLD SEPARAT	CONMACHINESCREW
35.	NSS	[2]	NOT SOLD SEPARAT	CONNUT
36.	ZW22X03000	[4]	WASHER	KOB
37.	2420Z699	[5]	GROMMET	KOB
38.	2427N1641	[1]	PLATE, FLOOR LP0883 to 1 06 8
39.	2427R434	[1]	MAT, FLOOR	MAT, FLOOR
4 0.	2427R431	[1]	MAT, FLOOR	MAT, FLOOR
41.	2427R432	[1]	MAT, FLOOR	MAT, FLOOR
42.	2427R433	[1]	MAT, FLOOR	MAT, FLOOR
43.	NSS	[1]	NOT SOLD SEPARAT	CONFRAME, UPP
44.	2419T3603	[1]	PIN SHAFT	PIN SHAFT
45.	2416P7246	[1]	SUPPORT	SUPPORT
46.	2416P7247	[1]	SUPPORT	SUPPORT
47.	NSS	[4]	NOT SOLD SEPARAT	CONWASHER
48.	ZS13C16100	[4]	SCREW	KOB
49.	2419R9D2	[2]	COTTER PIN	KOBOD 08mm x 27.7mm Long
50.	2416T10969	[1]	BRACKET
51.	NSS	[2]	NOT SOLD SEPARAT	CONSEMS-BOLT
52.	ZN16C08007	[2]	NUT	KOBM08x1.25mm Superseded by part number: ZN18C08007
53.	2422P595	[1]	FRAME, UPP
54.	2486R71	[1]	CABLE	KOBCABLE
55.	2432T1806	[1]	LABEL	LABEL
56.	2406R223D1	[1]	FLEXIBLE CONTROL	KOBCABLE, CONTROL, Start Serial: LP1069
57.	2406R223D2	[1]	FLEXIBLE CONTROL	KOB, Start Serial: LP1069
58.	2422N776	[1]	PLATE, FLOOR, Start Serial: LP1069
