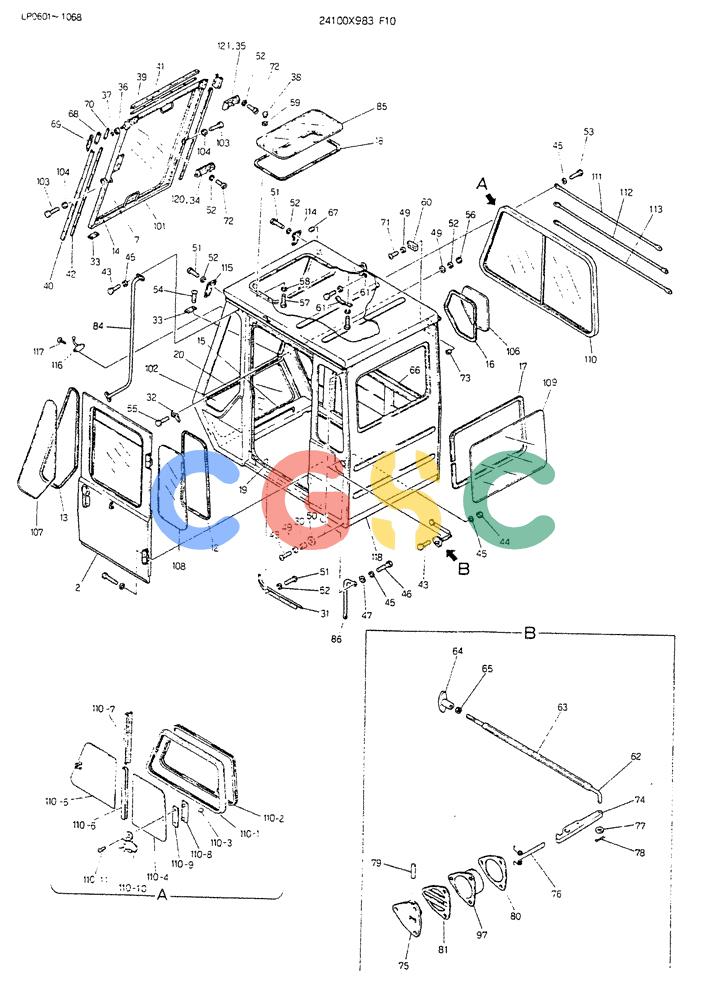

Pos.	Part No	Qty	Parts name	Comments
. .	24100X983F10	[1]	CAB ASSY	CAB ASSY
2.	24100J2500F1	[1]	DOOR ASSY SEE FIG:02-010	DOOR ASSY SEE FIG:02-010
7.	2427T637	[1]	GLASS	HIT
12.	R27T0006D37	[1]	GROMMET	KOB
13.	R27T0006D36	[1]	RUBBER	KOB
14.	R27T0006D60	[1]	CHANNEL	KOB
15.	R27T0006D61	[1]	GROMMET	KOB
16.	R27T0006D27	[1]	GROMMET	KOB
17.	R27T0006D62	[1]	CHANNEL, RUBBER	CHANNEL, RUBBER
18.	2427T526	[1]	SEAT	KOB
19.	2416Z220D3	[1]	RUBBER SLEEVE	KOBTRIM, SPONGE
20.	2416Z220D1	[1]	SEAL	KOB
30.	2416T6167	[2]	RUBBER SLEEVE	KOB
31.	2416P4734	[1]	BRACKET
32.	2427P1395	[2]	LATCH	KOBHOOK
33.	2416T6303	[2]	RUBBER SLEEVE	KOB
34.	2427P1392F2	[1]	LATCH (120), Serial Range: LP0601-LP0750	LATCH (120), Serial Range: LP0601-LP0750
35.	2427P1392F1	[1]	LATCH (120), Serial Range: LP0601-LP750	LATCH (120), Serial Range: LP0601-LP750
36.	2427Z382	[4]	ROLLER	KOB
37.	ZR36X00800	[4]	SNAP RING	KOBSNAP
38.	2420T3422	[10]	NUT	NUT
39.	2416T7503	[1]	BRACKET	KOB
to.	2416T7504	[2]	BRACKET	BRACKET
41.	2421Z231D4	[1]	BRUSH	BRUSH
42.	2421Z231D5	[2]	BRUSH	BRUSH
43.	ZS16C08020	[7]	SCREW	KOBCAPSCREW M08x1.25x20mm Superseded by part number: ZS18C08020
44.	ZN16C08007	[3]	NUT	KOBM08x1.25mm Superseded by part number: ZN18C08007
45.	ZW26X08000	[15]	LOCK WASHER	KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583
46.	ZS16C08016	[2]	SCREW	KOBM08x1.25x16mm Superseded by part number: ZS18C08016
47.	ZW16X08000	[2]	WASHER,8mm ID x 17mm OD x 1.6mm Thk	KOBID 08 x OD 17 x Th 1.6mm
48.	ZS31C06040	[2]	SCREW,Phillips Drive, Pan HD, M6 x 40mm	KOBM06x1.0x40mm
49.	ZW16K06000	[10]	WASHER	KOBID 06 x OD 11.5 x Th 1.6mm
50.	2418T6681	[2]	PLATE	KOB
51.	ZS16C06008	[9]	CAPSCREW M06x1.0x08mm	CAPSCREW M06x1.0x08mm
52.	ZN16C06000	[13]	NUT
53.	ZS31C08020	[6]	MACHINE SCREW M08x1.25x20mm	MACHINE SCREW M08x1.25x20mm
54.	ZS41C06012	[4]	MACHINE SCREW M06x1.0x12mm	MACHINE SCREW M06x1.0x12mm
55.	ZS16C06012	[1]	SCREW	KOBM06x1.0x12mm
56.	ZN16C06005	[4]	NUT	KOBM06x1.0mm Superseded by part number: ZN18C06005
57.	ZS31C05014	[10]	SCREW,Phillips Drive, Pan HD, M5 x 14mm	KOBM05x0.8x14mm
58.	ZW26X05000	[10]	LOCK WASHER	KOBLock -- ID 05 x OD 09 x Th 1.3mm
59.	2418T6080	[10]	PACKING	PACKING
60.	2416T6170	[2]	RUBBER	RUBBER
61.	2418T3991	[2]	PLATE	KOB
62.	2406T1364	[1]	ROD	KOB
63.	ZX15K06035	[1]	TUBE, NYLON	TUBE, NYLON
64.	2406Z194	[1]	GRIP	KOB
65.	ZN16C05004	[1]	NUT	KOBM05x0.8mm Superseded by part number: ZN18C05004
66.	2416Z220D4	[1]	SEAL	KOB
67.	2405T757	[2]	BUSHING	BUSHING
68.	2416T7505	[2]	BRACKET	KOB
69.	2416T7506	[2]	BRACKET	KOB
70.	2421Z231D6	[2]	BRUSH	BRUSH
71.	ZS23C06025	[4]	SCREW,Hex Socket Head, M6 x 25mm	KOBM06x1.0x25mm
72.	ZS23C06016	[12]	SCREW,Hex Socket Head, M6 x 16mm	KOBM06x1.0x16mm Superseded by part number: ZS28C06016
73.	2405T768	[2]	BUSHING	BUSHING
74.	2418T6441	[1]	PLATE	KOB
75.	B16P0146	[1]	BRACKET	BRACKET
76.	B17P0004	[1]	SPRING	KOB
77.	ZW16X10000	[1]	WASHER	KOBID 10 x OD 21 x Th 2.0mm
78.	ZP15K02018	[1]	SPRING	KOBSPLIT Superseded by part number: ZP15K02035
79.	B19P0043D54	[1]	PIN	KOBPIN Superseded by part number: ZP45X10045
80.	2418T6680	[1]	PLATE	PLATE
81.	2418T6709	[1]	PACKING	KOB
84.	2427P1644	[1]	RAIL, HAND	RAIL, HAND
55.	2427T709	[1]	GLASS	KOBGLASS
86.	2427P1417D2	[1]	RAIL,HAND
97.	2414P2613	[1]	COVER	KOB
101.	2427J1249	[1]	FRAME,WINDOW	FRAME,WINDOW
102.	2427T968	[1]	GLASS	HIT
103.	2420Z934	[2]	STOP	KOB
104.	ZN11F10008	[2]	NUT	KOB Superseded by part number: ZN18F10008
106.	2427T511C2	[1]	GLASS	KOB
107.	2427T512C2	[1]	GLASS	HIT
108.	2427T52002	[1]	GLASS
109.	2427T63902	[1]	GLASS
110.	24100P1031F1	[1]	WINDOW	KOB
110-1.	24100P1031S1	[1]	SASH	SASH
110-2.	24100P1031S2	[1]	GUIDE	KOBSEAL
110-3.	24100P1031S3	[4]	SPACER	SPACER
110-4.	2427R421	[1]	GLASS	KOB
110-5.	2427R422	[1]	GLASS	KOB
110-6.	24100P1031S4	[1]	CHANNEL	KOB
110-7.	24100P1031S5	[1]	SEAL	KOBDOOR
110-8.	24100P1031S6	[2]	RETAINER	KOB
110-9.	24100P1031S7	[2]	PACKING	PACKING
110-10.	24100P1031S8	[2]	LOCK	KOB
110-11.	24100P1031S9	[4]	SCREW	KOB
111.	2427P1790D1	[1]	RAIL, HAND	RAIL, HAND
112.	2427P1790D2	[1]	RAIL, HAND	RAIL, HAND
113.	2427P1790D3	[1]	RAIL, HAND	RAIL, HAND
114.	2414P2873D1	[1]	COVER	COVER
115.	2414P2873D2	[1]	COVER	KOB
116.	2408T302	[1]	HOOK
117.	ZS31C06016	[2]	SCREW,Phillips Drive, Pan HD, M6 x 16mm	KOBM06x1.0x16mm
113.	2427X359	[1]	CAB
120.	24100P1062F2	[1]	LATCH	KOB, Start Serial: LP0751
121.	24100P1062F1	[1]	LATCH	KOB, Start Serial: LP0751
