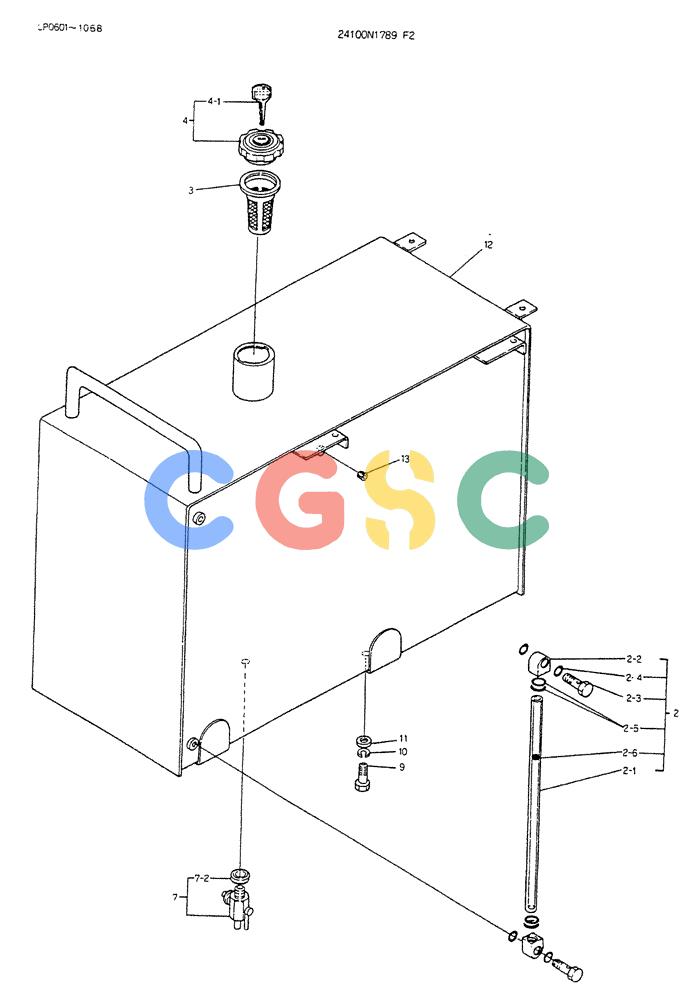

| . . | 24100N1789F2 | [1] | TANK ASSY/ FUEL | |
| 2. | 2489R178F5 | [1] | LEVEL GAUGE | KOB |
| 2-1. | 2489R190 | [1] | LEVEL GAUGE | KOB |
| 2-2. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| 2-3. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| 2-4. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 2-5. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 2-6. | 2489R174S7 | [1] | FLOAT | KOB |
| 3. | R36T0006 | [1] | STRAINER ELEMENT | KOB |
| 4. | 2414Z197D3 | [1] | FILLER CAP | KOB |
| 4-1. | 2420Z754 | [1] | KEY | KOB |
| 7. | 2436R241F1 | [1] | COCK | KOBCOCK Superseded by part number: LC20P01028P1 |
| 7-2. | B14N0094E14 | [1] | PACKING | KOB |
| 9. | ZS11C16035 | [4] | SCREW,Hex, M16 x 35mm, Cl 4.8 | KOBM16x2.0x35mm, Serial Range: LP0601-912 |
| . . | ZS13C16035 | [4] | SCREW | KOBM16x2.0x35mm, Start Serial: LP0913 |
| 10. | ZW26K16000 | [4] | LOCK WASHER | KOBID 16 x OD 24 x Th 3.5mm |
| 11. | R16T0152D2 | [4] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 1?. | 2427J1126 | [1] | FUEL TANK | KOB |
| 13. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
