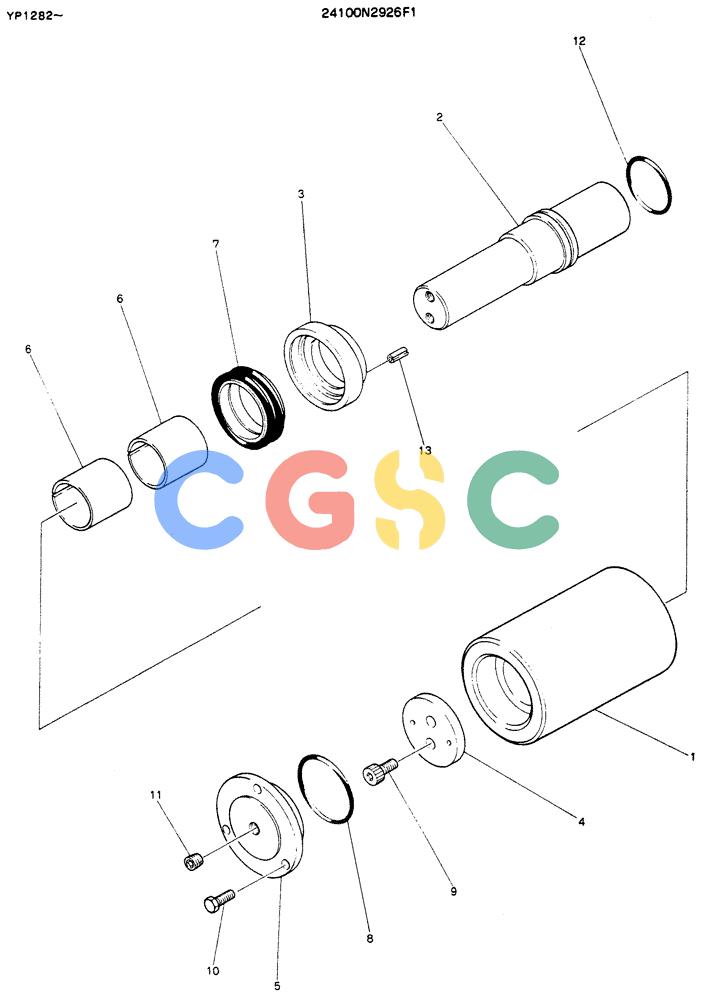

| . . | 24100N2926F1 | [1] | TRACK ROLLER | KOB |
| 1. | 2413N383 | [1] | ROLLER | KOB |
| 2. | 2410P765 | [1] | SHAFT | KOB |
| 3. | 2418P6269 | [1] | COLLAR | KOB |
| 4. | 2418T12244 | [1] | PLATE | KOB |
| 5. | 2414T1445 | [1] | COVER | KOB |
| 6. | 2405T980 | [2] | BUSHING | KOB |
| 7. | R45P0018D2 | [1] | FLOAT | KOB Superseded by part number: 2445R360F1 |
| 8. | ZD11G05500 | [1] | O-RING,54.40mm ID x 60.60mm OD x 3.10mm | KOBID 54.40 ± 0.49 x OD 60mm |
| 9. | ZS23C10020 | [2] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 10. | ZS13C08020 | [3] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 11. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 12. | ZD11G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 13. | ZP26D07018 | [1] | ROLL PIN | KOB |
