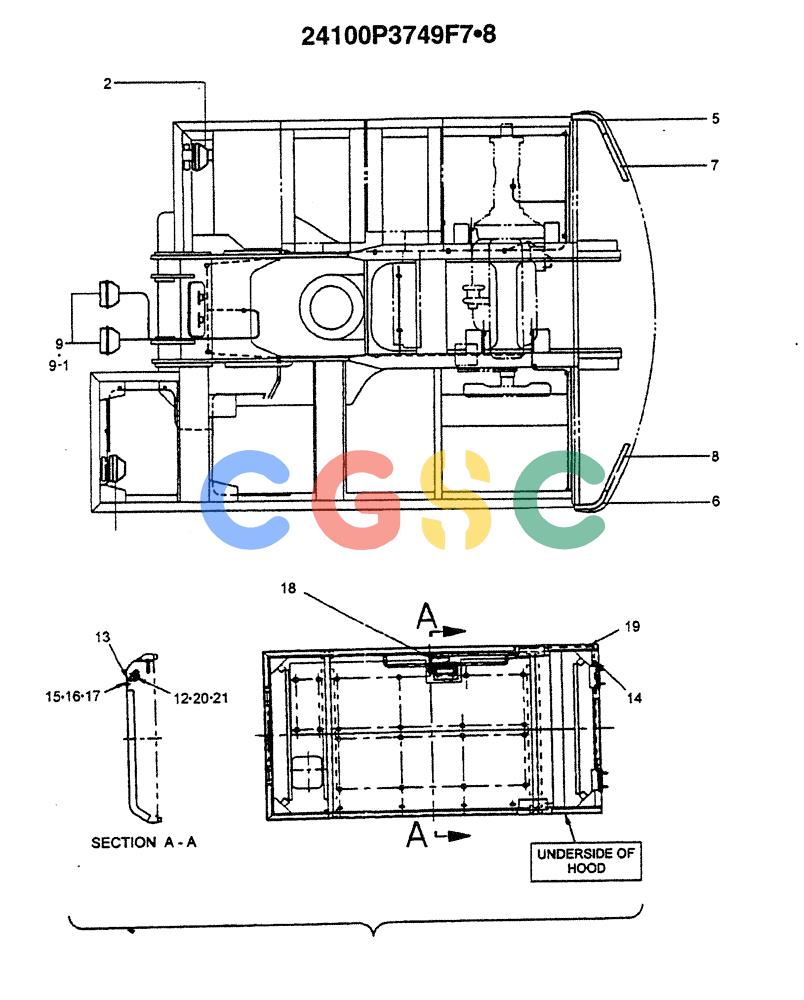

| . . | 24100P3749F7 | [1] | LAMP ASSY (NA, S.A.) | |
| . . | 24100P3749F8 | [1] | LAMP ASSY (EC) | |
| 2. | 2456R248 | [2] | LIGHT,28V, 60W | KOB |
| 5. | 2456U104F3 | [1] | LIGHT,RH, 24V, 25W | KOB |
| 6. | 2456U104F4 | [1] | LAMP,LH, 24V, 25W | KOB |
| 7. | 2456U105F3 | [1] | LIGHT,RH, 24V, 25W | KOBASSY |
| 8. | 2456U105F4 | [1] | LIGHT,LH, 24V, 25W | KOBASSY |
| 9. | 2456R442F1 | [2] | LIGHT | KOBASSY, WORKING (F8 ONLY) |
| 3-1. | 78856 | [2] | BULB | HITSEALED BEAM |
| 12. | 2456R117F2 | [1] | LIGHT | KOBASSY, ENGINE ROOM |
| 13. | 2416T25003 | [1] | BRACKET | KOB(F8 ONLY) |
| 14. | 2432Z309D2 | [10] | CLAMP | KOB(F8 ONLY) |
| 15. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm, (F8 Only) |
| 16. | ZN18C06005 | [2] | NUT | KOBM06x1.0mm, (F8 Only) |
| 17. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm, (F8 Only) |
| 18. | 2479Z761 | [1] | HARNESS | KOB(F8 ONLY) |
| 19. | 2479Z3046D1 | [1] | HARNESS | KOB(F8 ONLY) |
| 20. | ZS31C04010 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 10mm | KOBM04x0.7x10mm, (F8 Only) |
| 21. | ZW16K04000 | [2] | WASHER | KOBID 04 x OD 08 x Th 0.8mm, (F8 Only) |
