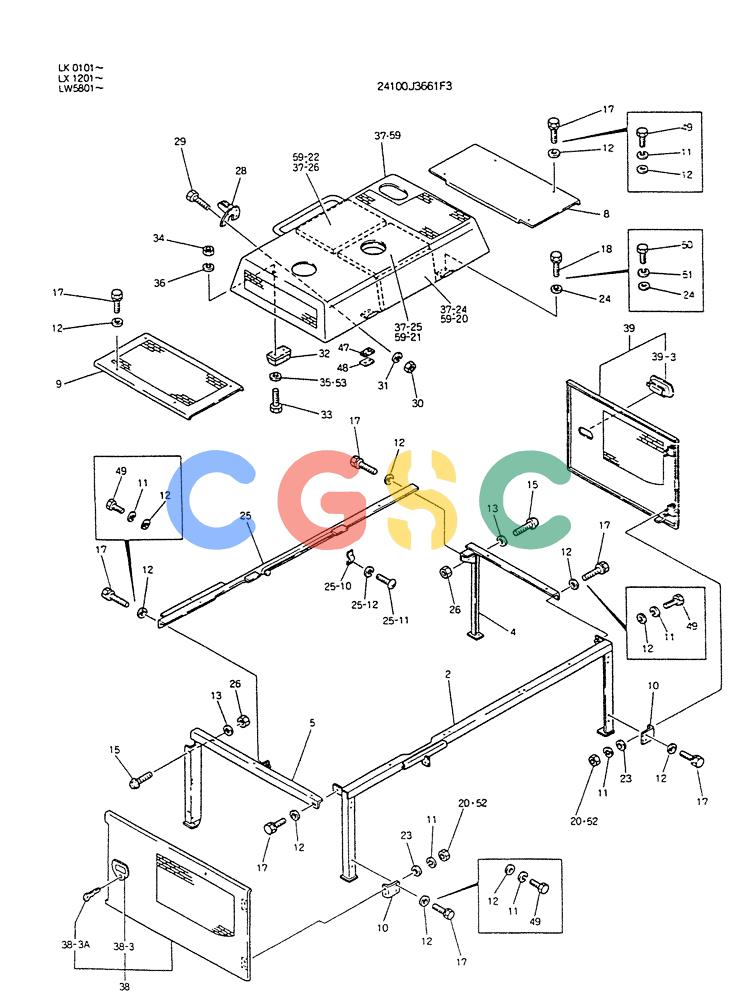

| . . | 24100J3661F3 | [1] | GUARD ASSY (FOR EXPORT) | |
| 2. | 2416J600 | [1] | BRACKET | |
| 4. | 2416N2187 | [1] | BRACKET | |
| 5. | 2416N2186 | [1] | BRACKET | |
| 8. | 2414P2367 | [1] | COVER | |
| 9. | 2414P2366 | [1] | COVER | |
| 10. | 2416T8231 | [4] | BRACKET | KOB |
| 11. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, Serial Range: LX1201-LX1219 |
| 12. | 2418T5373C2 | [20] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 1 3. | ZW16K05000 | [4] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 15. | 2416T6682 | [4] | RUBBER BAND | KOB |
| 1 7. | ZM11C10025 | [20] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher), Serial Range: LX1201-LX1219 Superseded by part number: ZM12C10025 |
| 18. | ZM11C12030 | [4] | SCREW | KOBM12x1.75x30mm (Incls. Lockwasher), Serial Range: LX1201-LX1219 Superseded by part number: ZM12C12030 |
| 20. | ZW16C10008 | [8] | NUT, Serial Range: LX1201-LX1219 | |
| 23. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 24. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 25. | 2416N2744F1 | [1] | CLIP | |
| 25-10. | 816T0530 | [1] | MACHINESCREW | |
| 25-11. | ZS31C06008 | [2] | MACHINE SCREW M06x1.0x08mm | MACHINE SCREW M06x1.0x08mm |
| 25-12. | ZW26K06000 | [2] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| 26. | ZN31C05005 | [4] | NUT | KOB |
| 28. | 2416T9171 | [2] | SUPPORT | SUPPORT |
| 29. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 30. | ZN17C08007 | [8] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 31. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 32. | 2416T9172 | [2] | CUSHION | KOB |
| 33. | ZS18C06025 | [4] | SCREW,Hex, M6 x 25mm | KOBM06x1.0x25mm |
| 34. | ZN17C06005 | [4] | NUT | KOB Superseded by part number: ZN18C06005 |
| 35. | ZW16P06000 | [4] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm, Serial Range: LX1201-LX1219 |
| 36. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm, Serial Range: LW5801-LW6747 |
| 37. | 2414J1014 | [1] | BONNET, Serial Range: LX1201-LX1274 | |
| 37-24. | 2479T332 | [1] | INSULATION, SOUND | |
| 37-25. | 2479T333 | [1] | INSULATION, SOUND | |
| 37-2IS. | 2479T334 | [1] | INSULATION, SOUND | |
| 38. | 2414N1816 | [1] | COVER | KOB |
| 38-3. | 2427R233 | [1] | LOCK | KOB |
| 38-3A. | 2420Z780 | [1] | KEY | KOBLOCK |
| 39. | 2414N1817 | [1] | COVER | |
| 39-3. | 2427P1348 | [1] | LOCK | KOB |
| 47. | 2418T1309 | [2] | PRATE | |
| 48. | 2418T1310 | [2] | PRATE | |
| 49. | ZS18C10025 | [20] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm LK0101 to |
| 50. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm LK0101 to |
| 51. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm LK0101 to |
| 52. | ZN17C10008 | [8] | NUT | KOBM10x1.50mm LK0101 to Superseded by part number: ZN18C10008 |
| 53. | 2418T8844D4 | [4] | SPACER LK0101 to | |
| 59. | 241411042 | [1] | BONNET, Start Serial: LX1275 | |
| 59-21. | 2479T332 | [1] | INSULATION, SOUND | |
| 59-22. | 2479T333 | [1] | INSULATION, SOUND | |
| 59-23. | 2479T334 | [1] | INSULATION, SOUND | |
