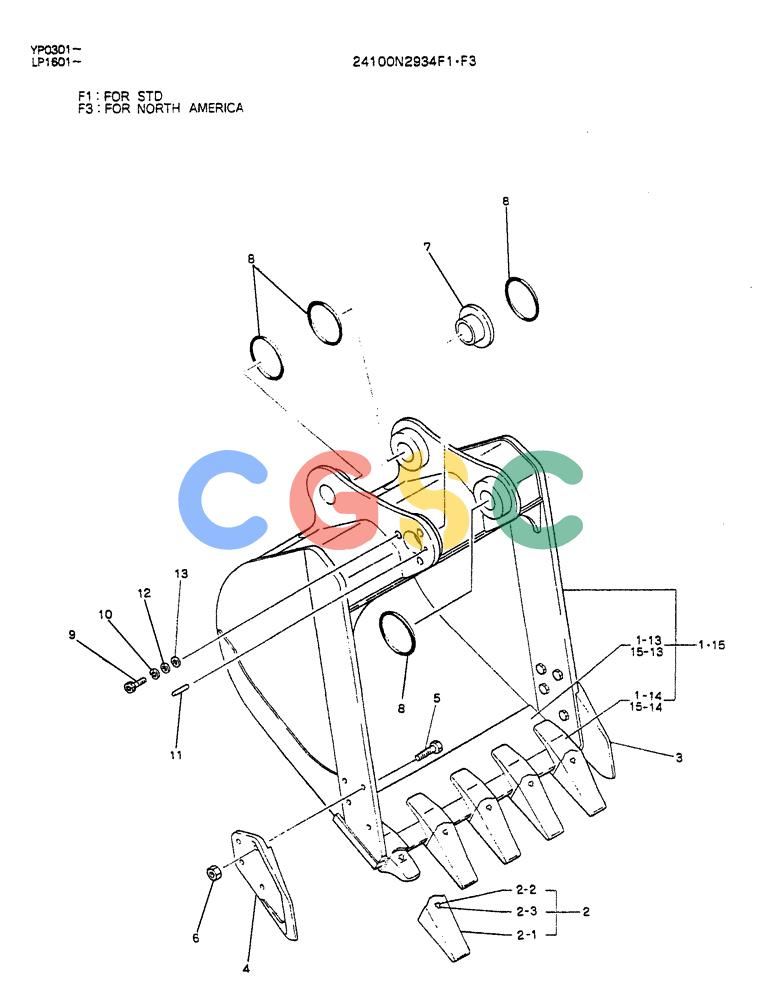

| . . | 24100N2934F1 | [1] | BUCKET ASSY,0.5 CUBIC METER(0.65 CU.YD) | |
| 1. | 2412J638 | [1] | BUCKET | |
| 1-13. | 2412P521D2 | [1] | EDGE, CUTTING | |
| 1-14. | 2412U47 | [5] | ADAPTER | KOB |
| 2. | 2412U16F1 | [5] | TOOTH | KOB |
| 2-1. | 2412U16S1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOB Superseded by part number: B12P0015E3MK |
| 3. | 2412N278D11 | [1] | BLADE | KOB |
| 4. | 2412N278D21 | [1] | BLADE | KOB |
| 5. | ZS13C20050 | [8] | SCREW | KOBM20x2.50x50mm |
| 6. | ZN12C20016 | [8] | NUT | KOBM20x2.50mm |
| 7. | 2405T1047 | [1] | BUSHING | KOB |
| 8. | 2445Z869 | [4] | O-RING,9mm Thk x 115mm ID | KOBID 115 ± 0.40 x OD 133mm |
| 9. | ZS23C14035 | [3] | SCREW,Hex Socket Head, M14 x 35mm | KOBM14x2.0x35mm |
| 10. | ZW22K14000 | [3] | LOCK WASHER | KOBID 14.2 x OD 21.8 x Th 3.5mm |
| 11. | 2419T3772 | [1] | PIN | KOB |
| 12. | 2418T12260D2 | [3] | SHIM | KOB1.0 |
| 13. | 2418T12260D1 | [21] | SHIM | KOB3.2 |
| . . | 24100N2934F3 | [1] | BUCKET ASSY, Start Serial: YP0545- | |
| 15. | 2412J864 | [1] | BUCKET | |
| 15-13. | 2412P521D2 | [1] | EDGE,CUTTING | |
| 15-14. | 2412U47 | [5] | ADAPTER | KOB |
