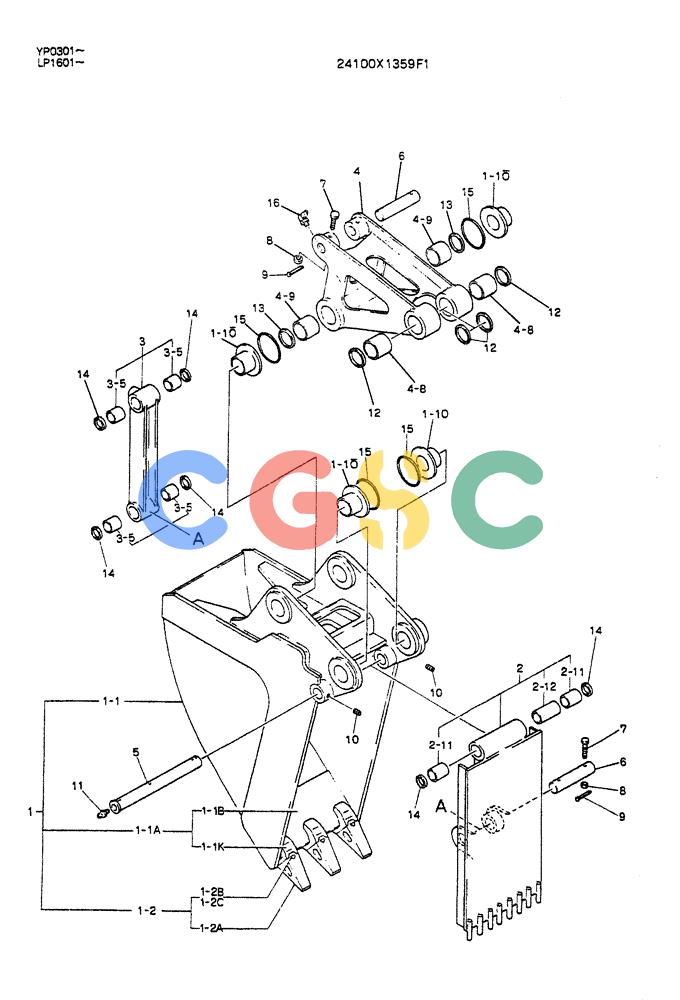

| . . | 24100X1359F1 | [1] | BUCKET ASSY,EJECTOR | |
| 1. | 24100N3011F1 | [1] | BUCKET ASSY | |
| 1-1. | 2412J685F1 | [1] | BUCKET,HOE | |
| 1-1A. | 2412J685 | [1] | BUCKET | |
| 1-1B. | 2412T819 | [1] | EDGE, CUTTING | |
| 1-1K. | 241ZN214 | [3] | ADAPTER | |
| 1-16. | 2405T869 | [4] | BUSHING | KOB |
| 1-2. | B12P0015F1 | [3] | TOOTH | KOB |
| 1-2A. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 1-2B. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 1-2C. | B12P0015E3 | [1] | LOCK PIN | KOB Superseded by part number: B12P0015E3MK |
| 2. | 2412J640F1 | [1] | EJECTOR | |
| 2-11. | 2405T627 | [2] | BUSHING | |
| 2-12. | 4018T324 | [1] | SPACER | |
| 3. | 2406N420F1 | [1] | LINK, EJECTOR | |
| 3-5. | 2405T628 | [4] | BUSHING | |
| 4. | 2406J160F1 | [1] | LINK,BUCKET | |
| 4-8. | 2405T824 | [2] | BUSHING | KOBID 60 x OD 75 x 69mm Long |
| 4-9. | 2405T825 | [2] | BUSHING | KOBID 65 x OD 80 x 60mm Long |
| 5. | 2419T3635 | [1] | PIN | |
| 6. | 2419T3636 | [2] | PIN | |
| 7. | 2420T4349 | [4] | CAPSCREW | |
| 8. | ZN21C12015 | [4] | NUT | |
| 9. | ZP15D03025 | [4] | COTTER PIN | KOBSPLIT Superseded by part number: ZP15D03035 |
| 10. | ZS83C12018 | [2] | SETSCREW | |
| 11. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 12. | 2445R138D3 | [4] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 13. | 2445R220D2 | [2] | SEAL,65mm ID x 80mm OD x 5mm Thk | KOBDust -- ID 65 x OD 80 x Th 5mm Superseded by part number: 84499663 |
| 14. | 2445R138D5 | [6] | SEAL,40mm ID x 50mm OD x 4mm Thk | KOBDust -- ID 40 x OD 50 x Th 4mm |
| 15. | 2445Z869 | [4] | O-RING,9mm Thk x 115mm ID | KOBID 115 ± 0.40 x OD 133mm |
| 16. | ZG91V02000 | [1] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
