神钢零件查询(K905ALC) - EXCAVATOR ASN YP0301 (1/86-12/03) (09-001[01]) - BOOM ASSY, 4.6M Kobelco

作者：广数供应链运营团队

浏览数：

时间：2025-01-24 09:26:12

工程机械零件图册查询

Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

Pos.	Part No	Qty	Parts name	Comments

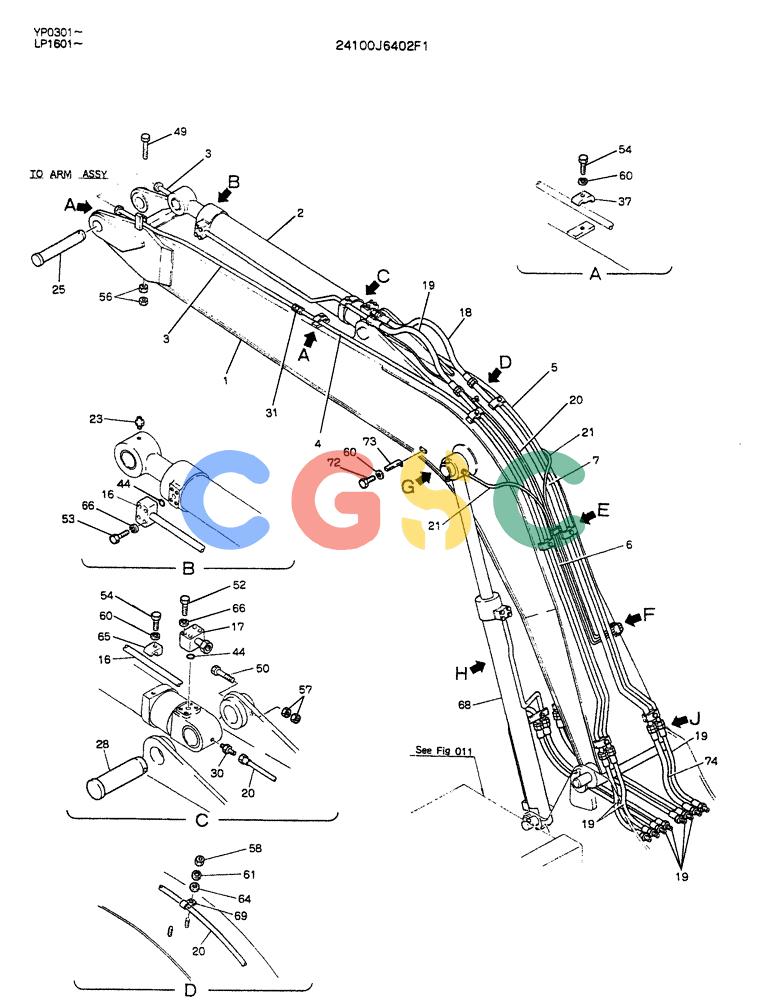

. .	24100J6402F1	[1]	BOOM ASSY,4.6 M(15 FT-1 IN)(FOR SWEDEN)
1.	2411J2747F1	[1]	BOOM	KOB
1-33.	2405T846	[2]	BUSHING	KOB
2.	2438U929F2	[1]	HYDRAULIC CYLINDER	KOBCYLINDER
3.	2418T12674	[2]	TUBE	KOB
4.	2418P12093D2	[1]	TUBE	TUBE
5.	2418P12093D1	[1]	TUBE	KOB
6.	2418T17313	[1]	TUBE	TUBE
7.	2418T17312	[1]	TUBE	KOB
8.	2418P11965D1	[1]	TUBE	KOB
9.	2418P11965D2	[1]	TUBE	KOB
10.	2418T17618	[1]	TUBE
11.	2418T17619	[1]	TUBE
12.	2418T17302	[1]	TUBE
13.	2418T17300	[1]	TUBE
14.	2418T17303	[1]	TUBE
15.	2418T17299	[1]	TUBE
16.	2418P10041	[1]	RIGID TUBE	KOB
17.	2418T12263	[1]	RIGID TUBE	KOB
18.	ZX28N12080	[1]	HOSE ASSY.	KOB
19.	ZX28N10080	[8]	FLEXIBLE HOSE	KOBHOSE Superseded by part number: 2444R1169D2
20.	2420R349D276	[1]	HYDRAULIC HOSE	KOBHOSE Superseded by part number: HX21E04280DX
21.	2420R349D7	[2]	HOSE	KOBHOSE Superseded by part number: 2420R349D200
22.	ZX28N08080	[4]	FLEXIBLE HOSE	HITHOSE
23.	ZG91S02000	[3]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB1/8" PT -- Straight
24.	ZG91U02000	[5]	LUBE NIPPLE	KOB90° x 1/8" PT
25.	2419P1693	[1]	PIN	KOB Superseded by part number: 2419P1654, 2419P4117
26.	2419P1699D1	[1]	PIN	KOB
27.	2419T4636	[1]	PIN	KOBPIN Superseded by part number: 2419T6431
28.	2419P1719D1	[1]	PIN	KOB Superseded by part number: 2419P3395D1
29.	2419P1694D1	[2]	PIN	KOB Superseded by part number: 2419P4035D1, 2419P1685D1
30.	ZH22Z04000	[6]	HYD CONNECTOR	KOB1/4"PTx1/4"PFx37mm Long
31.	ZA23B22000	[2]	HYD CONNECTOR	KOBM30x1.50x38mm Long
32.	ZA23F15006	[4]	HYD CONNECTOR	KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied)
33.	ZA33F22012	[2]	ELBOW	KOBCONNECTOR
34.	B16T0442D10	[2]	SHIM,140mm OD x 77mm ID x 1.2mm Thk	KOBID 77 x OD 140 x Th 1.2mm
35.	B16T0442D11	[2]	SHIM,140mm OD x 77mm ID x 1.6mm Thk	KOBID 77 x OD 140 x Th 1.6mm
36.	B16T0442D12	[2]	SHIM,140mm OD x 77mm ID x 2.3mm Thk	KOBID 77 x OD 140 x Th 2.3mm
37.	ZC26X22011	[4]	CLAMP	KOBSingle Line -- 38x29x65mm Long
38.	2432T2244	[3]	CLAMP	KOBDouble -- 102x32x12mm (Ø23xØ23mm)
39.	2432T2242	[3]	CLAMP	KOBDouble -- 106x38x12mm (Ø23xØ29mm)
40.	2416T3655	[2]	CLAMP	KOB
41.	2432T2340	[2]	CLAMP	KOB
42.	2416P8664	[1]	SUPPORT	KOBSUPPORT
43.	2416P8663	[1]	FLANGE	KOBSUPP0RT
44.	ZD12P02600	[4]	O-RING	KOBID 25.70 ± 0.26 x OD 32mm
45.	ZD12P01400	[4]	O-RING	KOBID 13.80 ± 0.19 x OD 18mm
46.	ZD12P02400	[2]	O-RING	KOBID 23.70 ± 0.24 x OD 30mm
47.	2445R138D6	[2]	SEAL,70mm ID x 85.3mm OD x 4mm Thk	KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm
48.	2418T12675D1	[2]	COLLAR CLAMP	KOB
49.	ZS13C14130	[5]	SCREW	KOBM14x2.0x130mm
50.	ZS13C12130	[1]	SCREW	KOBM12x1.75x130mm Superseded by part number: ZS18C12130
51.	ZS13C12045	[3]	SCREW	KOBM12x1.75x45mm Superseded by part number: ZS18C12045
52.	ZS23C10070	[4]	SCREW,Hex Socket Head, M10 x 70mm	KOBM10x1.50x70mm Superseded by part number: ZS28C10070
53.	ZS23C10060	[12]	SCREW,Hex Socket Head, M10 x 60mm	KOBM10x1.50x60mm
54.	ZS13C10045	[7]	SCREW	KOBM10x1.50x45mm Superseded by part number: ZS18C10045
55.	ZS13C10040	[3]	SCREW	KOBM10x1.50x40mm Superseded by part number: ZS18C10040
56.	ZN12C14011	[10]	NUT	KOBM14x2.0mm Superseded by part number: ZN18C14011
57.	ZN12C12010	[2]	NUT	KOBM12x1.75mm Superseded by part number: ZN18C12010
58.	ZN11C06005	[5]	NUT	KOBNUT M06x1.0mm Superseded by part number: ZN18C06005
59.	ZW22X12000	[5]	LOCK WASHER	KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000
60.	ZW22X10000	[15]	LOCK WASHER	KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000
61.	ZW22X06000	[5]	LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm	LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm
62.	ZS13C10050	[2]	SCREW	KOBM10x1.50x50mm Superseded by part number: ZS18C10050
63.	ZN11C10008	[2]	NUT	KOBM10x1.50mm Superseded by part number: ZN18C10008
64.	ZW11X06000	[5]	WASHER	KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450
65.	2432T1333	[1]	CLAMP	KOBSingle Block -- 50x30x25mm Superseded by part number: YW43H01049P1
66.	ZW22K10000	[16]	LOCK WASHER	KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm
67.	2438U967F2	[1]	CYLINDER (R.H)
68.	2438U966F2	[1]	CYLINDER (L.H)
69.	ZC45X11009	[1]	CLIP	KOBClamp, Single Line -- ID 11x35.5mm Long Superseded by part number: ZC46X11009
70.	2418T12645	[1]	PLATE	KOB125 x 420 x Th 9.0mm
71.	ZS13C12030	[2]	CAPSCREW	KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030
72.	ZS13C10018	[1]	SCREW	KOBM10x1.50x18mm
73.	2416T13056	[1]	BRACKET	KOB
74.	2444R870D2	[1]	FLEXIBLE HOSE	KOB
