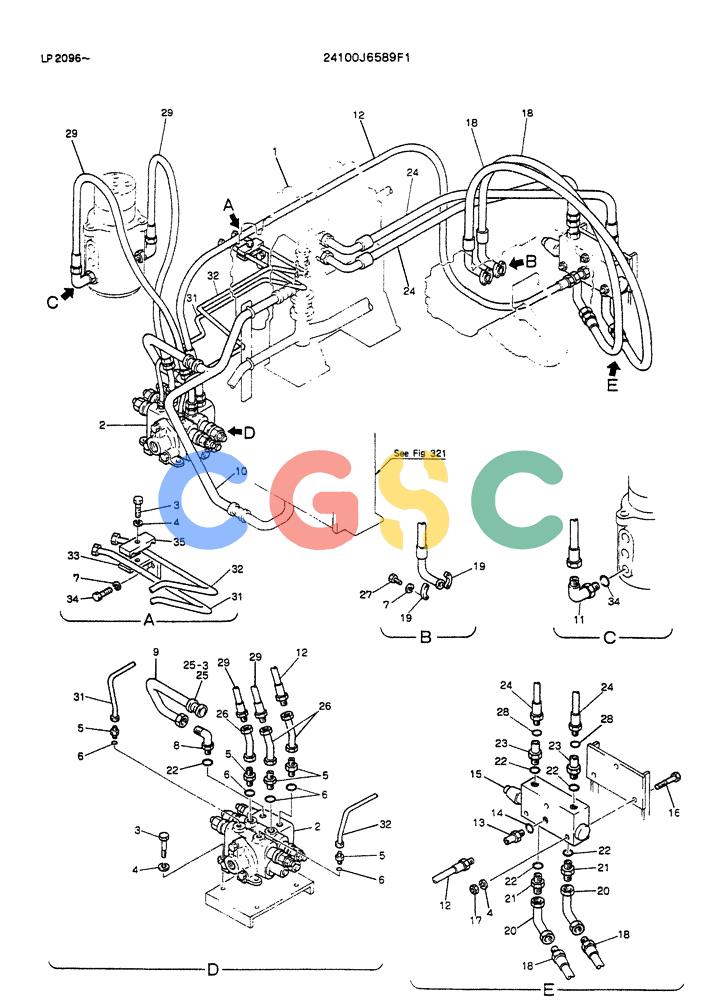

| . . | 24100J6589F1 | [1] | HYDR LINES,UPP(DOZER & EXTRA)(FOR SWISS) | |
| 1. | 24100J6239F11 | [1] | HVDR LINES,UPP,SEE(04-001) | |
| 2. | 2436U1236F1 | [1] | VALVE, CONTROL | VALVE, CONTROL |
| 3. | ZS13C12040 | [4] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040 |
| 4. | ZW22X12000 | [7] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 5. | 2444Z2236 | [5] | HYD CONNECTOR | KOB |
| 6. | ZD12P02240 | [5] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 7. | ZW22X10000 | [10] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 8. | 2444Z2114 | [1] | ELBOW | |
| 9. | 2418T17896 | [1] | TUBE | |
| 10. | 2418P12161 | [1] | TUBE | |
| 11. | ZA33F15008 | [2] | ELBOW | KOB |
| 12. | ZX28N08250 | [1] | FLEXIBLE HOSE | HIT |
| 13. | ZA23H15006 | [1] | HYD CONNECTOR | KOB |
| 14. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 15. | 2436U817F7 | [1] | CONTROL VALVE | KOBVALVE,FLOW-DIVIDED |
| 16. | ZS13C12110 | [3] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 17. | ZN12C12010 | [3] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 18. | 2444Z2287D3 | [2] | HOSE | |
| 19. | ZE13X12000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 20. | 2418T17641 | [2] | TUBE | |
| 21. | ZA23F28016 | [2] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| 22. | ZD12P02900 | [5] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 23. | ZA23H28016 | [2] | HYD CONNECTOR | KOB |
| 24. | 2444R945D3 | [2] | FLEXIBLE HOSE | KOBHOSE |
| 25. | R44P0089D11 | [1] | COUPLING | KOB Superseded by part number: ZG15F03200 |
| 25-3. | R44P0089D11S3 | [2] | GASKET | KOB |
| 26. | 2418T17471 | [3] | TUBE | |
| 27. | ZS13C10035 | [8] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 28. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 29. | 2444R949D1 | [2] | HOSE | |
| 30. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 31. | 2418P8308 | [1] | TUBE | |
| 32. | 2418P8307 | [1] | TUBE | |
| 33. | 2416T13161 | [1] | SUPPORT | |
| 34. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 35. | 2432T2333 | [1] | CLAMP | |
