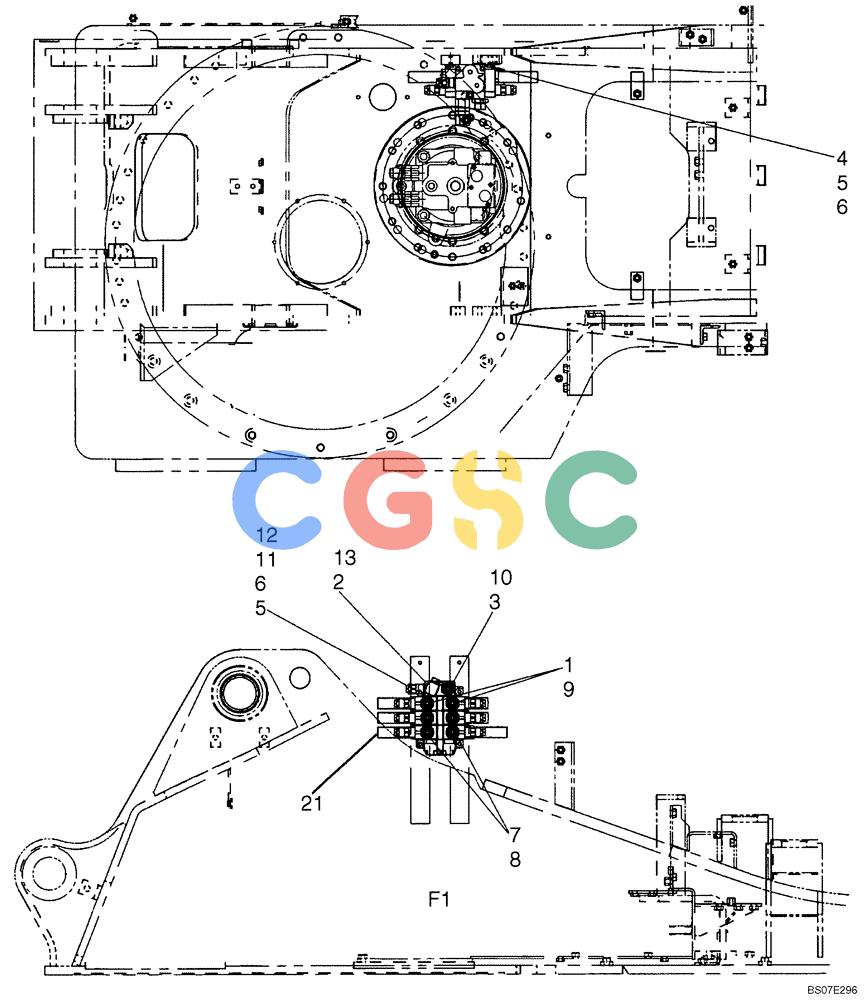

| . . | YM64HU0006F1 | [1] | Valve Installation Standard, F1 | |
| . . | YM64HU0006F2 | [1] | Valve Installation Auxiliary - Customer Connect, F2 | |
| . . | YM64HU0006F3 | [1] | Valve Installation Rotation or Extra, F3 | |
| . . | YM64HU0006F4 | [1] | Valve Installation Rotation or Extra, F4 | |
| 1. | YM64HU1003P1 | [4] | HYD CONNECTOR | KOBConnector (Included in F1, F2, F3 & F4) |
| 2. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800), (Included in F1, F2, F3 & F4) |
| . . | 237-6008 | [1] | O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro | CAS(Part of ZH22X08000), SAE No. 8-1, Not Shown Superseded by part number: 128825 |
| 3. | ZG23F10008 | [1] | HYD CONNECTOR | KOB1-14UNS x 1/2" PF x 43.5mm (5/8x1/2) (Incls. O-Ring 237-6008), (Included in F1, F2, F3 & F4) |
| 4. | ZS18C08040 | [3] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm, (Included in F1, F2, F3 & F4) |
| 5. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, (Included in F1, F2, F3 & F4) Superseded by part number: 83990583 |
| 6. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm, (Included in F1, F2, F3 & F4) |
| 7. | YM64HU1004P1 | [2] | HYD CONNECTOR | KOBConnector, (Incls. O-Ring ZD12P01800), (Included in F1, F2, F3 & F4) |
| . . | ZD12P01800 | [1] | O-RING | KOB(Part of YM64HU1004P1), ID 17.8mm x OD 20.2mm, Not Shown |
| 10. | ZD12A01600 | [1] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm, (Included in F1, F2, F3 & F4) |
| 11. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm, (Included in F1, F2, F3 & F4) |
| 12. | YM64HU1005D1 | [1] | BOLT | KOBThreaded Rod, M08x1.25x60mm Long, (Included in F1, F2, F3 & F4) |
| 13. | 2444Z3713 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800), (Included in F1, F2, F3 & F4) |
| 14. | ZE72X08000 | [1] | PLUG | KOB1/2" PF, (Incls. O-Ring ZD12P01800), (Included in F2: QTY- 4 & F3: QTY- 4) |
| 15. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm, (Included in F2, F3 & F4) |
| 16. | 2444T2958 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800), (Included in F3 & F4) |
| 17. | ZA33F22008 | [1] | 90 ELBOW,M30 x 1.5 ORB x 1/2" NPT | KOB90° -- 1/2" PF - M30x1.50x34mm Long (Incls. O-Ring ZD12P02400), (Included in F3: QTY- 1 & F4: QTY- 2) |
| 18. | ZA24F22008 | [1] | HYD CONNECTOR | KOB1/2" PF - M30x1.50x84mm Long, (Included in F3 & F4) |
| 19. | ZA23F22008 | [1] | HYD CONNECTOR | KOB1/2" PT - M30x1.50 x 43mm Long, (Included in F4 only) |
| 20. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100), (Included in F2: QTY- 4 & F3: QTY- 2) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of ZE72X04000), ID 10.8mm x OD 13.2mm, Not Shown |
| 21. | YY30V00048F1 | [1] | CONTROL VALVE | KOBDozer - Standard (Included in F1 only) |
| 22. | YM30VU0008F1 | [1] | CONTROL VALVE | KOBDozer - Rotation (Included in F2, F3 & F4) |
