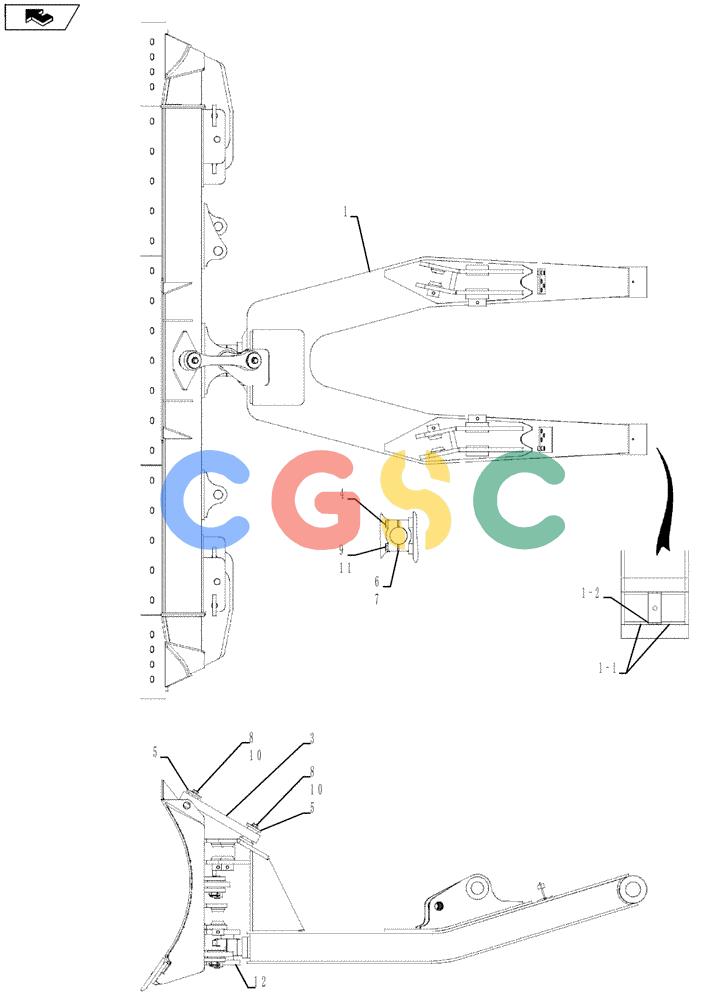

| 1. | YM51BU0002F1 | [1] | LIFT ARM | KOBDozer Arm, Incls. Refs. 1-1 & 1-2 |
| 1-1. | YM51BU1054P1 | [4] | BUSHING | KOBBushing (Part of YM51BU0002F1) |
| 1-2. | YM51BU1055P1 | [2] | PIPE | KOBPipe (Part of YM51BU0002F1) |
| 2. | YM51BU0011F1 | [1] | DOZER BLADE | KOBSee Figure 03-22-02 |
| 3. | YY51B01043F1 | [1] | LINK | KOB(Incls. Bushing & Retainer) |
| 3. | 2405R21D3 | [2] | BUSHING | KOB(Part of YY51B01043F1), Not Shown |
| 3. | ZR26X06800 | [4] | RING | KOBRetainer (Part of YY51B01043F1), Not Shown |
| 4. | YY51B01038P1 | [1] | CAP | KOBAttaches to Bracket |
| 5. | YY51B01050P1 | [2] | RETAINER | KOB |
| 6. | YY51B01052P1 | [2] | SHIM | KOB(4.5) |
| 7. | YY51B01053P1 | [12] | SHIM | KOB(0.8) |
| 8. | ZS18C16045 | [2] | SCREW,Hex, M16 x 45mm | KOB |
| 9. | YY51B01054P1 | [4] | SCREW | KOB7/8"-9UNC x 140mm Long |
| 10. | ZW16H16000 | [2] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 11. | ZW16H22000 | [4] | WASHER | KOBID 23 x OD 44 x Th 6.0mm |
| 12. | YY51BU1096P1 | [1] | BRACKET | KOBTrunion Ball Assembly With Mounting Bracket |
| 12. | YY51BU1032P1 | [1] | BRACKET | KOBMounting, (Welded to Blade) |
