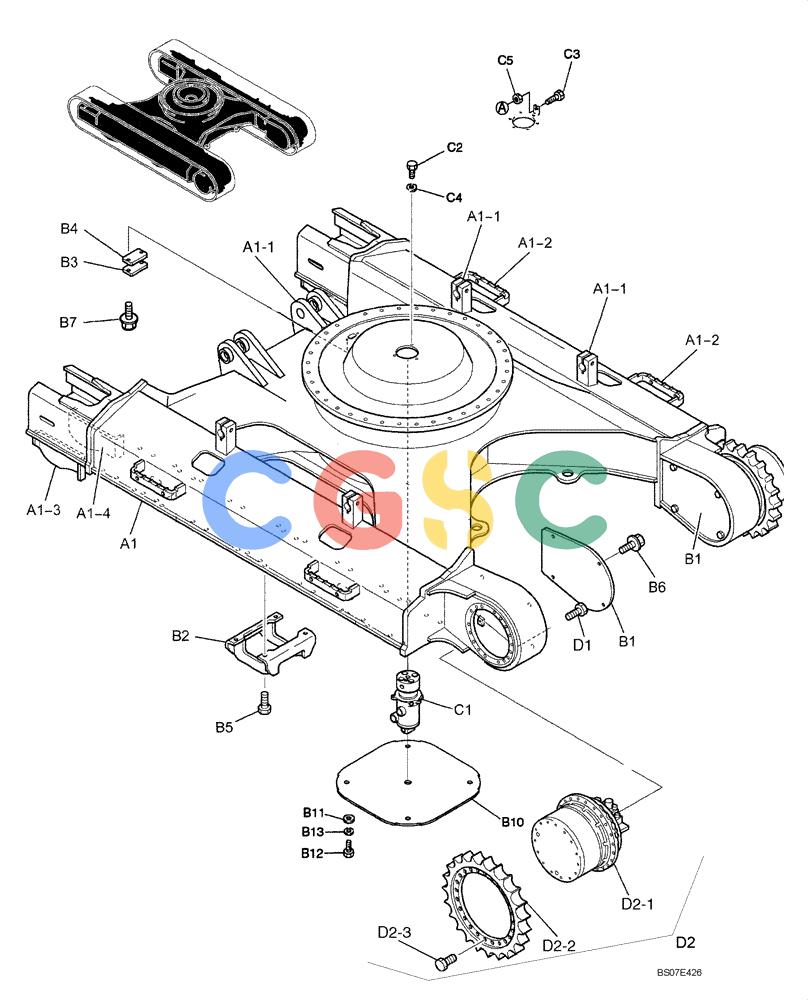

| A1. | YM02FU0015P1 | [1] | Lower, frame | |
| A1-1. | YM07FU1084P1 | [4] | Support | |
| A1-2. | YN41C00062P1 | [4] | Step | |
| A1-3. | LQ07FU1001P1 | [2] | GUIDE | KOB |
| A1-4. | LQ07FU1002P1 | [2] | GUIDE | KOB |
| B1. | YM01FU1007P1 | [2] | Cover | |
| B2. | YM63DU0001P1 | [2] | GUIDE | KOBGuide, Track |
| B3. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| B4. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| B5. | LQ01F01035P1 | [8] | BOLT,Flng, M18 x 1.5 x 50mm | KOBM18x1.5x50mm long |
| B6. | 2420T6786 | [8] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| B7. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| B10. | 2414P6258 | [1] | COVER | KOBSize 624x624xTh 0.6mm Corner radius 192mm |
| B11. | ZW11X18000 | [4] | WASHER | KOBID 18 x OD 34 x Th 3.2mm |
| B12. | ZS13C18050 | [4] | SCREW | KOBM18x2.0x50mm |
| B13. | ZW22K18000 | [4] | LOCK WASHER | KOBID 18 x OD 26 x Th 3.5mm |
| C1. | 24100J20523F2 | [1] | HYDRAULIC SWIVEL | KOBSee Figure 08-39 Superseded by part number: 24100J20523F3 |
| C2. | ZS18C12025 | [3] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| C3. | ZS13F20110 | [1] | SCREW | KOBM20x1.50x110mm |
| C4. | ZW16X12000 | [3] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| C5. | ZN13F20016 | [1] | NUT | KOBM20x1.50mm |
| D1. | 2420P1613D3 | [36] | BOLT,Hex, M24 x 2 x 60mm | KOBM24x2.0x60mm |
| D2-1. | YM15VU0002F1 | [1] | HYDRAULIC MOTOR | KOBMotor Assembly, See Figure 08-13 |
| D2-2. | YM51DU1003P1 | [1] | SPROCKET,21 Teeth, 22 Hole | KOBGear, Ring |
| D2-3. | ZS13C20050 | [22] | SCREW | KOBM20x2.50x50mm |
