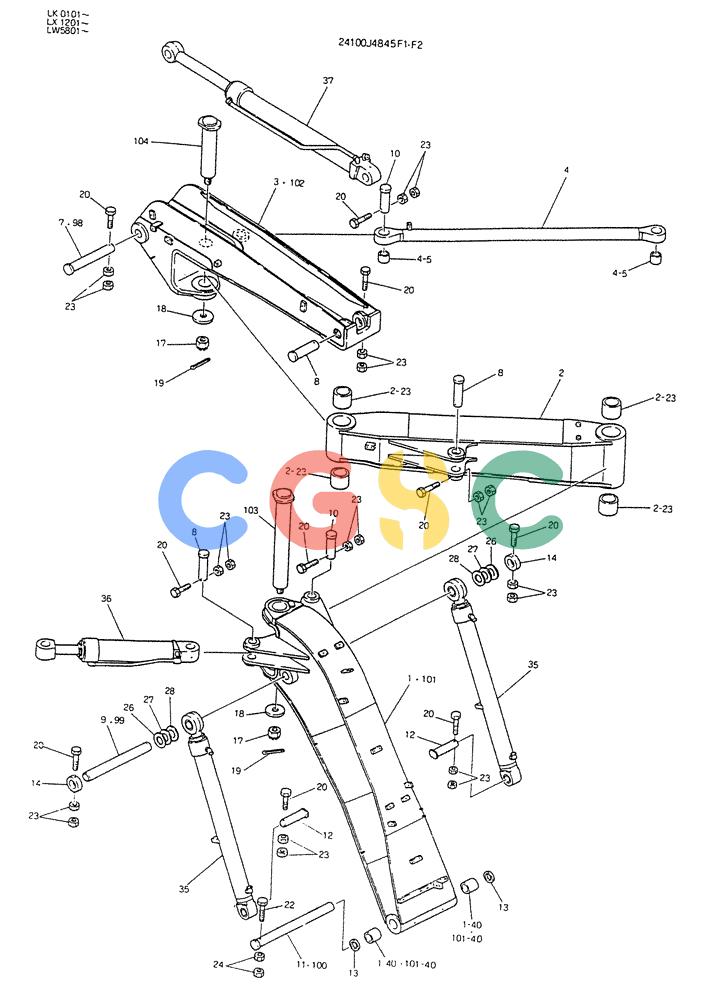

神钢零件查询(K904D) - EXCAVATOR ASN LW5801 (1/84-12/03) (13-001[01]) - BOOM ASSY P/N 24100J4845F1,F2 Kobelco

作者：广数供应链运营团队

浏览数：

时间：2025-01-23 11:10:59

工程机械零件图册查询

Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

Pos.	Part No	Qty	Parts name	Comments
. .	24100J4845F1	[1]	BOOM ASSY, Serial Range: LK0101-LK0112
. .	24100J4845F2	[1]	BOOM ASSY, Start Serial: LX1237
1.	2411J170101F1	[1]	BOOM, Serial Range: LX1201-LX1236
1-40.	2405T846	[2]	BUSHING	KOB, Serial Range: LK0102-LK0113
2.	2411J1702F1	[1]	BOOM	BOOM
2-23.	2405T943	[4]	BUSHING	KOB
3.	2411J1669	[1]	BOOM, Serial Range: LK0101-LK0112
4.	2420P1501F1	[1]	TIE-ROD
4-5.	2405T944	[2]	BUSHING	KOB
7.	2419P1350	[1]	PIN, Serial Range: LW5801-LW6106	PIN, Serial Range: LW5801-LW6106
8.	2419P1557D1	[3]	PIN	KOB Superseded by part number: 2419P3395D1
9.	2419T2864	[1]	PIN, Serial Range: LW5801-LW6106	PIN, Serial Range: LW5801-LW6106
10.	2419P1557D2	[2]	PIN	PIN
11.	2419P1355	[1]	PIN, Serial Range: LW5801-LW6106	PIN, Serial Range: LW5801-LW6106
12.	2419P1558	[2]	PIN	PIN
13.	2445R138D6	[2]	SEAL,70mm ID x 85.3mm OD x 4mm Thk	KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm
14.	2416T7461	[2]	COLLAR	COLLAR
17.	ZN2042046	[2]	NUT
18.	2418T9024	[2]	SPACER	SPACER
19.	ZP15D08071	[2]	COTTER PIN	KOBPin, Cotter Superseded by part number: ZP15D08100
20.	ZS13C12120	[10]	SCREW	KOBM12x1.75x120mm Superseded by part number: ZS18C12120
22.	ZS13C14130	[1]	SCREW	KOBM14x2.0x130mm
23.	ZN11C12010	[20]	NUT	KOBM12x1.75mm Superseded by part number: ZN18C12010
24.	ZN11C14011	[2]	NUT	NUT
26.	B16T0442D1	[2]	SHIM,130mm OD x 72mm ID x 1.2mm Thk	KOBID 72 x OD 130 x Th 1.2mm
27.	B16T0442D2	[2]	SHIM,130mm OD x 72mm ID x 1.6mm Thk	KOBID 72 x OD 130 x Th 1.6mm
28.	B16T0442D17	[2]	SHIM,130mm OD x 72mm ID x 3.2mm Thk	KOBID 72 x OD 130 x Th 3.2mm
35.	2438U554F2	[2]	CYLINDER	KOBBUCKET CYLINDER Superseded by part number: 2438U554F3
36.	2438U695F1	[1]	CYLINDER
37.	2438U514F3	[1]	CYLINDER	KOB
38.	2418P8486	[1]	TUBE	TUBE
39.	2418T103D3	[1]
40.	2418P8485D1	[2]	TUBE	TUBE
41.	2418P8485D2	[2]	TUBE	TUBE
44.	2418P6344	[2]	TUBE	KOB
45.	2418P7092D1	[1]	TUBE	TUBE
46.	2418P7092D2	[1]	TUBE	TUBE
47.	2418P8319D2	[1]	TUBE	TUBE
48.	2418P8319D1	[1]	TUBE
49.	2418P8316D2	[1]	TUBE	KOB
50.	2418P8316D1	[1]	TUBE
51.	2418P8317D1	[1]	TUBE
52.	2418P8317D2	[1]	TUBE
53.	2418P8318D2	[1]	TUBE
54.	2418P8318D1	[1]	TUBE
55.	2444R698D4	[8]	HOSE	KOB
56.	2444R698D2	[6]	HOSE	KOB
57.	2444R698D1	[6]	HOSE	KOB
58.	2420R349D22	[1]	HOSE ASSY, Serial Range: LK0101-LK0112	HOSE ASSY, Serial Range: LK0101-LK0112
58.	2420R349D170	[1]	FLEXIBLE HOSE	KOB1700mm Long (66-59/64 in), Start Serial: LK0113 Superseded by part number: HX21E04170DX
59.	2420R349D21	[2]	HOSE	HOSE
60.	2420R349D7	[4]	HOSE	KOBHOSE Superseded by part number: 2420R349D200
61.	2444Z1886D1	[4]	CONNECTOR	CONNECTOR
62.	ZF23E22012	[4]	HYD CONNECTOR	KOB3/4"PTxM30x1.50x45mm Long
63.	ZH22Z04000	[8]	HYD CONNECTOR	KOB1/4"PTx1/4"PFx37mm Long
64.	ZH32Z04000	[4]	ELBOW	KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100)
65.	ZH42Z04000	[2]	ELBOW	KOB45° -- 1/4"PFx1/4"PTx40mm Long (male both ends)
66.	ZG91S02000	[16]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB1/8" PT -- Straight
67.	ZC26X22011	[10]	CLAMP	KOBSingle Line -- 38x29x65mm Long
68.	ZC36X22011	[12]	CLAMP	KOBDouble Line -- 75x38x13mm (Ø24mm)
69.	2432T1472	[2]	CLAMP
71.	2416T3655	[2]	CLAMP	KOB
72.	2432T1476	[1]	CLAMP	KOB
73.	ZC45X11009	[1]	CLIP	KOBClamp, Single Line -- ID 11x35.5mm Long Superseded by part number: ZC46X11009
74.	2416T7456	[2]	BRACKET
75.	ZS13C10045	[20]	SCREW	KOBM10x1.50x45mm Superseded by part number: ZS18C10045
76.	ZS13C10030	[2]	SCREW	KOBM10x1.50x30mm Superseded by part number: ZS18C10030
77.	ZS13C12030	[4]	CAPSCREW	KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030
79.	ZS13C12065	[2]	SCREW	KOB Superseded by part number: ZS18C12065
80.	ZS13C08012	[4]	SCREW	KOBM08x1.25x12mm Superseded by part number: ZS18C08012
81.	ZN11C12010	[2]	NUT	KOBM12x1.75mm Superseded by part number: ZN18C12010
82.	ZN11C08007	[1]	NUT	KOBM08x1.25mm Superseded by part number: ZN16C08007
83.	ZN11C06005	[2]	NUT	KOBNUT M06x1.0mm Superseded by part number: ZN18C06005
84.	ZW22X12000	[6]	LOCK WASHER	KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000
85.	ZW22X10000	[22]	LOCK WASHER	KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000
86.	ZW22X08000	[5]	LOCK WASHER	KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583
87.	ZW22X06000	[2]	LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm	LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm
88.	2444R698D8	[2]	HOSE	HOSE
89.	2420R349D290	[1]	HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm	KOB
90.	2432Z290	[3]	CLIP	KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3
91.	2432Z290D5	[2]	CLIP	KOBWire Ties -- 365mm Long Superseded by part number: PY01P01043D8
92.	ZH32Z04002	[4]	ELBOW	KOB90° -- 1/4" PF - 1/8" PT
93.	2479Z882	[1]	HARNESS
94.	2432Z270	[6]	CLAMP	KOB
95.	ZN16C06005	[6]	NUT	KOBM06x1.0mm Superseded by part number: ZN18C06005
96.	ZW26X06000	[6]	LOCK WASHER	KOBID 06 x OD 07 x Th 1.5mm
97.	2420R349D186	[1]	HOSE	KOB Superseded by part number: HX21E04186DX
98.	2419P1550	[1]	PIN	KOB, Start Serial: LX1201
99.	2419T3524	[1]	PIN	KOB, Start Serial: LX1201
100.	2419P1546	[1]	PIN, Start Serial: LX1201	PIN, Start Serial: LX1201
101.	2411J1737F1	[1]	BOOM, Start Serial: LK0113
101-40.	2405T846	[2]	BUSHING	KOB, Start Serial: LK0113
102.	2411J1736	[1]	BOOM, Start Serial: LK0113
103.	2419T3623	[1]	PIN	KOB, Start Serial: `
104.	2419T3624	[1]	PIN	KOB
