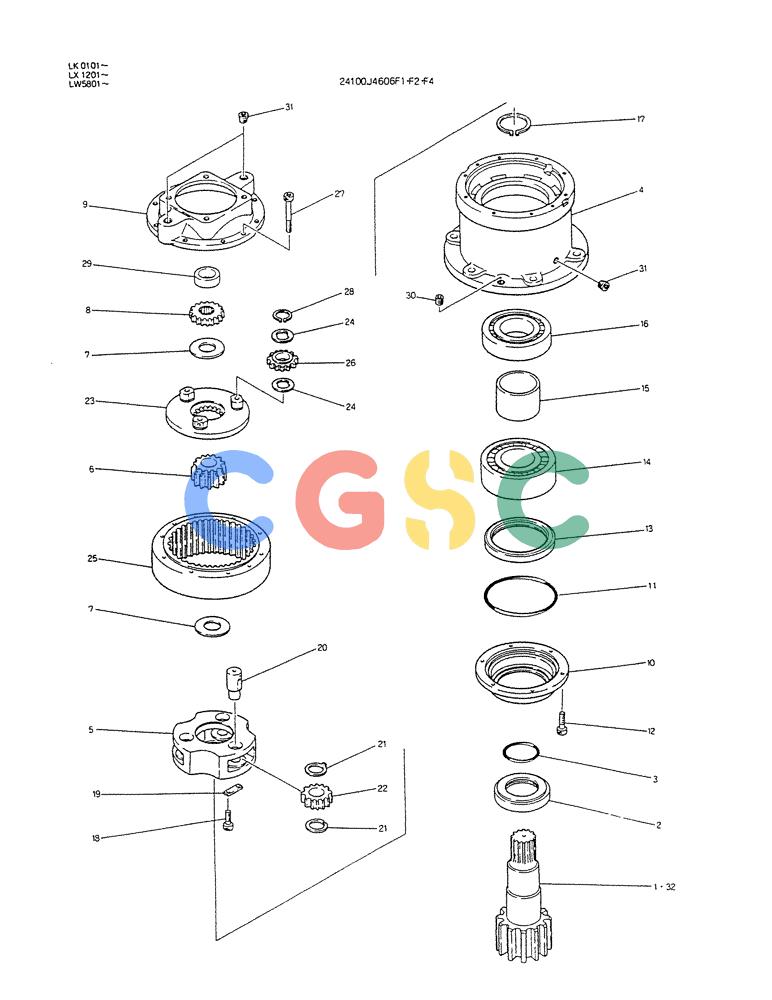

| . . | 24100J4606F1 | [1] | REDUCTION UNIT | REDUCTION UNIT |
| . . | 24100J4606F2 | [1] | REDUCTION UNIT | |
| . . | 24100J4606F4 | [1] | REDUCTION UNIT | |
| 1. | 2401N305 | [1] | FINGER ASSY. | KOB Superseded by part number: 2401N553 |
| 2. | 2418T9363 | [1] | SLEEVE | KOB |
| 3. | ZD11G07000 | [1] | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | KOBID 69.40 ± 0.61 x OD 75mm |
| 4. | 2414J994 | [1] | SPIDER | |
| 5. | 2413N349 | [1] | AIR COMPRESSOR | AIR COMPRESSOR |
| 6. | 2401P560 | [1] | SUN GEAR | KOB Superseded by part number: 2401P902 |
| 7. | 2418T7778 | [2] | SPACER | KOB |
| 8. | 2401P577 | [1] | SUN GEAR | KOB |
| 9. | 2414J995 | [1] | COVER | |
| 10. | 2418P8793 | [1] | RETAINER | KOB |
| 11. | 45Z91D72 | [1] | O-RING | HIT |
| 12. | ZS23C08025 | [6] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 13. | ZD21T11000 | [1] | SPARE PART | WIN Superseded by part number: 2418R7D3 |
| 14. | 25Z539D7 | [1] | BEARING | KOB |
| 15. | 2418T5626 | [1] | SPACER | SPACER |
| 16. | 2425Z435D2 | [1] | BEARING | KOB |
| 17. | ZR16X06500 | [1] | SNAP RING | KOBRetaining -- ID 65 x OD 81 x Th 2.5mm |
| 18. | ZS23C06014 | [6] | CAPSCREW M06x1.0x14mm | CAPSCREW M06x1.0x14mm |
| 19. | 2418T9191 | [3] | PLATE | KOB |
| 20. | 2410P678 | [3] | SHAFT | KOB |
| 21. | 2418T9190 | [6] | WASHER | KOB |
| 22. | 2401P561 | [3] | PINION | KOB Superseded by part number: 2401P827 |
| 23. | 2413P288F1 | [1] | SPIDER | KOB Superseded by part number: 24013P6F1 |
| 24. | 2418T7862 | [6] | WASHER | KOBTHRUST |
| 25. | 2401N418 | [1] | GEAR | KOB |
| 26. | 2401P513 | [3] | PINION | KOB Superseded by part number: 2401P837 |
| 27. | ZS23C10100 | [10] | SCREW,Hex Socket Head, M10 x 100mm | KOBM10x1.50x100mm Superseded by part number: ZS28C10100 |
| 28. | 2418R2D21 | [3] | SNAP RING | KOB |
| 29. | 2418T5628 | [1] | SPACER | KOB |
| 30. | ZS83C16018 | [2] | SCREW | KOBM16x2.0x18mm |
| 31. | ZE82T08000 | [3] | PLUG | KOB1/2" PT |
| 32. | 2401N535 | [1] | SHAFT, PINION | |
