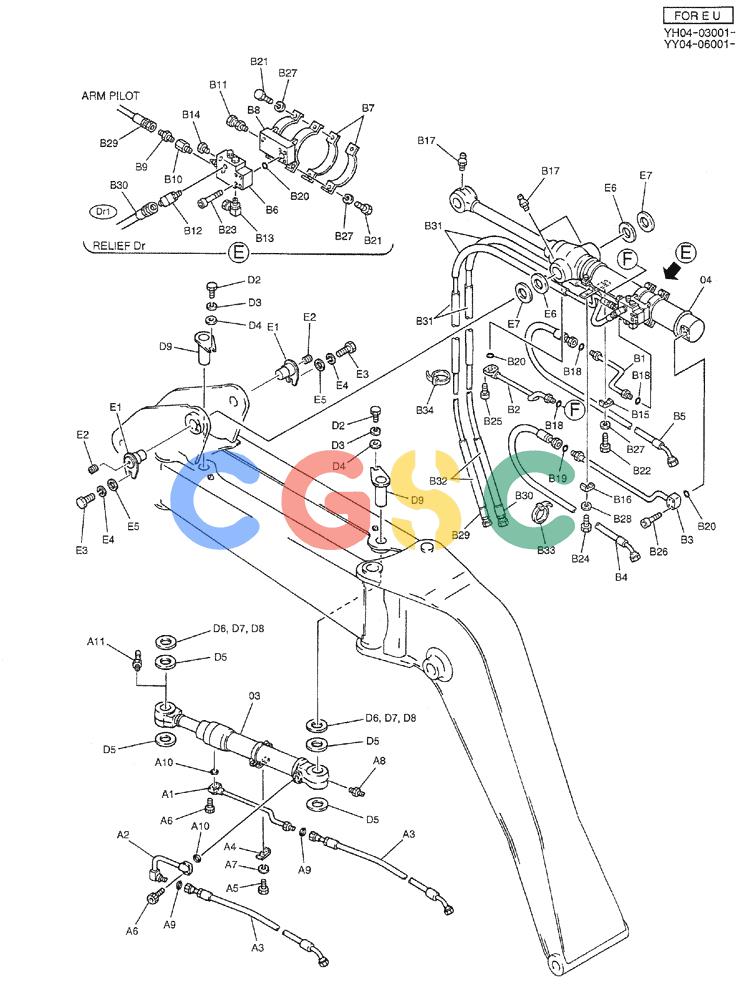

神钢零件查询(OFFSET BOOM) - EXCAVATOR SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES - ASN YY04 & YH04 (1/98-12/06) (02-012[02]) - CYLINDER INSTAL (BOOM & ARM SAFETY) Kobelco

作者：广数供应链运营团队
浏览数：
时间：2025-01-23 11:02:29
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos.Part NoQtyParts nameComments
01. YY01V00001F1 [1]  CYLINDER ASSY. KOB Superseded by part number: YY01V00002F2
02. YY01V00002F1 [1]  CYLINDER ASSY. KOB Superseded by part number: YY01V00002F2
03. YX01V00008F1 [1]  CYLINDER KOBASSY, OFFSET Superseded by part number: YX01V00008F2
04. YY01V00009F1 [1]  CYLINDER KOB Superseded by part number: YY01V00009F2
. . YX42H00007F1 [1]  HYD, CYLINDER
A1. YX42H01051P1 [1]  TUBE KOB
A2. YX42H01052P1 [1]  TUBE KOB
A3. YX42H01061D1 [2]  HOSE KOB
A4. ZC26X22011 [1]  CLAMP KOBSingle Line -- 38x29x65mm Long
A5. ZS18C10050 [1]  SCREW,Hex, M10 x 50mm KOBM10x1.50x50mm
A6. ZS28C10030 [8]  SCREW,Hex Socket Head, M10 x 30mm KOBM10x1.50x30mm
A7. ZW26X10000 [1]  LOCK WASHER KOBID 10 x OD 18 x Th 2.5mm
A8. ZH22Z04000 [1]  HYD CONNECTOR KOB1/4"PTx1/4"PFx37mm Long
A9. ZD12A01600 [2]  O-RING KOBID 15.60 ± 0.12 x OD 19.16mm
A10. ZD12P02600 [2]  O-RING KOBID 25.70 ± 0.26 x OD 32mm
A11. ZG91S02000 [1]  LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB1/8" PT -- Straight
. . YY42H00037F1 [1]  HYD, CYLINDER
B1. YY42H01160P1 [1]  TUBE KOB
B2. YY42H01161P1 [1]  TUBE KOB
B3. YY42H01162P1 [1]  TUBE KOB
B4. YX42H01062D1 [1]  HOSE KOB
B5. YX42H01063D1 [1]  HOSE KOB
B6. YM28V00001F2 [1]  VALVE KOB
B7. YX42H01074P2 [2]  BAND KOB
B8. YX42H01073P2 [1]  BAND KOBASSY
B9. ZH22X06000 [1]  HYD CONNECTOR KOB(Incls. O-Ring ZD12P01400)
B10. HH25R06006GE [1]  ELEC CONNECTOR KOB
B11. HG23H10008G1 [1]  HYD CONNECTOR KOBCONNECTOR
B12. 2444R399D9 [1]  HYD CONNECTOR KOBElbow -- (Incls. O-Ring ZD12P01400)
B13. HG33H10012G1 [1]  ELBOW KOB
B14. ZE72X08000 [1]  PLUG KOB1/2" PF, (Incls. O-Ring ZD12P01800)
B15. ZC26X22011 [1]  CLAMP KOBSingle Line -- 38x29x65mm Long
B16. ZC26X28014 [1]  CLAMP KOBSingle Line -- 75x37x38mm (Ø28mm)
B17. ZG91S02000 [3]  LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB1/8" PT -- Straight
B18. ZD12A01600 [3]  O-RING KOBID 15.60 ± 0.12 x OD 19.16mm
B19. ZD12A01800 [1]  O-RING,1.78mm Thk x 18.77mm ID, Cl 6 KOBID 18.77 ± 0.12 x OD 22.33mm
B20. ZD12P02600 [3]  O-RING KOBID 25.70 ± 0.26 x OD 32mm
B21. ZS18C10030 [4]  SCREW,Hex, M10 x 30mm KOBM10x1.50x30mm
B22. ZS18C10045 [1]  SCREW,Hex, M10 x 45mm KOBM10x1.50x45mm
B23. ZS28C10060 [4]  SCREW,Hex Socket Head, M10 x 60mm KOBM10x1.50x60mm
B24. ZS18C12055 [1]  SCREW,Hex, M12 x 55mm KOBM12x1.75x55mm
B25. ZS28C10030 [4]  SCREW,Hex Socket Head, M10 x 30mm KOBM10x1.50x30mm
B26. ZS28C10070 [4]  SCREW,Hex Socket Head, M10 x 70mm KOBM10x1.50x70mm
B27. ZW26X10000 [5]  LOCK WASHER KOBID 10 x OD 18 x Th 2.5mm
B28. ZW26X12000 [1]  LOCK WASHER KOBID 12 x OD 21 x Th 3.0mm
B29. 2420R537D520 [1]  FLEXIBLE HOSE,9.60mm ID x 5200mm L KOB
B30. YT03H01050D4 [1]  HOSE KOB
B31. 2414Z199D100 [6]  PROTECTIVE SLEEVE KOBHose -- 1000mm Long (39-3/8 in)
B32. 2414Z199D060 [2]  PROTECTIVE SLEEVE HIT Superseded by part number: 2414Z199D60
B33. YX03H01046P1 [1]  CLIP KOBWire, Tie -- 564mm Long (22-13/64 in)
B34. PY01P01043D8 [4]  CABLE TIE,102mm L KOBWire Ties -- 368mm Long
. . YY42H00089F2 [1]  HYD, CYLINDER
C1. YY42H01009P1 [1]  TUBE KOB
C2. YY42H01010P1 [1]  TUBE KOB
C3. YY42H01102P1 [2]  TUBE KOB
C4. ZX20H10074 [4]  HOSE KOB740mm Long (29-1/8 in)
C5. ZX20H10125 [1]  FLEXIBLE HOSE HIT1250mm Long (49-7/32 in)
C6. ZX23M06140 [1]  HOSE KOB
C7. ZX22M08140 [1]  HOSE KOB
C10. ZH22X06000 [1]  HYD CONNECTOR KOB(Incls. O-Ring ZD12P01400)
C11. HH25R06006GE [2]  ELEC CONNECTOR KOB
C12. ZG23F10008 [1]  HYD CONNECTOR KOB1-14UNS x 1/2" PF x 43.5mm (5/8x1/2) (Incls. O-Ring 237-6008)
C13. ZH22Z04000 [2]  HYD CONNECTOR KOB1/4"PTx1/4"PFx37mm Long
C14. 2444Z3399 [1]  HYD CONNECTOR KOB
C15. 2444Z3713 [1]  HYD CONNECTOR KOB(Incls. O-Ring ZD12P01800)
C16. 2444Z3155 [1]  90 ELBOW,PF 3/8" Fem x PF 3/8" Male KOB90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 Superseded by part number: YT42H01128P1
C17. 2444R596D2 [1]  ELBOW KOB90° -- 3/8" PF
C18. HG33H10012G1 [2]  ELBOW KOB
C19. 2444R399D9 [1]  HYD CONNECTOR KOBElbow -- (Incls. O-Ring ZD12P01400)
C20. 2444R596D3 [1]  ELBOW KOB90° -- 1/2" PF
C21. HG33H04004G1 [1]  ELBOW KOB
C22. 2444Z2359 [1]  TEE KOB3/8" PT (Incls. O-Ring ZD12P01400)
C23. 2444Z3945 [1]  TEE KOB1/2" PF x 74mm Long (Incls. O-Ring ZD12P01800)
C24. YN42H01602P1 [1]  TEE KOB
C25. HG23F04004G1 [1]  HYD CONNECTOR KOB9/16"-18UNS - 1/4"PF x 33mm Long (Incls. O-Ring ZD12P01100)
C26. ZG91S02000 [2]  LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB1/8" PT -- Straight
C27. 2432T2244 [2]  CLAMP KOBDouble -- 102x32x12mm (Ø23xØ23mm)
C28. ZS18C10045 [2]  SCREW,Hex, M10 x 45mm KOBM10x1.50x45mm
C29. ZS28C10030 [8]  SCREW,Hex Socket Head, M10 x 30mm KOBM10x1.50x30mm
C30. ZS28C10060 [8]  SCREW,Hex Socket Head, M10 x 60mm KOBM10x1.50x60mm
C31. ZW26X10000 [4]  LOCK WASHER KOBID 10 x OD 18 x Th 2.5mm
C32. ZD12A01600 [8]  O-RING KOBID 15.60 ± 0.12 x OD 19.16mm
C33. ZD12P02600 [2]  O-RING KOBID 25.70 ± 0.26 x OD 32mm
C34. PY01P01043D5 [10]  CABLE TIE,301mm L KOBWire Ties -- 292mm Long
C35. YN50S00031F1 [1]  PRESSURE SWITCH KOB
C36. 2432T1232 [1]  CLAMP KOB
C37. YY42H01411P1 [1]  PLATE KOB
C38. YY42H01324P1 [1]  PLATE KOB
C39. ZS18C05040 [2]  CAPSCREW,Hex, M5 x 40mm KOBSCREW M05x0.8x40mm
C40. ZS18C08025 [2]  SCREW,Hex, M8 x 25mm KOBM08x1.25x25mm
C41. ZS18C10060 [2]  SCREW,Hex, M10 x 60mm KOBM10x1.50x60mm
C42. ZN18C10008 [2]  NUT KOBM10x1.50mm
C43. ZW16H08000 [2]  WASHER KOBID 08 x OD 18 x Th 3.2mm
C44. ZW16H10000 [2]  WASHER KOBID 11 x OD 24 x Th 3.2mm
C45. ZW26X05000 [2]  LOCK WASHER KOBLock -- ID 05 x OD 09 x Th 1.3mm
C46. YY42H01330P1 [1]  O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro KOBID 7.65 ± 0.12 x OD 11.21mm
C47. YN28V00010F2 [1]  VALVE KOBASSY, HOLDING
C48. YN28V00009F2 [1]  VALVE KOBASSY, HOLDING
. . YX02B00003F2 [1]  CYLINDER, INSTAL
D2. ZS18C10016 [2]  SCREW,Hex, M10 x 16mm KOBM10x1.50x16mm
D3. ZW26X10000 [2]  LOCK WASHER KOBID 10 x OD 18 x Th 2.5mm
D4. 2418T18152D7 [2]  SPACER KOB
D5. YN12B01009P1 [4]  SHIM,3mm Thk KOB(3.0)
D6. B16T0442D57 [2]  SHIM,72mm ID x 130mm OD x 0.5mm Thk KOBID 72 x OD 130 x Th 0.5mm
D7. B16T0442D44 [2]  SHIM,72mm ID x 130mm OD x 0.9mm Thk KOBID 72 x OD 130 x Th 0.9mm
D8. B16T0442D1 [2]  SHIM,130mm OD x 72mm ID x 1.2mm Thk KOBID 72 x OD 130 x Th 1.2mm
D9. YY02B01028P1 [2]  PIN KOB
. . YX02B00010F1 [1]  CYLINDER, INSTAL
E1. YX02B01039P1 [2]  PIN KOB
E2. ZS83C16020 [2]  SCREW KOBSet -- M16x2.0x20mm
E3. ZS28C16030 [2]  SCREW,Hex Socket Head, M16 x 30mm KOBM16x2.0x30mm
E4. ZW26K16000 [2]  LOCK WASHER KOBID 16 x OD 24 x Th 3.5mm
E5. PW12B01242P1 [2]  WASHER KOB
E6. YX02B01018P1 [2]  SHIM KOB(2.0)
E7. B16T0442D79 [2]  SHIM,130mm OD x 82mm ID x 0.5mm Thk KOBID 82 x OD 130 x Th 0.5mm
. . YY02B00005F2 [1]  CYLINDER, INSTAL
F3. LP02B01054P1 [2]  COLLAR KOB
F4. HS18C14135G1 [2]  SCREW KOB Superseded by part number: HS18C14135G2
F5. ZS18C10020 [2]  SCREW,Hex, M10 x 20mm KOBM10x1.50x20mm
F6. 2418T21137 [2]  WASHER KOB
F7. ZW26X10000 [1]  LOCK WASHER KOBID 10 x OD 18 x Th 2.5mm
F8. ZN18C14011 [4]  NUT KOBM14x2.0mm
F9. LP02B01055P1 [2]  SHIM,3.0mm Thk KOB(3.0)
F10. LP02B01060D1 [2]  SHIM KOBID 82 x OD 110 x Th 0.5mm
F11. LP02B01060D2 [2]  SHIM KOBID 82 x OD 110 x Th 0.9mm
F12. LP02B01060D3 [2]  SHIM KOBID 82 x OD 110 x Th 1.2mm
F13. LP02B01060D4 [2]  SHIM KOBID 82 x OD 110 x Th 1.6mm
F14. B16T0442D57 [2]  SHIM,72mm ID x 130mm OD x 0.5mm Thk KOBID 72 x OD 130 x Th 0.5mm
F15. B16T0442D44 [2]  SHIM,72mm ID x 130mm OD x 0.9mm Thk KOBID 72 x OD 130 x Th 0.9mm
F16. B16T0442D1 [2]  SHIM,130mm OD x 72mm ID x 1.2mm Thk KOBID 72 x OD 130 x Th 1.2mm
F17. B16T0442D2 [2]  SHIM,130mm OD x 72mm ID x 1.6mm Thk KOBID 72 x OD 130 x Th 1.6mm
F18. B16T0442D5 [2]  SHIM,130mm OD x 72mm ID x 2.3mm Thk KOBID 72 x OD 130 x Th 2.3mm
F19. YY02B01016P1 [1]  PIN KOB
F20. YY02B01017P1 [2]  PIN KOB
