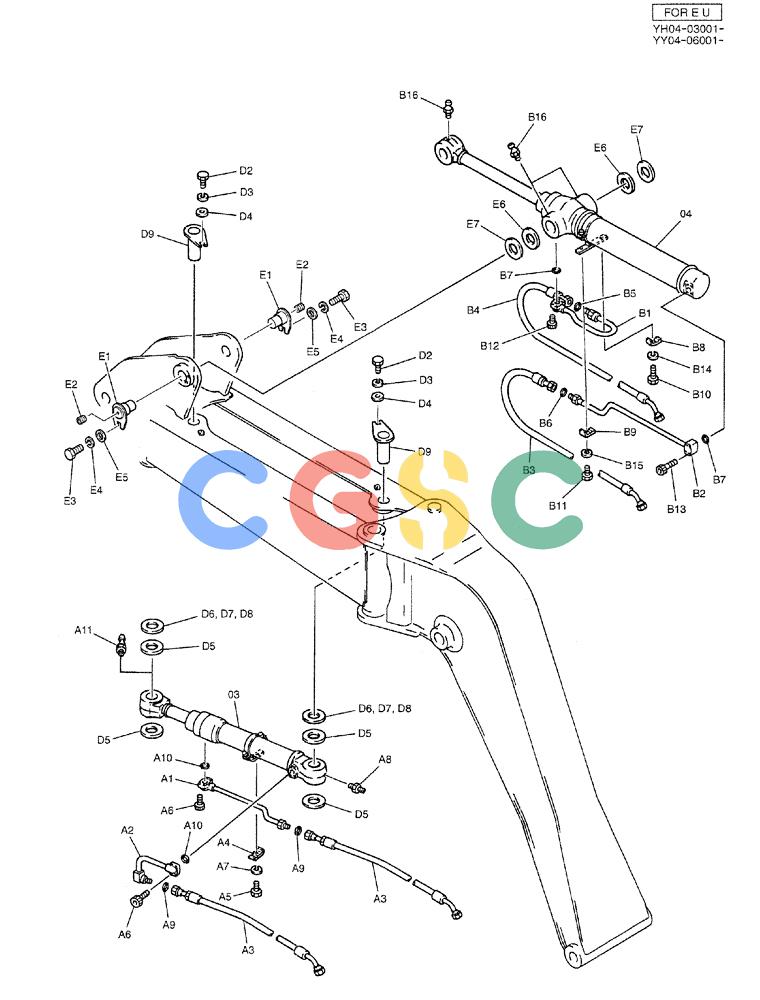

Pos.	Part No	Qty	Parts name	Comments
01.	YY01V00001F1	[1]	CYLINDER ASSY.	KOB Superseded by part number: YY01V00002F2
02.	YY01V00002F1	[1]	CYLINDER ASSY.	KOB Superseded by part number: YY01V00002F2
03.	YX01V00008F1	[1]	CYLINDER	KOBASSY, OFFSET Superseded by part number: YX01V00008F2
04.	YY01V00009F1	[1]	CYLINDER	KOBASSY, ARM Superseded by part number: YY01V00009F2
. .	YX42H00007F1	[1]	HYD, CYLINDER
A1.	YX42H01051P1	[1]	TUBE	KOB
A2.	YX42H01052P1	[1]	TUBE	KOB
A3.	YX42H01061D1	[2]	HOSE	KOB
A4.	ZC26X22011	[1]	CLAMP	KOBSingle Line -- 38x29x65mm Long
A5.	ZS18C10050	[1]	SCREW,Hex, M10 x 50mm	KOBM10x1.50x50mm
A6.	ZS28C10030	[8]	SCREW,Hex Socket Head, M10 x 30mm	KOBM10x1.50x30mm
A7.	ZW26X10000	[1]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
A8.	ZH22Z04000	[1]	HYD CONNECTOR	KOB1/4"PTx1/4"PFx37mm Long
A9.	ZD12A01600	[8]	O-RING	KOBID 15.60 ± 0.12 x OD 19.16mm
A10.	ZD12P02600	[2]	O-RING	KOBID 25.70 ± 0.26 x OD 32mm
A11.	ZG91S02000	[1]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB1/8" PT -- Straight
. .	YY42H00029F1	[1]	HYD, CYLINDER
B1.	YX42H01034P1	[1]	TUBE	KOB
B2.	YY42H01132P1	[1]	TUBE	KOB
B3.	YX42H01062D1	[1]	HOSE	KOB
B4.	YX42H01063D1	[1]	HOSE	KOB
B5.	ZD12A01600	[1]	O-RING	KOBID 15.60 ± 0.12 x OD 19.16mm
B6.	ZD12A01800	[1]	O-RING,1.78mm Thk x 18.77mm ID, Cl 6	KOBID 18.77 ± 0.12 x OD 22.33mm
B7.	ZD12P02600	[2]	O-RING	KOBID 25.70 ± 0.26 x OD 32mm
B8.	ZC26X22011	[1]	CLAMP	KOBSingle Line -- 38x29x65mm Long
B9.	ZC26X28014	[1]	CLAMP	KOBSingle Line -- 75x37x38mm (Ø28mm)
B10.	ZS18C10045	[1]	SCREW,Hex, M10 x 45mm	KOBM10x1.50x45mm
B11.	ZS18C12055	[1]	SCREW,Hex, M12 x 55mm	KOBM12x1.75x55mm
B12.	ZS28C10030	[4]	SCREW,Hex Socket Head, M10 x 30mm	KOBM10x1.50x30mm
B13.	ZS28C10070	[4]	SCREW,Hex Socket Head, M10 x 70mm	KOBM10x1.50x70mm
B14.	ZW26X10000	[1]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
B15.	ZW26X12000	[1]	LOCK WASHER	KOBID 12 x OD 21 x Th 3.0mm
B16.	ZG91S02000	[3]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB1/8" PT -- Straight
. .	YY42H00003F1	[1]	LINE	KOBHYD, CYLINDER
C1.	YY42H01009P1	[1]	TUBE	KOB
C2.	YY42H01010P1	[1]	TUBE	KOB
C3.	YY42H01011P1	[1]	TUBE	KOB
C4.	YY42H01012P1	[1]	TUBE	KOB
C5.	ZX20H10074	[4]	HOSE	KOB740mm Long (29-1/8 in)
C6.	2432T2244	[2]	CLAMP	KOBDouble -- 102x32x12mm (Ø23xØ23mm)
C7.	ZS18C10055	[2]	SCREW,Hex, M10 x 55mm	KOBM10x1.50x55mm
C8.	ZS28C10030	[16]	SCREW,Hex Socket Head, M10 x 30mm	KOBM10x1.50x30mm
C9.	ZW26X10000	[2]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
C10.	ZH22Z04000	[2]	HYD CONNECTOR	KOB1/4"PTx1/4"PFx37mm Long
C11.	ZG91S02000	[2]	LUBE NIPPLE,1/8" NPT x 1/8" NPT	KOB1/8" PT -- Straight
C12.	ZD12A01600	[4]	O-RING	KOBID 15.60 ± 0.12 x OD 19.16mm
C13.	ZD12P02600	[4]	O-RING	KOBID 25.70 ± 0.26 x OD 32mm
. .	YX02B00003F2	[1]	INSTAL
D2.	ZS18C10016	[2]	SCREW,Hex, M10 x 16mm	KOBM10x1.50x16mm
D3.	ZW26X10000	[2]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
D4.	2418T18152D7	[2]	SPACER	KOB
D5.	YN12B01009P1	[4]	SHIM,3mm Thk	KOB(3.0)
D6.	B16T0442D57	[2]	SHIM,72mm ID x 130mm OD x 0.5mm Thk	KOBID 72 x OD 130 x Th 0.5mm
D7.	B16T0442D44	[2]	SHIM,72mm ID x 130mm OD x 0.9mm Thk	KOBID 72 x OD 130 x Th 0.9mm
D8.	B16T0442D1	[2]	SHIM,130mm OD x 72mm ID x 1.2mm Thk	KOBID 72 x OD 130 x Th 1.2mm
D9.	YY02B01028P1	[2]	PIN	KOB
. .	YY02B00010F1	[2]	INSTAL
E1.	YX02B01039P1	[2]	PIN	KOB
E2.	ZS83C16020	[2]	SCREW	KOBSet -- M16x2.0x20mm
E3.	ZS28C16030	[2]	SCREW,Hex Socket Head, M16 x 30mm	KOBM16x2.0x30mm
E4.	ZW26K16000	[2]	LOCK WASHER	KOBID 16 x OD 24 x Th 3.5mm
E5.	PW12B01242P1	[2]	WASHER	KOB
E6.	YX02B01018P1	[2]	SHIM	KOB(2.0)
E7.	B16T0442D79	[2]	SHIM,130mm OD x 82mm ID x 0.5mm Thk	KOBID 82 x OD 130 x Th 0.5mm
. .	YY02B00005F2	[2]	INSTAL
F3.	LP02B01054P1	[2]	COLLAR	KOB
F4.	HS18C14135G1	[2]	SCREW	KOB Superseded by part number: HS18C14135G2
F5.	ZS18C10020	[2]	SCREW,Hex, M10 x 20mm	KOBM10x1.50x20mm
F6.	2418T21137	[2]	WASHER	KOB
F7.	ZW26X10000	[2]	LOCK WASHER	KOBID 10 x OD 18 x Th 2.5mm
F8.	ZN18C14011	[4]	NUT	KOBM14x2.0mm
F9.	LP02B01055P1	[2]	SHIM,3.0mm Thk	KOB(3.0)
F10.	LP02B01060D1	[2]	SHIM	KOBID 82 x OD 110 x Th 0.5mm
F11.	LP02B01060D2	[2]	SHIM	KOBID 82 x OD 110 x Th 0.9mm
F12.	LP02B01060D3	[2]	SHIM	KOBID 82 x OD 110 x Th 1.2mm
F13.	LP02B01060D4	[2]	SHIM	KOBID 82 x OD 110 x Th 1.6mm
F14.	B16T0442D57	[2]	SHIM,72mm ID x 130mm OD x 0.5mm Thk	KOBID 72 x OD 130 x Th 0.5mm
F15.	B16T0442D44	[2]	SHIM,72mm ID x 130mm OD x 0.9mm Thk	KOBID 72 x OD 130 x Th 0.9mm
F16.	B16T0442D1	[2]	SHIM,130mm OD x 72mm ID x 1.2mm Thk	KOBID 72 x OD 130 x Th 1.2mm
F17.	B16T0442D2	[2]	SHIM,130mm OD x 72mm ID x 1.6mm Thk	KOBID 72 x OD 130 x Th 1.6mm
F18.	B16T0442D5	[2]	SHIM,130mm OD x 72mm ID x 2.3mm Thk	KOBID 72 x OD 130 x Th 2.3mm
F19.	YY02B01016P1	[1]	PIN	KOB
F20.	YY02B01017P1	[2]	PIN	KOB
