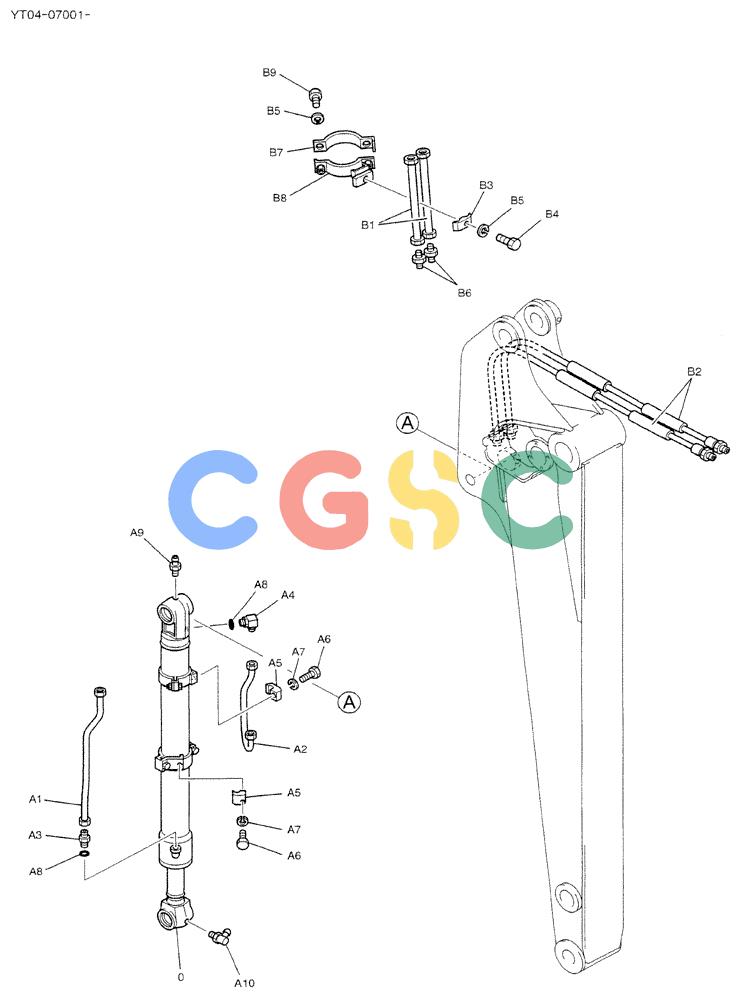

| 0. | YT01V00019F2 | [1] | CYLINDER ASSY. | KOBBUCKET Superseded by part number: YT01V00019F1 |
| . . | YR43H00011F1 | [1] | HYD LINES, CYLINDER | |
| A1. | YR43H01034P1 | [1] | TUBE | KOBTUBE |
| A2. | YR43H01019P1 | [1] | TUBE | KOBTUBE |
| A3. | ZA23F22008 | [1] | HYD CONNECTOR | KOB1/2" PT - M30x1.50 x 43mm Long |
| A4. | ZA33F22008 | [1] | 90 ELBOW,M30 x 1.5 ORB x 1/2" NPT | KOB90° -- 1/2" PF - M30x1.50x34mm Long (Incls. O-Ring ZD12P02400) |
| A5. | YR43H01003P1 | [2] | CLAMP | KOB |
| A6. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBM10x1.50x50mm |
| A7. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A8. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A9. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| A10. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| . . | YR43H00007F1 | [1] | HYD LINES, ARM | |
| B1. | YR43H01027P1 | [2] | TUBE | KOBTUBE |
| B2. | YR43H01022P1 | [2] | HOSE | KOBHOSE |
| B3. | ZC36X22011 | [1] | CLAMP | KOBDouble Line -- 75x38x13mm (Ø24mm) |
| B4. | ZS18C10045 | [1] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| B5. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B6. | ZA23B22000 | [2] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| B7. | YR43H01028P1 | [1] | BAND | KOBBAND |
| B8. | YR43H01029P1 | [1] | BAND | KOBBAND |
| B9. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
