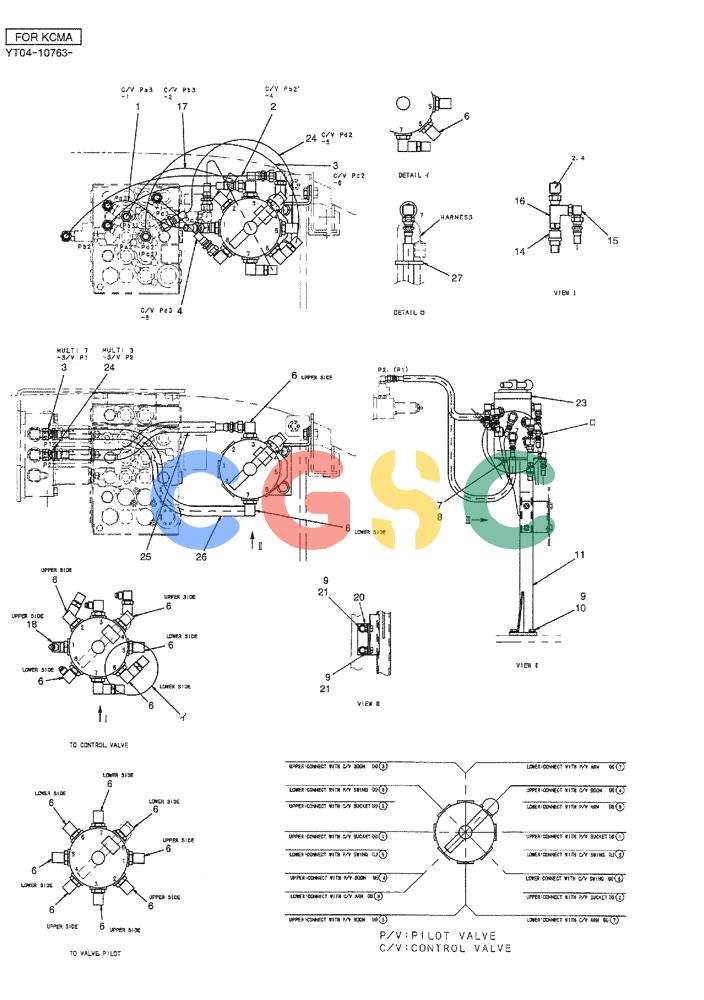

| . . | YT64H00037F7 | [1] | LINES, MULTI | |
| 1. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 2. | 2420R349D060 | [1] | HOSE,6.35mm ID x 700mm L | KOB600mm Long (23-5/8 in) |
| 3. | 2420R349D090 | [2] | HOSE,6.35mm ID x 900mm L | KOB900mm Long (35-7/16 in) |
| 4. | 2420R349D030 | [1] | HOSE,300.00 mm | KOB |
| 6. | ZH32X04006 | [15] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| 7. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 8. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 9. | ZW16H10000 | [7] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 10. | ZS18C10030 | [3] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 11. | YT64H01055P1 | [1] | BRACKET | KOB |
| 14. | LC52S00011P1 | [2] | SENSOR | KOBPressure (Low Pressure) (Incls. O-Ring ZD12P01100) Superseded by part number: LC52S00019P1 |
| 14-2. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 15. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 16. | YT64H01023P1 | [2] | TEE | KOB |
| 17. | 2420R349D100 | [1] | HOSE | KOB1000mm Long (39-3/8 in) Superseded by part number: HX21E04100DX |
| 18. | ZH42X04006 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB45° -- 1/4"PFx3/8"PFx53.5mm Long (Incls. O-Ring 237-6006) |
| 20. | YT64H01036P1 | [1] | SUPPORT | KOB |
| 21. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 23. | YY30V00019F2 | [1] | CONTROL VALVE | KOB |
| 24. | 2420R349D050 | [2] | HOSE,500.00 mm | KOB500mm Long (19-11/16 in) |
| 25. | PU13E01002D7 | [1] | TUBE | KOB400mm Long (15-3/4 in) |
| 26. | PU13E01002DE | [1] | TUBE | KOB |
| 27. | PY01P01043D5 | [1] | CABLE TIE,301mm L | KOBWire Ties -- 292mm Long |
