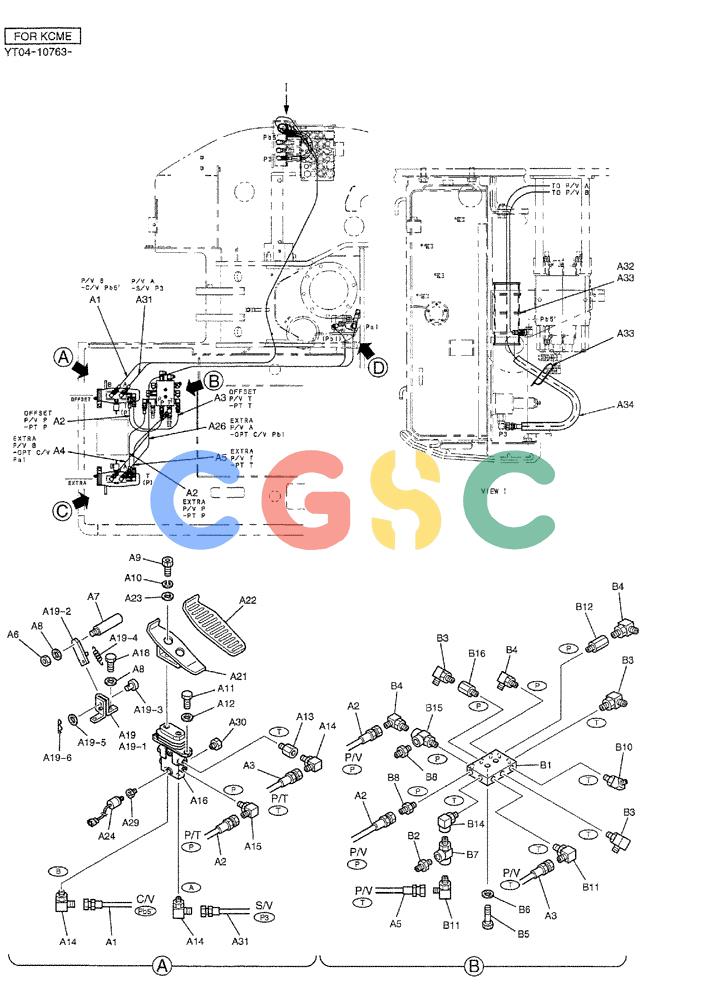

Pos.	Part No	Qty	Parts name	Comments
. .	YT68H00039F2	[1]
A1.	2420R349D280	[1]	HOSE	KOBPF 1/4 Superseded by part number: HX21E04280DX
A2.	2420R349D040	[2]	HOSE,6.35mm ID x 400mm L	KOB1/4" PF, 400mm Long (15-3/4 in)
A3.	2444R1120D050	[1]	HOSE	KOB500mm Long (19-11/16 in)
A4.	2420R349D230	[1]	HOSE ASSY.	KOB2300mm Long (90-1/2 in)
A5.	2444R1120D042	[1]	FLEXIBLE HOSE	KOB420mm Long (16-1/2 in)
A6.	ZN18C08007	[2]	NUT	KOBM08x1.25mm
A7.	PY03M01026P1	[2]	PIN	KOBM08x1.25x115mm Long
A8.	ZW16X08000	[6]	WASHER,8mm ID x 17mm OD x 1.6mm Thk	KOBID 08 x OD 17 x Th 1.6mm
A9.	ZS28C10020	[4]	SCREW,Hex Socket Head, M10 x 20mm	KOBM10x1.50x20mm
A10.	ZW26K10000	[4]	LOCK WASHER	KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679
A11.	ZS18C10025	[4]	SCREW,Hex, M10 x 25mm	KOBM10x1.50x25mm
A12.	ZW16X10000	[4]	WASHER	KOBID 10 x OD 21 x Th 2.0mm
A13.	2444Z2525	[2]	HYD CONNECTOR	KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408
A14.	ZH32X04000	[7]	90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring	KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004)
A15.	HH35X04004G3	[2]	90 ELBOW	KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100)
A16.	YN30V00080F1	[2]	VALVE	KOB
A18.	ZS18C08020	[4]	SCREW,Hex, M8 x 20mm	KOBM08x1.25x20mm
A19.	YT30M01002F1	[1]	LOCK	KOBAssembly
A19-1.	PY30M01004P1	[1]	SUPPORT	KOB
A19-2.	YT30M01004P1	[1]	LOCK	KOB
A19-3.	HP45X10022G1	[1]	PIN	KOB Superseded by part number: PM55M01012P1
A19-4.	HP26T09002G1	[1]	SPRING	KOB
A19-5.	ZW16X10000	[1]	WASHER	KOBID 10 x OD 21 x Th 2.0mm
A19-6.	2419R9D3	[1]	PIN	KOBHair -- OD 10mm x 32.6mm Long
A20.	YT30M01005F1	[1]	LOCK	KOBAssembly
A20-1.	PY30M01003P1	[1]	SUPPORT	KOB
A20-2.	YT30M01004P1	[1]	LOCK	KOB
A20-3.	PM55M01012P1	[1]	PIN	KOB
A20-4.	HP26T09002G1	[1]	SPRING	KOB
A20-5.	ZW16X10000	[1]	WASHER	KOBID 10 x OD 21 x Th 2.0mm
A20-6.	2419R9D3	[1]	PIN	KOBHair -- OD 10mm x 32.6mm Long
A21-2.	YN03M01265P1	[2]	PEDAL	KOB
A22.	YN03M01266P2	[2]	RUBBER SLEEVE	KOB
A23.	ZW16K10000	[4]	WASHER	KOBID 10.5 x OD 18 x Th 2.0mm
A25.	ZH22X04000	[1]	HYD CONNECTOR,1/4" NPT x 1/4" NPT	KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100)
A26.	2420R349D200	[1]	HOSE ASSY.	KOB2000mm Long (78-3/4 in)
A27.	2444Z2894	[1]	90 ELBOW	KOBElbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100)
A28.	2444T2524	[1]	HYD CONNECTOR	KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100)
A29.	2444Z3322D2	[2]	CONNECTION	KOB1/4"PF x 1/8"PT x 27mm Long (Incls. O-Ring ZD12P01100)
A30.	ZE72X04000	[2]	PLUG	KOB(PF 1/4) (Incls. O-Ring ZD12P01100)
A31.	2420R349D340	[1]	HOSE	KOB3400mm Long (133-55/64 in) Superseded by part number: HX21E04340DX
A32.	YN64H01018P1	[1]	GROMMET	KOB
A33.	PY01P01043D6	[4]	CABLE TIE,4.80mm W x 383mm L	KOBWire Ties -- 368mm Long
A34.	2418Z1333D32	[1]	PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 650mm Length	KOBProtective Plastic
. .	YT64H00036F4	[1]	LINES, BLOCK
B1.	2416N6141	[1]	BLOCK	KOB
B2.	ZH22X06000	[1]	HYD CONNECTOR	KOB(Incls. O-Ring ZD12P01400)
B3.	ZH32X06000	[3]	90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring	KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006
B4.	ZH32X04000	[3]	90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring	KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004)
B5.	ZS18C08040	[2]	SCREW,Hex, M8 x 40mm	KOBM08x1.25x40mm
B6.	ZW16H08000	[2]	WASHER	KOBID 08 x OD 18 x Th 3.2mm
B7.	HH55Q06006G1	[1]	TEE	KOB3/8" PF (Incls. O-Ring ZD12P01400)
B8.	ZH22X04000	[2]	HYD CONNECTOR,1/4" NPT x 1/4" NPT	KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100)
B10.	ZH42X06000	[1]	45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring	KOB45° -- (Incls. O-Ring 237-6006)
B11.	ZH32X04006	[2]	90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring	KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400)
B12.	2444Z2525	[1]	HYD CONNECTOR	KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408
B14.	2444Z3155	[1]	90 ELBOW,PF 3/8" Fem x PF 3/8" Male	KOB90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 Superseded by part number: YT42H01128P1
B15.	HH55Q04004G1	[1]	TEE,1/4" ORB x 1/4" JIC x 1/4" JIC	KOB1/4" PF (Incls. O-Ring ZD12P01100)
B16.	2444Z2891	[1]	HYD CONNECTOR	KOB(Incls. O-Ring ZD12P01400)
