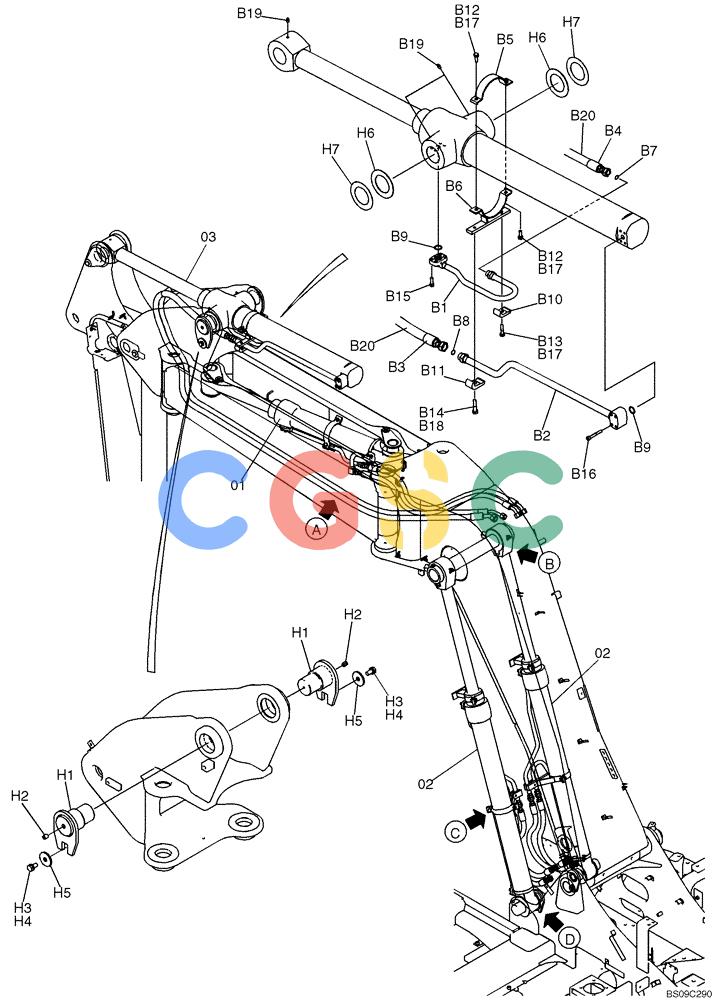

| B1. | YX42H01034P1 | [1] | TUBE | KOB |
| B2. | YX42H01035P1 | [1] | TUBE | KOBTube |
| B3. | YX42H01062D1 | [1] | HOSE | KOB |
| B4. | YX42H01063D1 | [1] | HOSE | KOB |
| B5. | YX42H01074P2 | [1] | BAND | KOB |
| B6. | YX42H01152P1 | [1] | BAND | KOBBand |
| B7. | ZD12A01600 | [1] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| B8. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| B9. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| B10. | ZC26X22011 | [1] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| B11. | ZC26X28014 | [1] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| B12. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| B13. | ZS18C10045 | [1] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| B14. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| B15. | ZS28C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm |
| B16. | ZS28C10070 | [4] | SCREW,Hex Socket Head, M10 x 70mm | KOBM10x1.50x70mm |
| B17. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B18. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| B19. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| B20. | 2414Z199D100 | [2] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
| 01. | YY01V00061F1 | [1] | HYDRAULIC CYLINDER | KOBOffset Cylinder Assembly, See Full Model Parts Catalog |
| 02. | YY01V00058F1 | [2] | CYLINDER | KOBBoom Cylinder Assembly, See Full Model Parts Catalog Superseded by part number: YY01V00058F2 |
| 03. | YY01V00059F1 | [1] | CYLINDER | KOBArm Cylinder Assembly, See Full Model Parts Catalog Superseded by part number: YY01V00059F2 |
| H1. | YX02B01039P1 | [2] | PIN | KOB |
| H3. | ZS18C16030 | [2] | SCREW,Hex, M16 x 30mm | KOBM16x2.0x30mm |
| H4. | ZW26X16000 | [2] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| H5. | PW12B01242P1 | [2] | WASHER | KOB |
| H6. | YX02B01018P1 | [2] | SHIM | KOB(2.0) |
| H7. | B16T0442D79 | [2] | SHIM,130mm OD x 82mm ID x 0.5mm Thk | KOBID 82 x OD 130 x Th 0.5mm |
