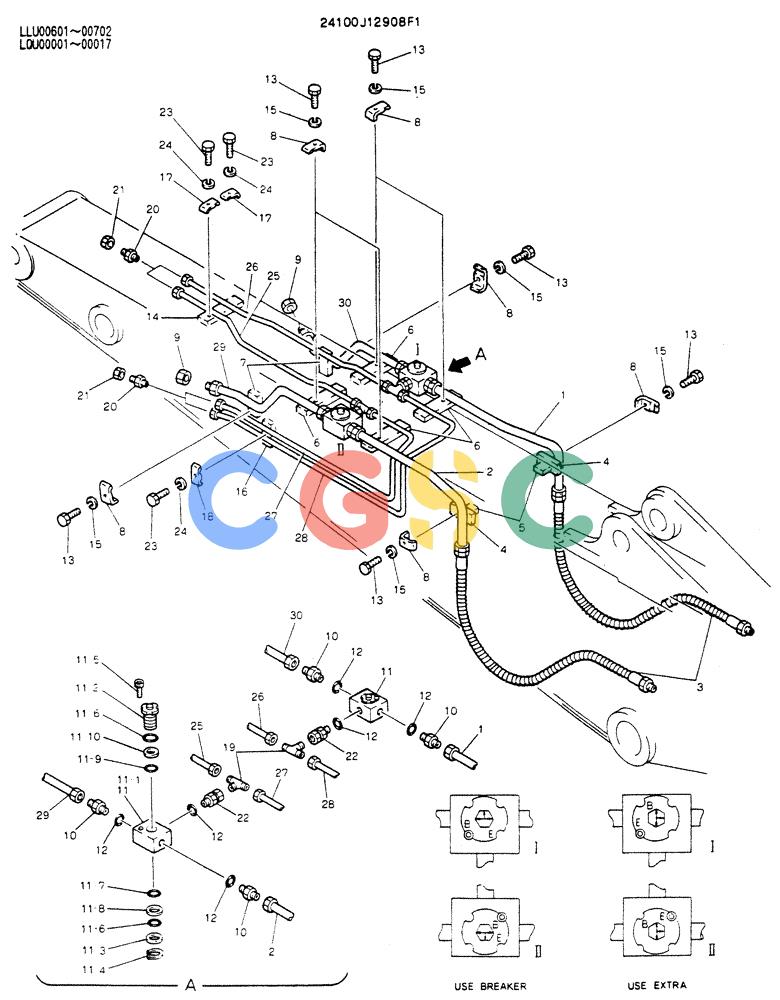

| . . | 24100J12908F1 | [1] | INSTAL, HYD LINES INSTAL,HYDR LINES, ARM | INSTAL, HYD LINES INSTAL,HYDR LINES, ARM |
| 1. | 2418P18820D3 | [1] | TUBE | KOB |
| 2. | 2418P18820D4 | [1] | TUBE | TUBE |
| 3. | ZX56T16160 | [2] | FLEXIBLE HOSE | KOB |
| 4. | 2416T12924D3 | [2] | LINK BLOCK | KOB |
| 5. | 2418T12187D3 | [2] | PLATE | PLATE |
| 6. | 2416T13103D3 | [4] | BLOCK,TAPPED | |
| 7. | 2411T763 | [2] | BLOCK | KOB |
| 8. | ZC26X35016 | [8] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 9. | 2444T2406 | [2] | PLUG | KOBCap -- 1-5/16" 12UNF |
| 10. | 2444Z2093 | [4] | HYD CONNECTOR | KOB |
| 11. | 24100P1005F1 | [2] | VALVE | KOB Superseded by part number: 24100P1005F3 |
| 11-1. | 2436P229 | [1] | VALVE BODY | KOB |
| 11-2. | 2436T303 | [1] | VALVE | KOB |
| 11-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 11-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 11-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 11-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 11-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 11-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 11-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 11-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 12. | ZD12P02240 | [6] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 13. | ZS13C14060 | [8] | SCREW | KOBM14x2.0x60mm Superseded by part number: ZS18C14060 |
| 14. | 2416T13203D2 | [1] | BLOCK, TAPPED | BLOCK, TAPPED |
| 15. | ZW22X14000 | [8] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 16. | 2416T9878D5 | [1] | CONNECTING BLOCK | KOB |
| 17. | ZC26X18011 | [2] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 18. | ZC36X18011 | [1] | CLAMP | KOB |
| 19. | ZA53B18000 | [2] | TEE | KOB |
| 20. | 2444Z2225 | [4] | HYD CONNECTOR | KOB |
| 21. | 2420T4384 | [4] | PLUG | KOB |
| 22. | 2444T2453D1 | [2] | CONNECTOR | |
| 23. | ZS13C10045 | [3] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 24. | ZW22X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 25. | 2418P24536 | [1] | TUBE | TUBE |
| 26. | 2418P24537 | [1] | TUBE | |
| 27. | 2418P24369 | [1] | RIGID TUBE | KOB |
| 28. | 2418P24370 | [1] | TUBE | TUBE |
| 29. | 2418P18825D3 | [1] | BARREL | KOB |
| 30. | 2418P18825D4 | [1] | TUBE | |
