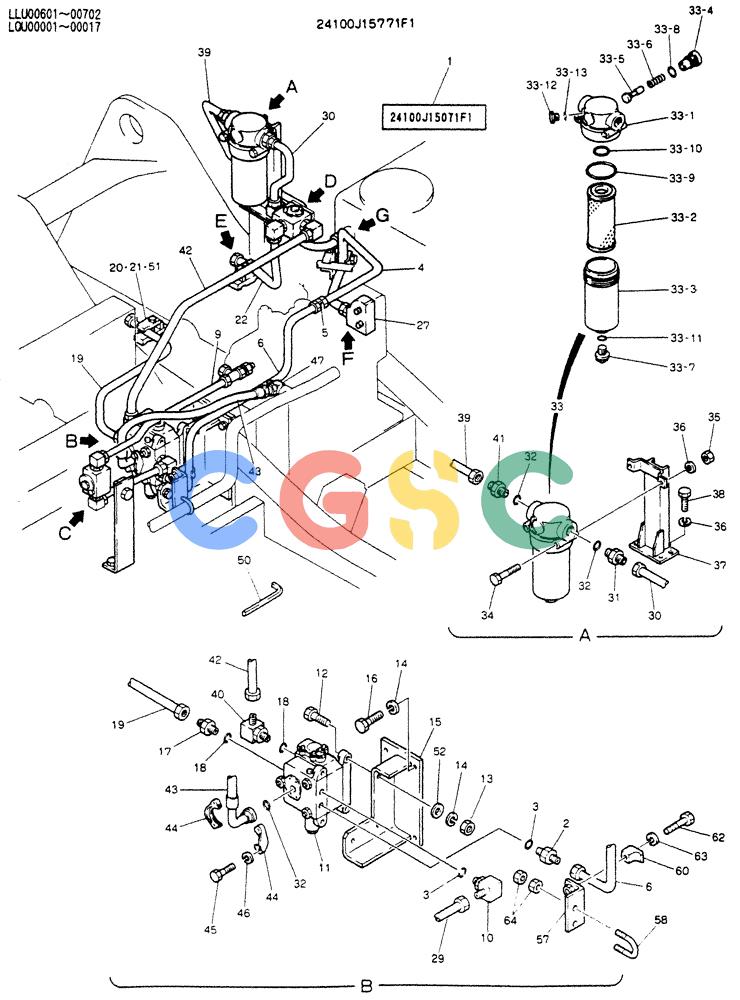

神钢零件查询(NIBBLER) - BREAKER & EXTRA ATTACHMENTS - SK220 ASN LQU0001 & SK200LC ASN LLU0601 (1/91-12/97) (03-003[01]) - UPPER HYDRAULICS (NIBBLER & BREAKER) Kobelco

作者：广数供应链运营团队

浏览数：

时间：2025-01-23 09:34:19

Parts Contact me WhatsApp

工程机械零件图册查询

专业覆盖挖掘机、装载机、推土机全系配件

立即查询

Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

Pos.	Part No	Qty	Parts name	Comments
. .	24100J15771F1	[1]	HYDR LINES , UPP
1.	24100J15071F1	[1]	HYDR LINES , UPP
2.	ZA23F22012	[2]	HYD CONNECTOR	KOB3/4"PF - M30x1.50 x 46mm Long
3.	ZD12P02400	[9]	O-RING	KOBID 23.70 ± 0.24 x OD 30mm
4.	2418P28844	[1]	RIGID TUBE	KOB
5.	ZA23B22000	[1]	HYD CONNECTOR	KOBM30x1.50x38mm Long
6.	2418P28838	[1]	RIGID TUBE	KOB
7.	ZA23H22012	[1]	HYD CONNECTOR	KOB
8.	ZA53B22000	[1]	TEE	KOB
9.	2418T25155	[1]	RIGID TUBE	KOB
10.	ZA33F22012	[2]	ELBOW	KOB
11.	2436U1198F1	[1]	CONTROL VALVE	KOB Superseded by part number: YN30V00011F3
12.	ZS13C12055	[2]	SCREW	KOBM12x1.75x55mm Superseded by part number: ZS18C12055
13.	ZN13C12010	[4]	NUT	KOBM12x1.75mm Superseded by part number: ZN18C12010
14.	ZW22X12000	[7]	LOCK WASHER	KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000
15.	2416P12072	[1]	U-BRACKET	KOB
16.	ZS13C12040	[4]	SCREW	KOBM12x1.75x40mm Superseded by part number: ZS18C12040
17.	ZA23F28016	[1]	CONNECTION	KOB1" PF - M36x1.50x49mm Long
18.	ZD12P02900	[2]	O-RING	KOBID 28.70 ± 0.29 x OD 35mm
19.	2418P28839	[1]	CLAMP	KOB
20.	2432T4355	[2]	CLAMP	KOB
21.	ZS13C12110	[1]	SCREW	KOBM12x1.75x110mm Superseded by part number: ZS18C12110
22.	2418P28840	[1]	RIGID TUBE	KOB
23.	ZF33F28012	[3]	ELBOW	KOB Superseded by part number: ZA33F28012
24.	24100P1005F1	[1]	VALVE	KOB Superseded by part number: 24100P1005F3
24-1.	2436P229	[1]	VALVE BODY	KOB
24-2.	2436T303	[1]	VALVE	KOB
24-3.	2418T8945D1	[1]	SPACER	KOBID 40 x OD 60 x Th 3.2mm
24-4.	ZR16X04000	[1]	RING	KOBRetaining -- ID 37 x OD 40 x Th 1.8mm
24-5.	ZS23C06010	[1]	SCREW,Hex Socket Head, M6 x 10mm	KOBM06x1.0x10mm
24-6.	ZD11G04000	[2]	O-RING,39.40mm ID x 45.60mm OD x 3.10mm	KOBID 39.40 ± 0.37 x OD 45mm
24-7.	ZD12G04000	[1]	O-RING,39.40mm ID x 45.60mm OD x 3.10mm	KOBID 39.40 ± 0.37 x OD 45mm
24-8.	ZD75G04000	[1]	BACK-UP RING	KOBID 40 x OD 45 x Th 1.25mm
24-9.	ZD12G03500	[1]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOBID 34.40 ± 0.33 x OD 40mm
24-10.	ZD85G03500	[1]	RING	KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm
25.	ZS13C08018	[4]	SCREW	KOBM08x1.25x18mm Superseded by part number: ZS18C08020
26.	ZW22X08000	[4]	LOCK WASHER	KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583
27.	2436U1207F1	[1]	VALVE	KOB
28.	24100P1739F2	[1]	VALVE PRESSURE RELIE	KOB
28-3.	2418T8945D1	[1]	SPACER	KOBID 40 x OD 60 x Th 3.2mm
28-4.	ZR16X04000	[1]	RING	KOBRetaining -- ID 37 x OD 40 x Th 1.8mm
28-5.	ZS23C06010	[1]	SCREW,Hex Socket Head, M6 x 10mm	KOBM06x1.0x10mm
28-6.	ZD11G04000	[2]	O-RING,39.40mm ID x 45.60mm OD x 3.10mm	KOBID 39.40 ± 0.37 x OD 45mm
28-7.	ZD12G04000	[1]	O-RING,39.40mm ID x 45.60mm OD x 3.10mm	KOBID 39.40 ± 0.37 x OD 45mm
28-8.	ZD75G04000	[1]	BACK-UP RING	KOBID 40 x OD 45 x Th 1.25mm
28-9.	ZD12G03500	[1]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOBID 34.40 ± 0.33 x OD 40mm
28-10.	ZD85G03500	[1]	RING	KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm
28-11.	2436T323	[1]	VALVE
28-12.	2436P271	[1]	BODY, VALVE
29.	2418T25156	[1]	RIGID TUBE	KOB
30.	2418P28841	[1]	RIGID TUBE	KOB
31.	2444Z2348	[1]	HYD CONNECTOR	KOB
32.	ZD12P03800	[4]	O-RING	KOBID 37.70 ± 0.37 x OD 44.7mm
33.	2446U233F1	[1]	FILTER ASSY	KOB
33-1.	2446U232S1	[1]	COVER	KOB
33-2.	2446U233S2	[1]	ELEMENT	KOB
33-3.	2446U232S3	[1]	CASE	KOB
33-4.	2446U233S4	[1]	PLUG
33-5.	2446U233S5	[1]	VALVE
33-6.	2446U233S6	[1]	SPRING
33-7.	2446U233S7	[1]	PLUG	KOB
33-8.	ZD12P02800	[1]	O-RING	KOBID 27.70 ± 0.27 x OD 34mm
33-9.	ZD12G11500	[1]	O-RING,114.40mm ID x 120.60mm OD x 3.10mm	KOBID 114.40 ± 0.94 x OD 120mm
33-10.	ZD11P05000	[1]	O-RING	KOB
33-11.	ZD12G03000	[1]	O-RING,29.40mm ID x 35.60mm OD x 3.10mm	KOBID 29.4 ± 0.29 x OD 35mm
33-12.	2446U233S12	[1]	SCREW	KOB
33-13.	ZD12P01200	[1]	O-RING	KOBID 11.80 ± 0.19 x OD 16mm
34.	ZS18C12110	[2]	SCREW,Hex, M12 x 110mm	KOBM12x1.75x110mm
35.	ZN18C12010	[4]	NUT	KOBM12x1.75mm
36.	ZW26X12000	[8]	LOCK WASHER	KOBID 12 x OD 21 x Th 3.0mm
37.	2416T13239	[1]	U-BRACKET	KOB
38.	ZS18C12030	[6]	SCREW,Hex, M12 x 30mm	KOBM12x1.75x30mm
39.	2418P28842	[1]	RIGID TUBE	KOB
40.	ZA33F28016	[1]	ELBOW	KOB
41.	ZA23F35020	[2]	HYD CONNECTOR	KOB
42.	2418P28843	[1]	RIGID TUBE	KOB
43.	2444Z3560D1	[1]	FLEXIBLE HOSE	KOB
44.	ZE12X20000	[2]	CLAMP	KOB
45.	ZS23C10030	[4]	SCREW,Hex Socket Head, M10 x 30mm	KOBM10x1.50x30mm Superseded by part number: ZS28C10030
46.	ZW22K10000	[4]	LOCK WASHER	KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm
47.	2444Z3554	[1]	TEE	KOB
48.	ZS13C12130	[1]	SCREW	KOBM12x1.75x130mm Superseded by part number: ZS18C12130
49.	2432P1083	[1]	LABEL	KOB
50.	ZT22A05000	[1]	KEY	KOBScrew -- 05mm
51.	2432T2326	[2]	CLAMP	KOB
52.	ZW16X12000	[5]	WASHER	KOBID 12 x OD 24 x Th 2.3mm
53.	ZW11X10000	[1]	WASHER	KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000
54.	ZW13H12000	[1]	WASHER	KOB
55.	2416T27325	[1]	U-BRACKET	KOB
56.	2416T25554	[1]	U-BRACKET	KOB
57.	2416T25555	[1]	U-BRACKET	KOB
58.	2420T2948D5	[1]	U-BOLT	KOBM08x1.25x ID 45 x 80.5mm Long
59.	ZC27X28012	[1]	CLAMP	KOBCLAMP Superseded by part number: YN43H01097P1
60.	ZC27X22012	[3]	COLLAR	HIT
61.	ZS13C10060	[1]	SCREW	KOBM10x1.50x60mm Superseded by part number: ZS18C10060
62.	ZS13C10055	[3]	SCREW	KOBM10x1.50x55mm Superseded by part number: ZS18C10055
63.	ZW22X10000	[4]	LOCK WASHER	KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000
64.	ZN13C08007	[4]	NUT	KOBM08x1.25mm Superseded by part number: ZN18C08007
65.	ZN13C10008	[1]	NUT	KOBM10x1.50mm Superseded by part number: ZN18C10008
