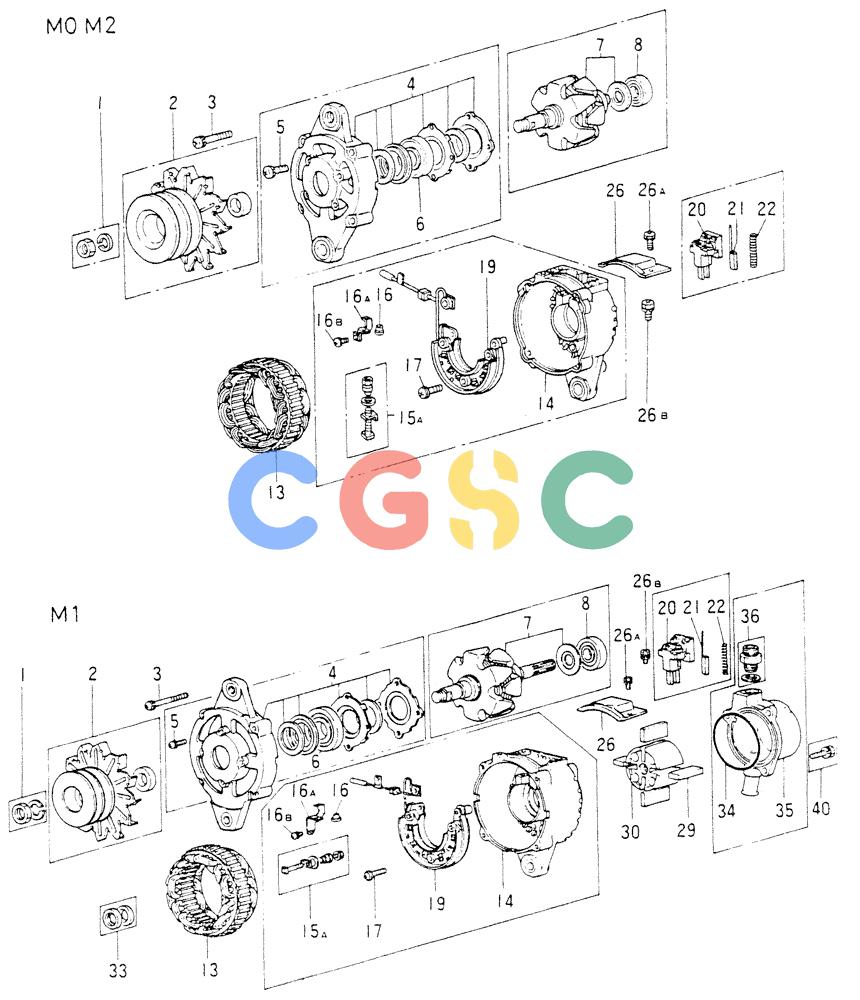

| 1-26B. | VAME067611 | [1] | ALTERNATOR | KOBALTERNATOR ASSY 24V-3QA (FOR M0 ONLY), (MEC A002T70772) |
| 1-40. | VAME037482 | [1] | ALTERNATOR ASSY 24V-40A (FOR M1 ONLY), (MEC A004T57371) | |
| 1-26B. | VAME067617 | [1] | ALTERNATOR | KOBALTERNATOR ASSY 24V-40A (FOR M2 ONLY), (MEC A004T57472) |
| 1. | VAA529X05471 | [1] | NUT NUT SET | NUT NUT SET |
| 2. | VAA628T34171 | [1] | PULLEY PULLEY ASSY (FOR M0 ONLY) | PULLEY PULLEY ASSY (FOR M0 ONLY) |
| 2. | VAA628T34371 | [1] | PULLEY ASSY (FOR M1&M2 ONLY) | |
| 3. | VAA414X14971 | [1] | SCREW | KOBSCREW SET |
| 4-6. | VAA640T21170 | [1] | U-BRACKET | KOBBRACKET ASSY FR (FOR M0 ONLY) |
| 4-6. | VAA640T21270 | [1] | BRACKET ASSY FR (FOR M1&M2 ONLY) | |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET,FR |
| 5. | VAA414X15071 | [1] | SCREW SCREW SET | SCREW SCREW SET |
| 6. | VAS930P34170 | [1] | BEARING | KOBBEARING |
| 7-8. | VAA880T22070 | [1] | ROTOR | KOBROTOR ASSY (FOR M0 ONLY) Superseded by part number: VAME700150 |
| 7-8. | VAA880T22470 | [1] | ROTOR ASSY (FOR M1 ONLY) | |
| 7-8. | VAA880T22570 | [1] | ROTOR | KOBROTOR ASSY (FOR M2 ONLY) |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONROTOR |
| 8. | VAS930P33970 | [1] | BEARING | KOBBEARING |
| 13. | VAA383T20270 | [1] | AIR CONDITIONING STATOR (FOR M0 ONLY) | AIR CONDITIONING STATOR (FOR M0 ONLY) |
| 13. | VAA383T20670 | [1] | STATOR (FOR M1&M2 ONLY) | |
| 14-19. | VAA641T34670 | [1] | BRACKET | KOBBRACKET ASSY RE (FOR M0 ONLY) |
| 14-19. | VAA641T35170 | [1] | BRACKET ASSY RE (FOR M1 ONLY) | |
| 14-19. | VAA641T35270 | [1] | BRACKET ASSY RE (FOR M2 ONLY) | |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, RE |
| 15A. | VAA450X10571 | [1] | TERMINAL | KOBTERMINAL SET |
| 16. | VAA771S01017 | [1] | MOLD MOLD | MOLD MOLD |
| 16A. | VAA308D01501 | [1] | CONNECTOR CONNECTION (FOR M0 ONLY) | CONNECTOR CONNECTION (FOR M0 ONLY) |
| 16A. | VAA308D01601 | [1] | CONNECTION (FOR M1, M2 ONLY) | |
| 16B. | VAS054S05083 | [1] | SCREW SCREW,P 5X8 | SCREW SCREW,P 5X8 |
| 17. | VAA414X17071 | [1] | SCREW SCREW SET | SCREW SCREW SET |
| 19. | VAA860T06370 | [1] | RECTIFIER ASSY (FOR M0 ONLY) | |
| 19. | VAA860T07570 | [1] | RECTIFIER A RECTIFIER ASSY (FOR M1&M2 ONLY) | RECTIFIER A RECTIFIER ASSY (FOR M1&M2 ONLY) |
| 20-22. | VAA866X01070 | [1] | REGULATOR | KOBREGULATOR ASSY Superseded by part number: VAME700091 |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONREGULATOR |
| 21. | VAA648D01971 | [1] | BRUSH HOLDER | KOBBRUSH Superseded by part number: VAMM502377 |
| 22. | VAA389D01901 | [2] | SPRING SPRING,BRUSH | SPRING SPRING,BRUSH |
| 26. | VAA212C10801 | [2] | COVER | KOBCOVER (FOR M0 ONLY) |
| . . | VAA212C11101 | [1] | COVER (FOR M1, M2 ONLY) | |
| 26A. | VAS183S05124 | [1] | SCREW SCREW, U/WSR 5X12 | SCREW SCREW, U/WSR 5X12 |
| 26B. | VAA981S60102 | [2] | BOLT | KOBBOLT, W/WSR 6X12 |
| 29. | VAA990D00801 | [1] | VANE (FOR M1 ONLY) | |
| 30. | VAA882C18601 | [1] | ROTOR (FOR M1 ONLY) | |
| 33. | VAA351X90271 | [1] | SEAL SET (FOR M1 ONLY) | |
| 34-36. | VAA574C05271 | [1] | HOUSING ASSY (FOR M1 ONLY) | |
| 34. | VAS809P56670 | [1] | O-RING (FOR M1 ONLY) | |
| 35. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING (FOR M1 ONLY) |
| 36. | VAA584X00772 | [1] | VALVE SET (FOR M1 ONLY) | |
| 40. | VAA715X00671 | [1] | BOLT SET (FOR M1 ONLY) | |
