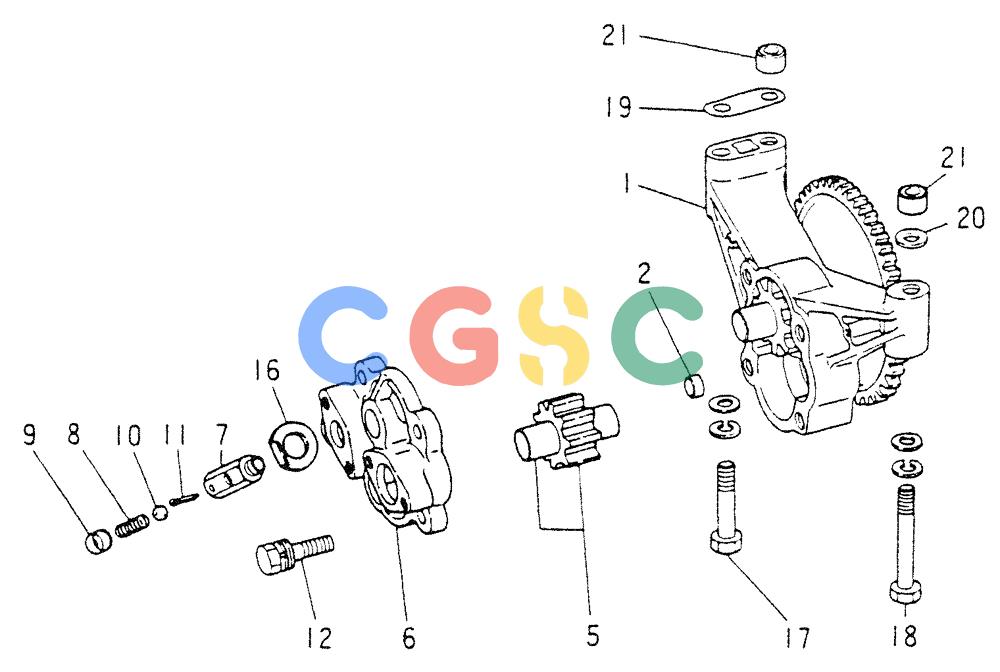

| 1-16. | VAME034501 | [1] | PUMP | KOBOIL PUMP ASSY (FOR M0 ONLY) Superseded by part number: VAME034720 |
| . . | VAME034500 | [1] | OIL PUMP ASSY FOR M1 ONLY | |
| 1-2. | VAME034503 | [1] | CASE ASSY. OIL PUMP GEAR & CASE ASSY (FOR M0 ONLY) | CASE ASSY. OIL PUMP GEAR & CASE ASSY (FOR M0 ONLY) |
| . . | VAME034502 | [1] | OIL PUMP GEAR & CASE ASSY (FOR M1 ONLY) | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR & CASE,0/PUMP |
| 2. | VAME034502 | [2] | PIN,D0WEL | |
| 5. | VAME034090 | [1] | GEAR DRIVEN GEAR ASSY | GEAR DRIVEN GEAR ASSY |
| 6. | VAME034064 | [1] | COVER COVER,O/PUMP CASE | COVER COVER,O/PUMP CASE |
| 7-11. | VAME034061 | [1] | HYDRAULIC VALVE | KOBVALVE ASSY |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCASE,VALVE |
| 8. | VAME034013 | [1] | SPRING | KOBSPRING |
| 9. | VAME034014 | [1] | SEAT SEAT, SPG | SEAT SEAT, SPG |
| 10. | VAMF540014 | [1] | BALL BALL,STEEL 14 | BALL BALL,STEEL 14 |
| 11. | VAMF472085 | [1] | PIN | KOBPIN,SPLIT 4X30 |
| 12. | VAMF303367 | [4] | BOLT | SMBOLT,W/WSR 10X35 |
| 16. | VAME034063 | [1] | WASHER | KOBWASHER,LOCK |
| 17. | VAMF130575 | [1] | BOLT BOLT 10X55 (FOR M0 ONLY) | BOLT BOLT 10X55 (FOR M0 ONLY) |
| 17. | VAMF130577 | [1] | BOLT BOLT 10x65 (FOR M1 ONLY) | BOLT BOLT 10x65 (FOR M1 ONLY) |
| . . | VAMF450406 | [1] | WASHER | KOBWASHER,SPG 10 |
| . . | VAMF450006 | [1] | NUT | KOBWASHER,PLAIN 10 Superseded by part number: 133247A1 |
| 18. | VAMF130577 | [2] | BOLT BOLT 10X65 (FOR M0 ONLY) | BOLT BOLT 10X65 (FOR M0 ONLY) |
| 18. | VAMF130579 | [2] | BOLT 10X75 (FOR M1 ONLY) | |
| 19. | VAME034281 | [1] | SHIM | KOBSHIM RH T=0.1 |
| 19. | VAME0342S2 | [1] | SHIM RH T=0.2 | |
| 20. | VAME034283 | [1] | SHIM | KOBSHIM LH T=0.1 |
| 20. | VAME034284 | [1] | SHIM | KOBSHIM LH T=0.2 |
| 21. | VAME031099 | [2] | PIN | KOBPIN,DOWEL |
