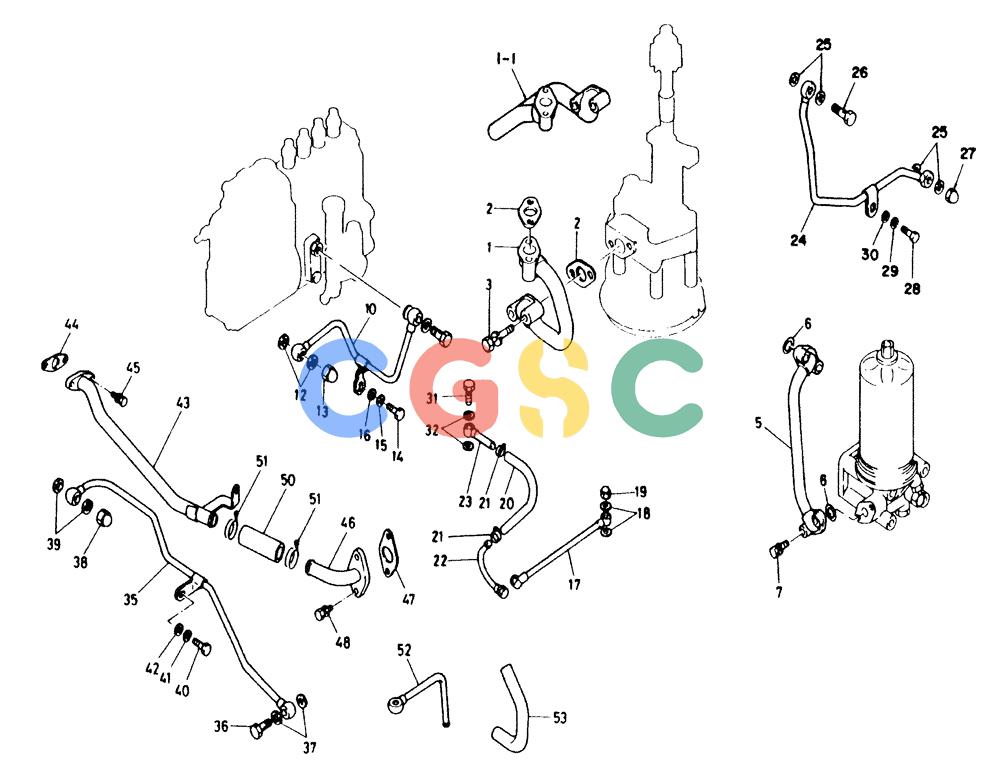

神钢零件查询(4BD1) - ISUZU DIESEL ENGINE - K904 MARK II EXCAVATORS (1/06-12/07) (01-010) - OIL PUMP AND FIXING PARTS Kobelco

Pos.	Part No	Qty	Parts name	Comments
1.	VI9133146621	[1]	PIPE ASM, OIL, OIL PUMP
1-1.	VI5133112591	[1]	PIPE ASM, OIL, OIL PUMP
1-2.	VI8941310600	[1]	PIPE ASM, OIL PUMP
2.	VI9099211880	[2]	O-RING	KOBPACKING, OIL PIPE
3.	VI9019108400	[4]	BOLT, SEMS, OIL PIPE FIX. (-80-4)
3.	VI9019708450	[4]	SPECIAL BOLT	KOBBOLT, SEMS, OIL PIPE FIX. Superseded by part number: VI0108058450
5.	VI5133111080	[1]	PIPE ASM, OIL FILTER, Serial Range: -E902318
5.	VI5133112451	[1]	PIPE ASM, OIL FILTER
5-2.	VI8941329991	[1]	PIPE ASM, FILTER-COOLER
5-3.	VI8944017852	[1]	PIPE	KOBPIPE ASM, FILTER-COOLER
6.	VI9097205480	[2]	GASKET	KOBPACKING, OIL PIPE, O-RING Superseded by part number: VI1096231300
7.	VI9019108350	[2]	BOLT, OIL PIPE
7-1.	VI9019108400	[2]	BOLT, OIL PIPE
7-2.	VI9019108350	[1]	BOLT, OIL PIPE
7-3.	VI9019108320	[2]	BOLT, SEMS, OIL PIPE FIX.
8.	VI8944052711	[1]	FLANGE
10.	VI5133110070	[1]	OIL PIPE PIPE ASM, OIL INJ.	OIL PIPE PIPE ASM, OIL INJ.
10-1.	VI8941751420	[1]	PIPE ASM, OIL INJ.
10-2.	VI8944284630	[1]	PIPE ASM, OIL INJ.
12.	VI9095720100	[2]	SEAL	KOBPACKING, COMMET, CAP NUT
13.	VI9098440220	[1]	NUT	KOBNUT CAP
14.	VI9020510200	[1]	BOLT, CLIP FIX
15.	VI9091505100	[1]	WASHER	KOBWASHER, SPR Superseded by part number: VI1099853450
16.	VI9091605100	[1]	WASHER	KOBWASHER, PL Superseded by part number: VI0916105100
17-1.	VI5133111980	[1]	PIPE ASM, OIL VACUUM PUMP
18.	VI9095720100	[2]	SEAL	KOBPACKING
19.	VI9098440220	[1]	NUT	KOBNUT, CAP
20-1.	VI5093606211	[1]	HOSE, RUBBER
21.	VI5097040271	[2]	CLIP, HOSE
22-1.	VI5133111970	[1]	PIPE ASM, OIL VACUUM PUMP
23.	VI5133110850	[1]	PIPE ASM, OIL VACUUM PUMP
24.	VI8941327370	[1]	PIPE ASM, OIL CRANK CASE
24-1.	VI8941761930	[1]	PIPE ASM, OIL CRANK CASE
25.	VI9095720100	[4]	SEAL	KOBPACKING, OIL PIPE
25-1.	VI9095720100	[2]	SEAL	KOBPACKING, OIL PIPE
26.	VI9099061731	[1]	EYEBOLT	KOBBOLT, JOINT Superseded by part number: VI1096750780
27.	VI9098440220	[1]	NUT	KOBNUT, CAP
28.	VI9020508160	[1]	SCREW	KOBBOLT, CLIP, OIL PIPE Superseded by part number: 0208008160
29.	VI9091505080	[1]	WASHER	KOBWASHER, SPR Superseded by part number: VI0915105080
30.	VI9091605080	[1]	WASHER	KOBWASHER, PL.
31.	VI9099063251	[1]	BOLT	KOBBOLT, EYE Superseded by part number: 87596570
32.	VI9095720140	[2]	PACKING	KOBPACKING, EYE BOLT
35.	VI5133113060	[1]	PIPE ASM, OIL, TURBO FEED
35.	VI8944042452	[1]	PIPE ASM, OIL, TURBO FEED
35-1.	VI8944017840	[1]	PIPE ASM, OIL, TURBO FEED
36.	VI8941077131	[1]	SCREW	KOBBOLT, JOINT Superseded by part number: 8941077131
37.	VI9095714100	[2]	SEAL	KOBPACKING, JOINT BOLT
38.	VI9098440220	[1]	NUT	KOBNUT, CAP
39.	VI9095720100	[2]	SEAL	KOBPACKING, CAP NUT
40.	VI9020508160	[1]	SCREW	KOBBOLT Superseded by part number: 0208008160
41.	VI9091505080	[1]	WASHER	KOBWASHER, SPR Superseded by part number: VI0915105080
42.	VI9091605080	[1]	WASHER	KOBWASHER, PL
43.	VI5133113070	[1]	PIPE ASM, OIL, TURBO DRAIN
43.	VI8944042460	[1]	RIGID TUBE	KOBPIPE ASM, OIL, TURBO DRAIN Superseded by part number: 8944042460
43-1.	VI8944017860	[1]	PIPE ASM, OIL, TURBO DRAIN
44.	VI5144290092	[1]	SEAL KIT	KOBPACKING, OIL PIPE, TURBO Superseded by part number: 5144290092
45.	VI9019106180	[2]	BOIT, SEMS, OIL PIPE
46.	VI5133113080	[1]	PIPE ASM, OIL, TURBO DRAIN
47.	VI1096370460	[1]	O-RING	KOBPACKING, OIL PIPE
47-1.	VI8941077150	[1]	O-RING	KOBPACKING, OIL PIPE Superseded by part number: 8941077150
48.	VI9019108180	[2]	SCREW	KOBBOIT, SEMS, OIL PIPE
50.	VI5093609601	[1]	HOSE, RUBBER, OIL DRAIN
50-1.	VI1093600430	[1]	HOSE, RUBBER, OIL DRAIN
51.	VI9099150671	[2]	CUP, RUBBER HOSE
51-1.	VI1097040330	[2]	CLIP	KOBCUP, RUBER HOSE Superseded by part number: VI8941759400
52.	VI5474312480	[1]	PIPE ASM, VACUUM
53.	VI5093610730	[1]	HOSE, RUBBER VACUUM PUMP
54.	VI5096540130	[1]	LUBE NIPPLE	KOBNIPPLE, TURBO, OIL FEED Superseded by part number: VI5096600330
55.	VI8941723100	[1]	CLIP, OIL PIPE
56.	VI5123790010	[1]	BRACKET	KOBSPACER, CLIP, OIL PIPE
56-1.	VI5095031360	[1]	SPACER	KOBSPACER, CLIP, OIL PIPE
57.	VI9920414300	[1]	BOLT, CUP
57.	VI9019810220	[1]	BOLT, CLIP FIX.
58.	VI9091505140	[1]	WASHER	KOBWASHER, SPR. Superseded by part number: VI9091506140
59.	VI9091605140	[1]	WASHER	KOBWASHER, PL.
60.	VI9092318100	[1]	CONNECTION	KOBCONNECTOR Superseded by part number: VI0921218100
61.	VI8941077130	[1]	BOLT, JOINT
62.	VI9095714100	[2]	SEAL	KOBPACKING
63.	VI9020508180	[1]	BOLT, CLIP
64.	VI9091505080	[1]	WASHER	KOBWASHER, SPR. Superseded by part number: VI0915105080
65.	VI9091805080	[1]	WASHER, PL.
